• ANSI/TIA 568.2-D

• ISO/IEC 11801

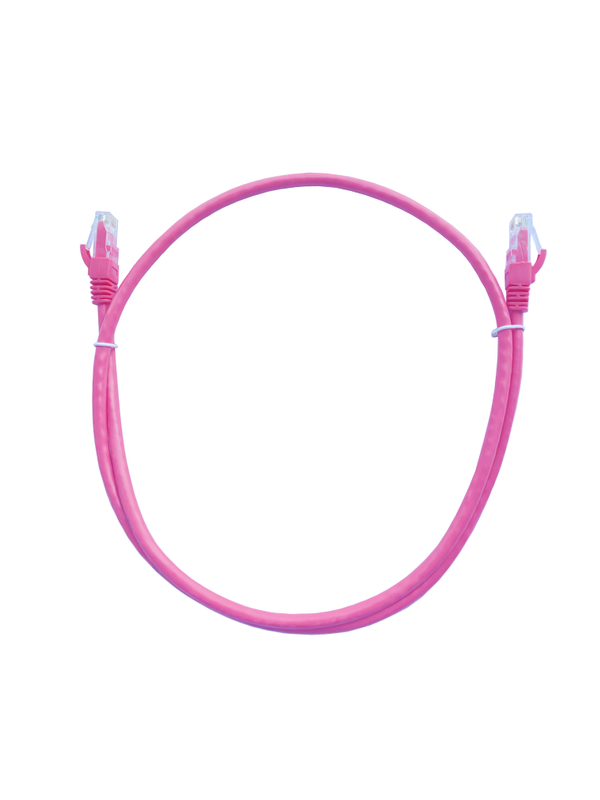

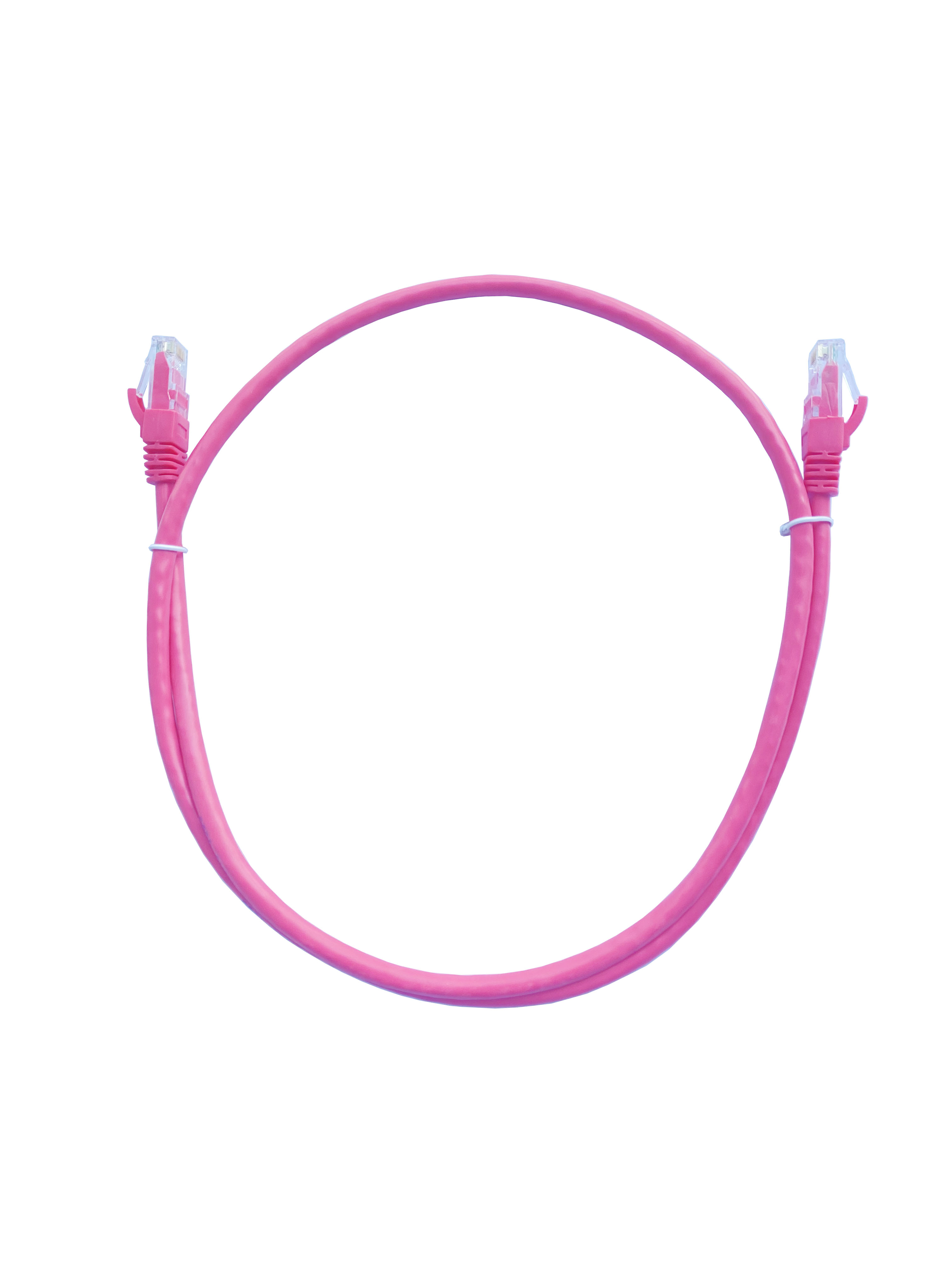

ZORA Cat 6A Unshielded Patch Cords Features

1Sheath: Gradual type force principle of rubberized sheath, anti-slip and anti-stretch, to ensure the bending radius;

2The jumper cable adopts multi-strand conductor cable, avoiding the breakage phenomenon during repeated plugging and unplugging in the process of using;

3Multiple patch cables: provide different colors and lengths of patch cables to meet the different needs of customers;

4Completely tested to meet ANSI/TIA-568-2.D Cat.6A requirements;

5All colors meet TIA/EIA-606 standard specification.

Ordering Information
Product Number	Product Name	Outer sheath	Color	Length Qty	Qty / CTN
ZRJ3001	Cat.6A 4 Pair F/UTP jumpers	PVC	Light pink	1 m	70
ZRJ3002	Cat.6A 4 Pair F/UTP jumpers	PVC	Light pink	2 m	50
ZRJ3003	Cat.6A 4 Pair F/UTP jumpers	PVC	Light pink	3 m	40
ZRJ3005	Cat.6A 4 Pair F/UTP jumpers	PVC	Light pink	5 m	30

Jumper color and length can be customized according to customer requirements

Technical Specifications

Cable Construction
Conductor
Material	Stranded Anneal Copper Wire
Wire Size	24AWG
Insulation
Material	PE
Thickness	Nom. 0.59mm
Diameter	1.00 ± 0.03mm
Colors	Blue/White-Blue | Orange/White-Orange | Green/White-Green | Brown/White-Brown
Jacket
Material	PVC or LSZH optional
Thickness	Nom. 0.59mm
Diameter	6.0±0.2mm
Jacket Colors	Available in multiple colors and customizable
Flame rating	CM Style
Maximum Tensile Strength	1.05 kg/mm2

RJ45 Socket
Housing	PC
Contact Material	Copper alloy 50u” gold plated over nickel
Strength	20lbs. min
Durability	750 cycles min.
Boots	Molded boots prevent pin from bending and cables from kink

Electrical
Impedance	93.8Ω ± 15 Ω
Capacitance unbalance pair to ground	max. 330pf/100m Max
D.C.R (Max.)	14.8 ohm/100m at 20℃
DC Insulation Resistance	1500MΩ/100m
Resistance unbalance	3% MAX./100m

1: What is ZORA Cat 6A Unshielded Patch Cord?

 This is a Category 6A Unshielded (UTP) patch cable supporting 10Gbps Ethernet. Its twisted-pair design minimizes crosstalk, ideal for offices, homes, and low-EMI server rooms.

2: What are the maximum speed and distance?

Supports 10GBASE-T (10Gbps) up to 100 meters. For shorter runs (≤50m), it ensures higher bandwidth stability and backward compatibility with 2.5G/5G networks.

3: Does it require grounding or special installation?

 No grounding needed. Follow T568A/B wiring standards and limit untwisting of pairs to ≤13mm during termination for optimal performance.

4: Can it work with shielded devices/patch panels?

 Physically compatible, but mixing with shielded components negates EMI protection. Use end-to-end shielded or unshielded systems for best results.

5: How to verify compliance?

 Use cable testers to check continuity. Professional tools (e.g., Fluke DSX-8000) validate RL, NEXT, and compliance with ANSI/TIA-568.2-D standards.

6: How does it differ from non-Cat 6A cables?

 Compared to Cat 6 (250MHz), Cat 6A offers 500MHz bandwidth, thicker jackets to reduce ANEXT, and optimized for 10Gbps over 100m.
