ZRJ1001
ZORA
Product Description
ANSI/TIA 568.2-D
ISO/IEC 11801
1Sheath: Gradient type force principle of rubberized sheath, anti-slip and anti-stretch, to ensure that the bending radius;
2Jumper cable adopts multi-strand conductor cable, avoiding the breakage phenomenon of repeated plugging and unplugging in the process of using;
3Multiple patch cables: different colors and lengths of patch cables are available to meet the different needs of customers;
4After complete testing meets ANSI/TIA-568-2.D Cat.5e requirements;
5Multiple colors meet TIA/EIA-606 specifications.
| Ordering Information | |||||
|---|---|---|---|---|---|
Product Number | Product Name | Outer sheath | Color | Length Qty | Configuration |

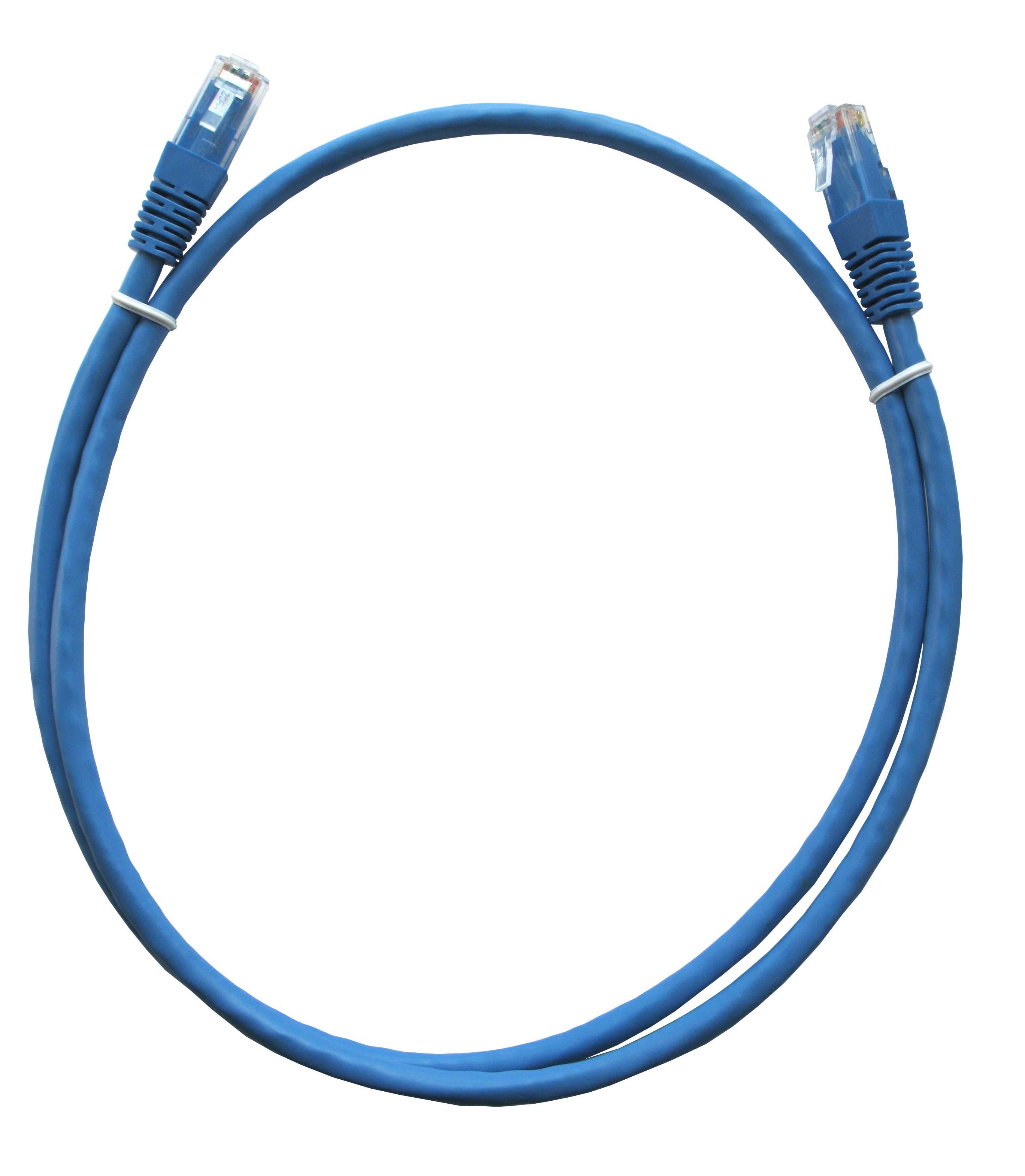

ZRJ1001 | Cat.5e U/UTP Patch Cord | PVC | Blue | 1.0m | T568B |
ZRJ1002 | Cat.5e U/UTP Patch Cord | PVC | Blue | 2.0m | T568B |
ZRJ1003 | Cat.5e U/UTP Patch Cord | PVC | Blue | 3.0m | T568B |
Jumper color and length can be customized according to customer requirements
Cable Construction | |
Conductor | |
| Material | Stranded Anneal Copper Wire |
Wire Size | 24AWG |
| Insulation | |
Material | PE |
Thickness | min AVG 0.18mm |
Diameter | 0.97mm |
Colors | Blue/White-Blue | Orange/White-Orange | Green/White-Green | Brown/White-Brown |
Jacket | |
Material | PVC or LSZH optional |
Thickness | 0.59mm |
Diameter | 5.50±0.2mm |
Jacket Colors | Available in multiple colors and customizable |
Flame rating | CM Style |
RJ45 Socket | |
Housing | PC |
Contact Material | Copper alloy 50u” gold plated over nickel |
Strength | 20lbs. min |
Durability | 750 cycles min. |
Boots | Molded boots prevent pin from bending and cables from kink |
Electrical | |
Impedance | 93.8Ω ± 15 Ω |
Capacitance unbalance pair to ground | max. 330pf/100m Max |
D.C.R (Max.) | Rated value 14.8 ohm/100m at 20°C |
DC Insulation Resistance | 1500MΩ/100m min. |
| Dielectric Strength | AC-500V/1 Min |
ZORA Cat 5e Unshielded Patch Cords FAQ
This is an unshielded Category 5e (CAT5e) patch cable designed for general network environments without electromagnetic interference (EMI). Its twisted-pair structure minimizes crosstalk, making it ideal for homes, offices, or low-interference settings.
Under standard conditions, CAT5e unshielded cables support Gigabit Ethernet (1000Mbps) up to 100 meters. Shorter distances (e.g., <30m) may support higher bandwidths, depending on cable quality and device compatibility.
No grounding is needed. Ensure correct wiring (e.g., 568A/B) and limit untwisting of pairs to ≤12mm to maintain interference resistance.
Yes, but mixed use may reduce performance. For shielded ports, shielded cables are recommended for optimal results.
ZORA uses oxygen-free copper (OFC) cores for low resistance and minimal signal loss, outperforming copper-clad aluminum. The flame-retardant PVC/PE jacket ensures durability.
Use a cable tester to confirm all 8 conductors are connected. Professional tools (e.g., Fluke) can evaluate crosstalk and return loss. For handmade cables, check RJ45 connector quality to avoid poor contact.
Most homes do not require shielded cables. Unshielded CAT5e suffices for Gigabit networks. Consider shielded versions only near high EMI sources (e.g., motors).
Potential causes include incorrect wiring, faulty connectors, excessive length, or poor cable quality. Solutions: re-crimp connectors, shorten cables, or use higher-quality cables.
