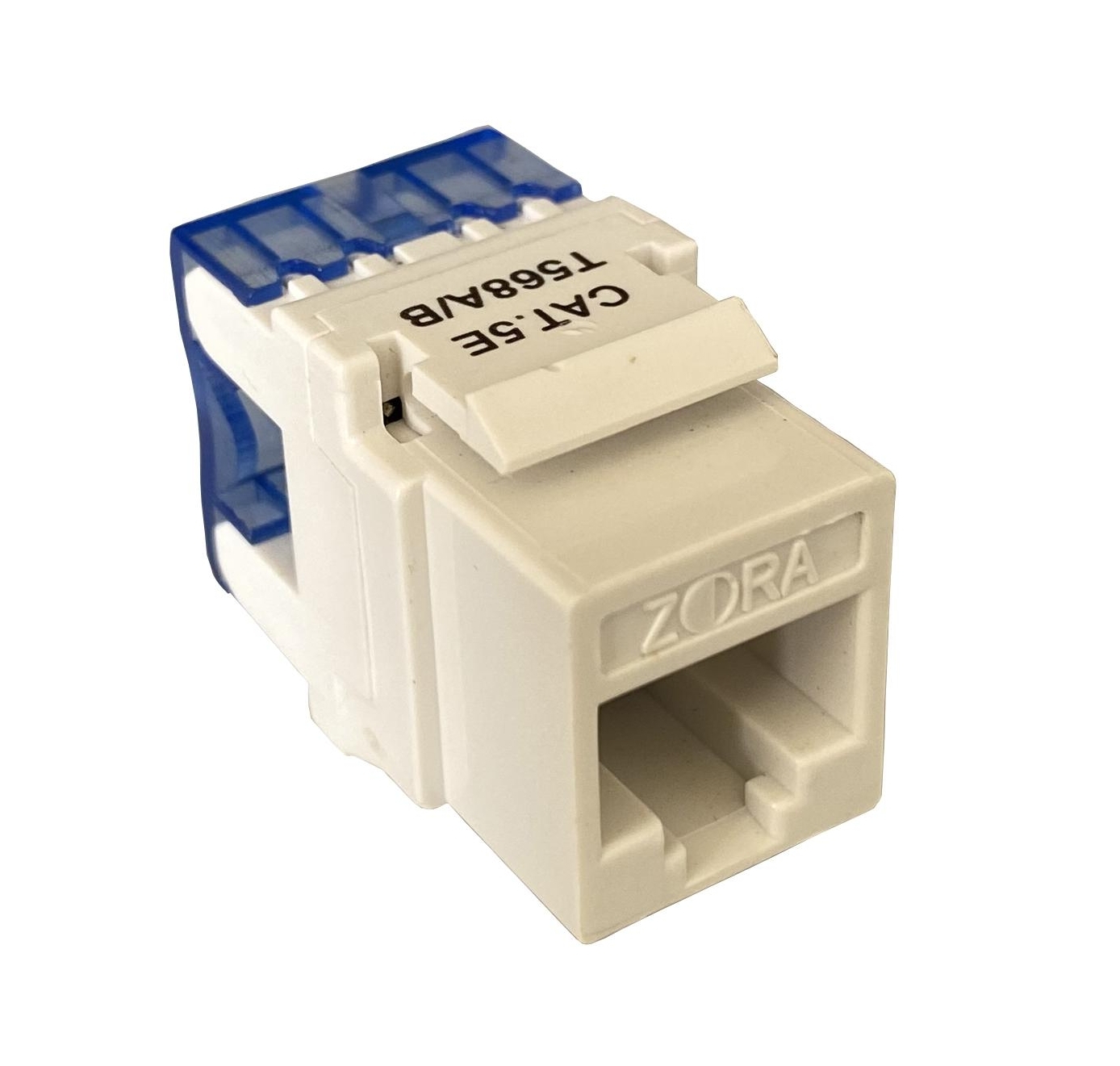

ZORA Cat 5e Unshielded Module

ZORA Cat 5e unshielded modules are used in data network communication, telecommunication room, with information outlet panel or desktop box, etc. in the work area.

Model:
ZRM1012
Brand:
ZORA

Availability:



Inquire

Product Description

ZORA Cat 5e Unshielded Module Description

ZORA Cat 5e unshielded modules are used in data network communication, telecommunication room, with information outlet panel or desktop box, etc. in the work area.

Standards Compliance

ANSI/TIA 568.2-D
ISO/IEC 11801

ZORA Cat 5e unshielded module Features

1Shell material: the use of first-class PC plastic, impact resistance, anti-vandalism ability;

2Socket 8PIN adopts gold-plated phosphor bronze gold wire, unique three-layer S-shaped gold wire interleaved structure, effectively reduce the crosstalk of wire pairs, improve link performance;

3Bandwidth: 100MHz;

4Wire base IDC adopts 180 degree slant terminal structure to ensure a more stable card connection;

5Module for A, B line sequence common, easy to use for users.

Ordering Information
Product Number	Product Name	Color	Qty / Box	Qty / CTN
ZRM1012	Cat 5e Unshielded Module	White/Blue	100	600

Technical Specifications

Construction
Body
Connector Housing	High-impact, Flame Retardant Plastic
Standard	UL94V-0 rated
Front Connection
Contact Type	Spring Wire
Material	Phosphor Bronze Alloy
Contact Plating	Nickel plated 100μinch, then gold plated 50μinch
Rear Terminals
Terminal Type	IDC
Material	Phosphor Bronze Alloy with 100 micro-inch 100% Sn Alloy

Physical Ranges
Temperature Range	Storage -40℃～+70℃, working -10℃～+60℃.
Relative Humidity	Operational : Max. non-condensing 93%
Insertion/Extraction Life	750
No. of IDC Terminations	200
Insertion/Extraction Strength	800grams
Retention	50N (11 Ibs) for 60s ± 5s

Electrical
Insulation Resistance	500 MΩ min.@ 100V d.c
Dielectric strength (core-to-core, 1 min DC)	1kV
Flexible wire contact resistance	20 mΩ max.
Rated voltage/current	150VAC/1.5A
IDC Contact Resistance	2.5 mΩ max.

ZORA Cat 5e Unshielded Module FAQ

1.How to Properly Install ZORA Cat 5e Unshielded Module？

Use a punch-down tool to insert cables into color-coded slots following T568A/B wiring. Close the cover after audible "click" to ensure conductor penetration‌.
