ZRC50SM-4
ZORA
Product Description
Number of fiber cores: 4 to 24 core
Extremely flexible compact buffer protective layer design
ATM, FDDI, Fiber Channel performance guarantee
As a reinforcement material, aramid fiber has excellent tensile strength
Anti-corrosion, waterproof, anti-ultraviolet radiation, has the advantages of environmental protection
Indoor Integrated Cabling- Between buildings
Date Centers
Ideal for any indoor cabling needs
ANSI/TIA 568-2.D
ISO/IEC11801 / CENELEC EN 50173
IEC60794-1 /ROHS
Ordering information | ||
Product number | Product name | Packing specification |

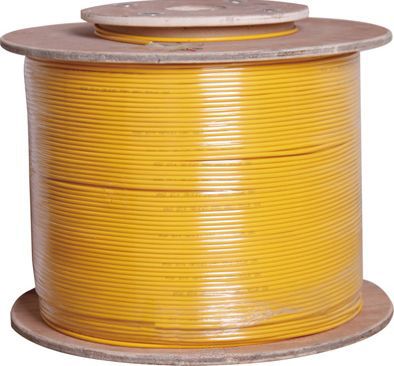

ZRC50SM-4 | ZORA 4-core indoor OS2 fiber optic cable | 2 km/roll |
ZRC50SM-6 | ZORA 6-core indoor OS2 fiber optic cable | 2 km/roll |
ZRC50SM-8 | ZORA 8-core indoor OS2 fiber optic cable | 2 km/roll |
ZRC50SM-12 | ZORA 12-core indoor OS2 fiber optic cable | 2 km/roll |
ZRC50SM-24 | ZORA 24-core indoor OS2 fiber optic cable | 2 km/roll |
Color Configuration | ||||||
Fiber color - First set of 12 cores | ||||||
Class Number | 1 | 2 | 3 | 4 | 5 | 6 |
Color | Blue | Orange | Green | Brown | Gray | White |
Class Number | 7 | 8 | 9 | 10 | 11 | 12 |
Color | Red | Black | Yellow | Purpel | Pink | Navy Blue |
| |

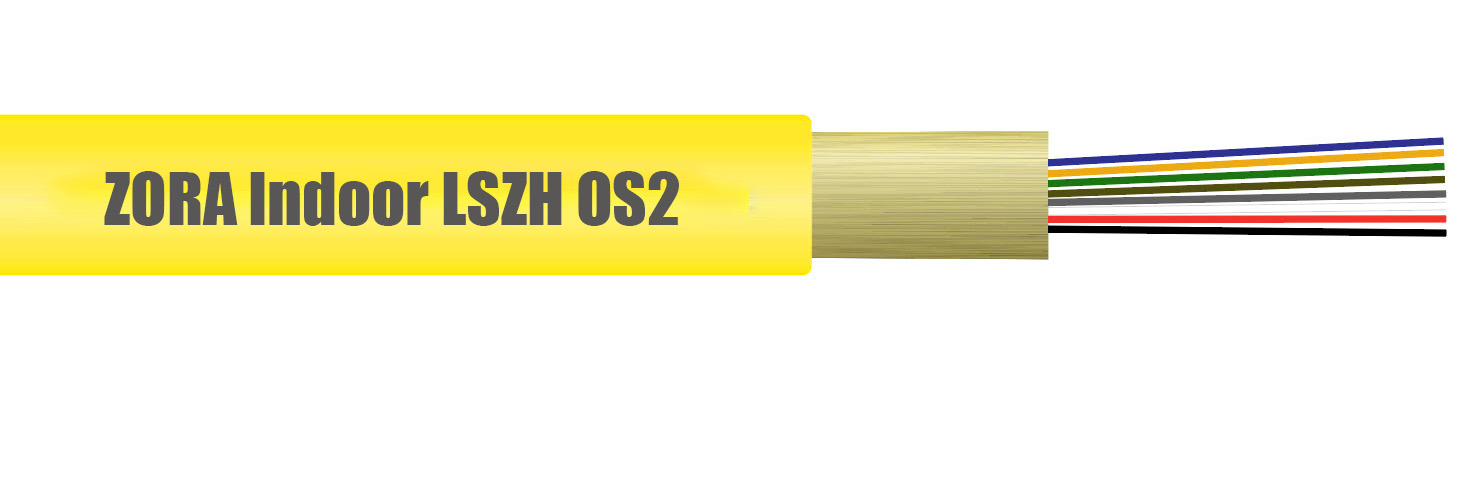

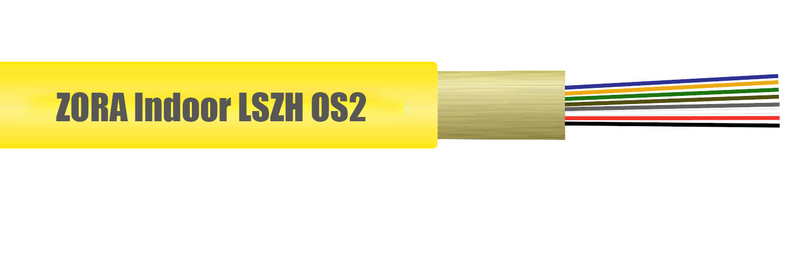

Structure | |
Jacket and cushioned protective layer | |
| Jacket material | Low smoke non-toxic |
| Cable reinforcement material | Aramid fibre |
| Main buffer layer | compact buffer | 250 microns ± 5 microns | 900 microns ± 50 microns Fiber size |
| Fiber size | 9/125 microns |
Technical data - Mechanical | |
Maximum tensile strength (IEC794-1) | |
Install | 660N |
| Haulage | 220N |
| Compressive strength | 1000N / 100mm |
| Minimum bending radius (IEC794-1) | |
| Mount | 20 x diameter |
| Haulage | 10 x diameter |
Operating Temperature | |
| Mount | -20℃ ~ +60℃ |
| Haulage | -20℃ ~ +60℃ |
Technical data - Physics | ||||||
| Fiber core number | 2 | 4 | 6 | 8 | 12 | 24 |
| Cable diameter (mm) | 4.0±0.20 | 4.8±0.25 | 5.1±0.25 | 5.6±0.25 | 6.2±0.25 | 8.1±0.30 |
| Cable weight (kg/km) | About equal to 14 | About equal to 20 | About equal to 23 | About equal to 30.8 | About equal to 37 | About equal to 59.9 |
Technical Data - Transmission | ||||||||||||
Fiber type | Wane | OFL Bandwidth | Effective modal bandwidth | 10G Ethernet SX | Minimum Bending Radius | |||||||
Conditions | 1310/1500 nm | 850/1300 nm |
| 850 nm | 850nm | |||||||
Normal | Maximum | Normal | Maximum | |||||||||
Single Bit | dB/kilometers | dB/kilometers | dB/kilometers | dB/kilometers | MHz/kilometers | MHz/kilometers | M | MM | ||||
G652D | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 16 | ||||
G657A1 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 10 | ||||
G657A2 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 7.5 | ||||
50/125 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥500/500 | --- | --- | 30 | ||||
62.5/125 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥200/500 | --- | --- | 30 | ||||
OM3 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000 | ≤300 | 30 | ||||
OM4 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥4700 | ≤550 | 30 | ||||
BI-OM3 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000 | ≤300 | 7.5 | ||||
BI-OM4 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥4700 | ≤550 | 7.5 | ||||
ZORA Indoor OS2 Fiber Optic Cable FAQ

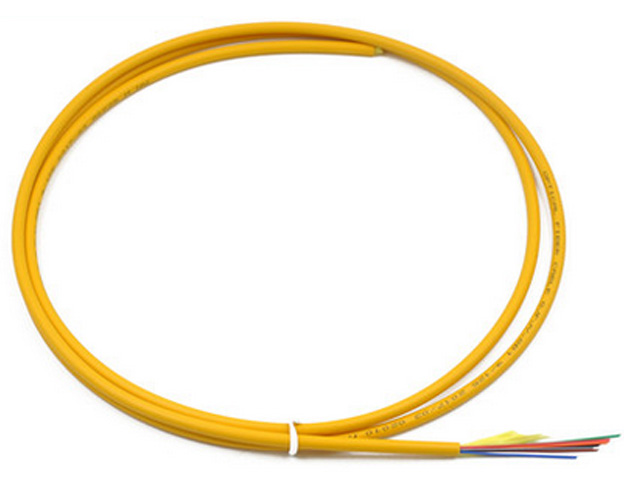

Indoor OS2 Fiber Optic Cable is a single mode fiber optic cable designed for use in indoor environments. It uses a 9/125-micron core/cladding structure, which is suitable for long-distance, high-bandwidth data transmission, typically supporting 1G/10G/40G or even 100G network speeds.
Indoor OS2 cables are usually of tight-buffered construction, suitable for indoor use, soft and easy to install. Outdoor OS2 cables are mostly loose-tube designs, which are resistant to moisture and ultraviolet light and 5.suitable for outdoor environments.
At 1310 nm wavelength, the maximum transmission distance of Indoor OS2 cable can usually reach 10 km; At a wavelength of 1550 nanometers, it can reach 40 kilometers. The exact distance depends on the device and network configuration.
It is suitable for data centers, enterprise campus networks, telecommunication switching rooms and other indoor scenarios that require high-speed and long-distance transmission.
Indoor OS2 cables have a typical attenuation value of 0.4 dB/km (1310 nm and 1550 nm), which is lower than OS1 (1.0 dB/km) and less signal loss.
Common connectors include LC, SC, ST, etc. The choice depends on your device interface. LC is often used in high-density environments due to its small size, while SC and ST are more common in traditional devices. Confirm based on actual requirements.
