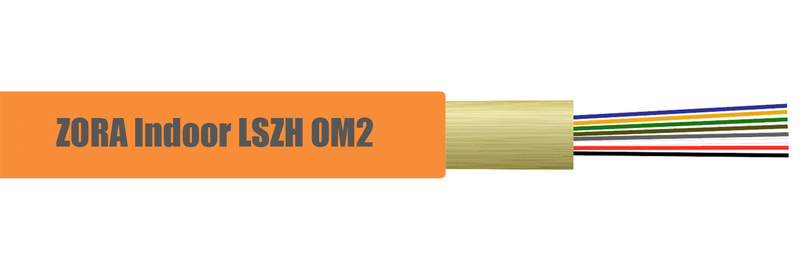

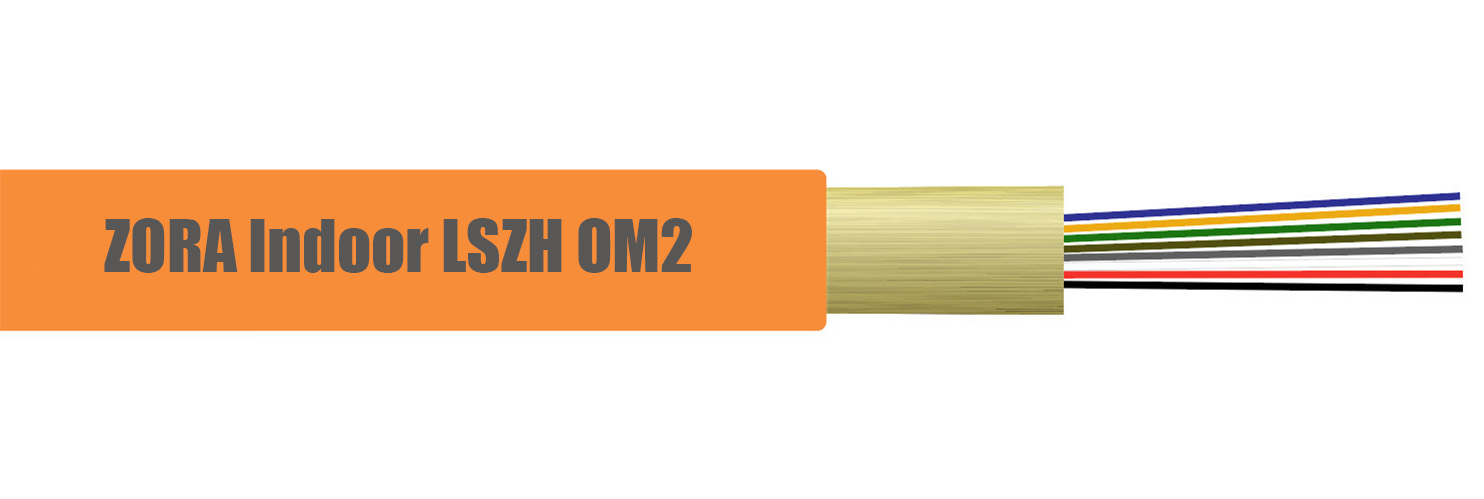

ZRC52NW-4
ZORA
Product Description
Number of fiber cores: 4-24 core
Extremely flexible compact buffer protective layer design
ATM, FDDI, Fiber Channel performance guarantee
As a reinforcing material, aramid fiber has excellent tensile strength
The skin is anti-corrosion, waterproof, anti-ultraviolet radiation, and has the advantages of environmental protection
Between buildings
core network
Drop ceiling
10Gbps 40 / 100Gbps Ethernet
550MHz broadband video
Storage Local Area Network (SAN), data center
Suitable for any indoor wiring needs
ANSI/TIA 568-2.D
ISO/IEC11801 / CENELEC EN 50173
IEC60794-1 / IEC60332-3C
Ordering information | ||
Product number | Product name | Packing specification |
ZRC52NW-4 | ZORA 4-core indoor OM2 fiber optic cable | 2 km/roll |
ZRC52NW-6 | ZORA 6-core indoor OM2 fiber optic cable | 2 km/roll |
ZRC52NW-8 | ZORA 8-core indoor OM2 fiber optic cable | 2 km/roll |
ZRC52NW-12 | ZORA 12-core indoor OM2 fiber optic cable | 2 km/roll |
ZRC52NW-24 | ZORA 24-core indoor OM2 fiber optic cable | 2 km/roll |
Color Configuration | ||||||
Fiber color - First set of 12 cores | ||||||
Class Number | 1 | 2 | 3 | 4 | 5 | 6 |
Color | Blue | Orange | Green | Brown | Gray | White |
Class Number | 7 | 8 | 9 | 10 | 11 | 12 |
Color | Red | Black | Yellow | Purpel | Pink | Navy Blue |
| |

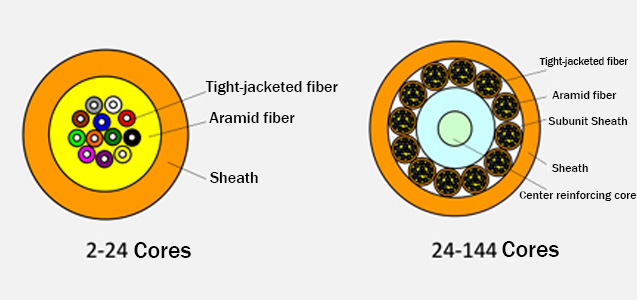

| Structure | |
| Jacket and cushioned protective layer | |
| Jacket material | Low smoke non-toxic |
| Cable reinforcement material | Aramid fibre |
| Main buffer layer | compact buffer | 250 microns ± 5 microns | 900 microns ± 50 microns Fiber size |
| Fiber size | 9/125 microns |
Technical data - Mechanical | |
| Maximum tensile strength (IEC794-1) | |
Install | 660N |
| Haulage | 220N |
| Compressive strength | 1000N / 100mm |
Minimum bending radius (IEC794-1) | |
| Mount | 20 x diameter |
Haulage | 10 x diameter |
Operating Temperature | |
| Mount | -20℃ ~ +60℃ |
| Haulage | -20℃ ~ +60℃ |
Technical data - Physics | ||||||
| Fiber core number | 2 | 4 | 6 | 8 | 12 | 24 |
| Cable diameter (mm) | 4.0±0.20 | 4.8±0.25 | 5.1±0.25 | 5.6±0.25 | 6.2±0.25 | 8.1±0.30 |
| Cable weight (kg/km) | About equal to 14 | About equal to 20 | About equal to 23 | About equal to 30.8 | About equal to 37 | About equal to 59.9 |
Technical Data - Transmission | ||||||||||||
Fiber type | Wane | OFL Bandwidth | Effective modal bandwidth | 10G Ethernet SX | Minimum Bending Radius | |||||||
Conditions | 1310/1500 nm | 850/1300 nm |
| 850 nm | 850nm | |||||||
Normal | Maximum | Normal | Maximum | |||||||||
Single Bit | dB/kilometers | dB/kilometers | dB/kilometers | dB/kilometers | MHz/kilometers | MHz/kilometers | M | MM | ||||
G652D | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 16 | ||||
G657A1 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 10 | ||||
G657A2 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 7.5 | ||||
50/125 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥500/500 | --- | --- | 30 | ||||
62.5/125 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥200/500 | --- | --- | 30 | ||||
OM3 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000 | ≤300 | 30 | ||||
OM4 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥4700 | ≤550 | 30 | ||||
BI-OM3 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000 | ≤300 | 7.5 | ||||
BI-OM4 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥4700 | ≤550 | 7.5 | ||||
ZORA Indoor OM2 Fiber Optic Cable FAQ
It supports up to 10 Gigabits per second (10 Gbps) using the 10GBASE-SR standard, but only up to 82 meters. For 1 Gbps, it can handle the full 150-meter length.
It uses OM2 multimode fiber with a 50 µm core and 125 µm cladding (50/125 µm), designed for short-range applications.
No, it’s designed for indoor use only. It lacks the weatherproofing and durability features needed for outdoor environments.
