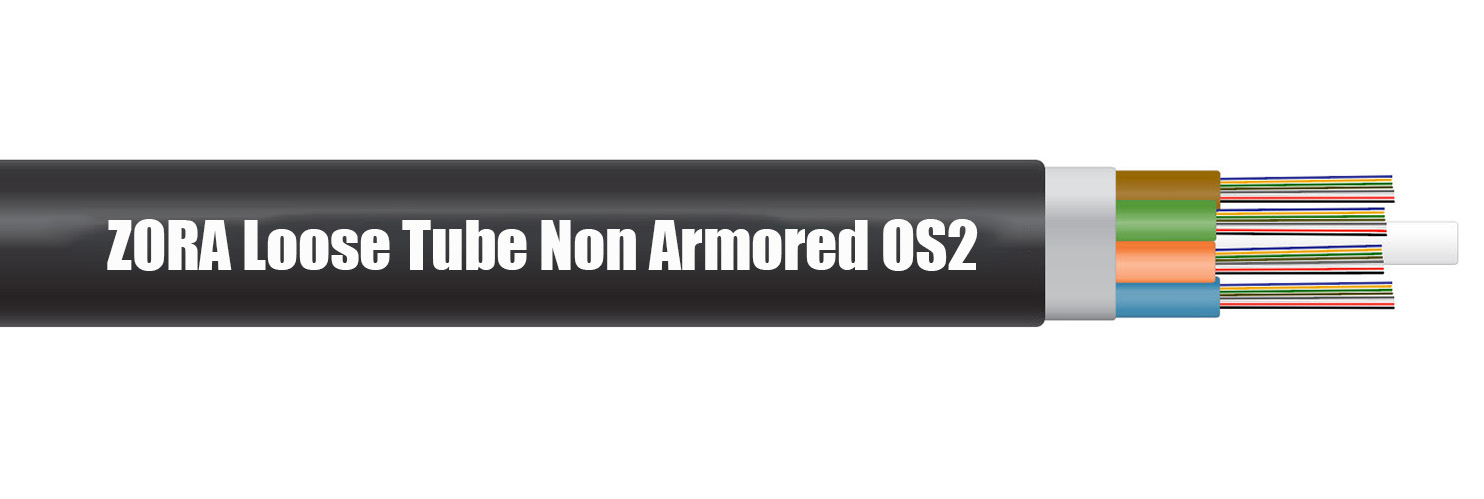

ZRC51SM-6
ZORA
Product Description
06~144 cores
Loose tube design
The outer material is PE
Good mechanical and temperature properties
High strength loose tube sleeve, hydrolysis resistant
Pressure resistance and flexibility
Special tube fillers provide critical protection
Duct/Aerial
Outdoor application
As the backbone network of LAN, MAN, WAN
10Gbps 40/100Gbps Ethernet network
Storage Local Area Network (SAN), data center
Bellcore GR-20-CORE
ISO/IEC11801
ANSI/TIA 568-2.D
CENELEC EN 50173
IEC60794-1
Ordering information | ||
Product number | Product name | Packing specification |
ZRC51SM-6 | ZORA 6-core outdoor OS2 loose tube fiber optic cable | 2 km/roll |
ZRC51SM-8 | ZORA 8-core outdoor OS2 loose tube fiber optic cable | 2 km/roll |
ZRC51SM-12 | ZORA 12-core outdoor OS2 loose tube fiber optic cable | 2 km/roll |
ZRC51SM-24 | ZORA 24-core outdoor OS2 loose tube fiber optic cable | 2 km/roll |
ZRC51SM-48 | ZORA 48-core outdoor OS2 loose tube fiber optic cable | 2 km/roll |
| ZRC51SM-96 | ZORA 96-core outdoor OS2 loose tube fiber optic cable | 2 km/roll |
Technical specifications | |
Structure | |
Outer Jacket | |
Jacket material | HDPE |
| The average coat thickness | Averages 1.8 mm |
The internal strength consists | FRP |
| Cable reinforcement material (metal armor) | NO |
| Fiber size | 50/125μm |
Buffer protective layer diameter | |
| Main buffer layer diameter | 250μm ± 5μm |
| Loose casing material | PBT |
Compressive strength (IEC794-1) | |
| Installation / Transportation (100 mm) | 1000 N / 300 N |
Minimum bending radius (IEC794-1) | |
| Installation / Transportation | 20 x diameter / 10 x diameter |
Operating Temperature | |
| Installation / Transportation | -40℃ ~ +70℃ |
| Technical Data - Transmission | |||||||
Fiber type | Attenuation | Bandwidth | Bandwidth | ||||
Conditions | --- | --- | 850 nm | 1300 nm | |||
1310 nm | 1550 nm | 850 nm | 1300 nm | ||||
Units | dB/km | dB/km | dB/km | dB/km | MHz/km | MHz/km | |
G652D | ≤0.36 | ≤0.22 | --- | --- | --- | --- | |
G655 | ≤0.40 | ≤0.23 | --- | --- | --- | --- | |
OM1 | --- | --- | ≤3.5 | ≤1.2 | ≥200 | ≥500 | |
OM2 | --- | --- | ≤3.3 | ≤1.2 | ≥500 | ≥500 | |
OM3 | --- | --- | ≤3.3 | ≤1.2 | ≥1500 | ≥500 | |
OM4 | --- | --- | ≤3.3 | ≤1.2 | ≥3500 | ≥500 | |
Technical Data - Machinery | |||
Specification | 6-42 fibre optics (6 fibre optics per tube) | 48-84 fibre optics (12 fibre optics per tube) | 96 fibres (12 fibres per tube) |
Number of loose sleeves | 1-7 Loose Tubing | 4-7 Loose Tubing | 8 Loose Tubing |
Cable diameter | Approx. 10.1 mm | Approx. 11.0 mm | Approx. 11.9 mm |
Cable weight | Approximately 87 (kg/km) | Approx. 103 (kg/km) | Approx. 121 (kg/km) |
Strength Component Diameter | 2.25mm | 2.8mm | 3.7mm |
Maximum Tensile Tension Installation | 1000N | 1500N | 3000N |
Maximum Tensile Tension Operation | 400N | 600N | 1000N |
ZORA outdoor OS2 loose tube fiber optic cable FAQ
Protective design: Outdoor cable adopts multi-layer protective structure (such as hose block + metal armor + high-density polyethylene sheath), moisture-proof, anti-ultraviolet, anti-rodent bite, adapt to harsh climate (-40℃ to +70℃).
Mechanical strength: Metal reinforced core (such as steel wire) provides higher tensile strength (short-term >3000N) to support overhead, direct burial or pipeline laying.
Flame retardant requirements: Outdoor types usually do not require OFNP flame retardant jackets, but must comply with IEC 60794-2 outdoor optical cable standards.
Waterproof structure: Thixotropic Jelly is filled with a loose casing, the outer sheath is made of UV-resistant HDPE (high density polyethylene), and the joints are laser welded to achieve IP67 protection level.
UV-resistant certification: The sheath passes UV aging test (IEC 60794-2-F1B standard), ensuring 20 years of outdoor service life.
Direct burial: The Corrugated Steel Tape protects the optical fiber from soil pressure and sharp objects. The burial depth is recommended to be ≥0.8 meters.
Overhead: Built-in aramid fiber reinforcement (Aramid Yarn) and bulletproof wire (FRP), wind load resistance and self-weight stretching.
Pipeline: Smooth outer skin reduces friction coefficient and is suitable for threading of pipes with φ40mm or above.
Support 10Gbps up to 80km, 100Gbps (PAM4 modulation) up to 40km, compatible with CWDM/DWDM system.
Conventional configuration: 6 core to 144 core optional, loose casing adopts lamination structure (center reinforcement +6 pipe wound), each pipe contains 12/24 core.
High-density scenario: 96-core or higher configuration (customization required) is recommended, applicable to the metropolitan area network backbone or cross-building interconnection.
