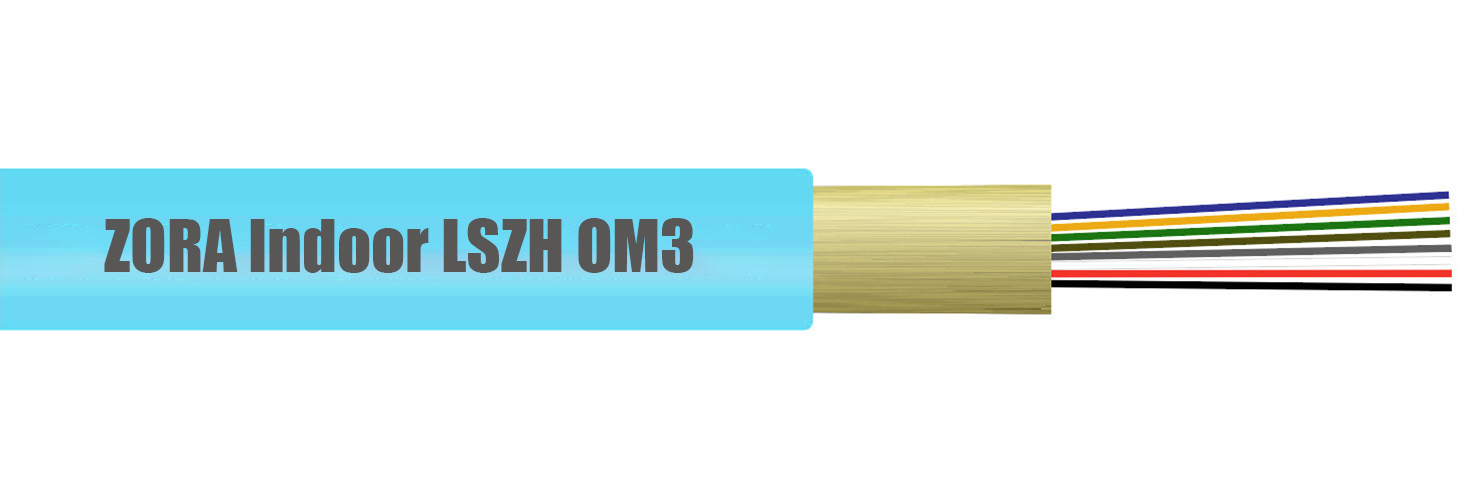

ZRC53NW-4
ZORA
Product Description
ATM, FDDI, Fiber Channel performance guarantee
As a reinforcing material, aramid fiber has excellent tensile strength
The skin is anti-corrosion, waterproof, anti-ultraviolet radiation, and has the advantages of environmental protection
Between buildings
core network
Drop ceiling
10Gbps 40 / 100Gbps Ethernet
550MHz broadband video
Storage Local Area Network (SAN), data center
Suitable for any indoor wiring needs
ANSI/TIA 568-2.D
ISO/IEC11801 / CENELEC EN 50173
IEC60794-1 / ROHS
| ||
Product number | Product name | Packing specification |
ZRC53NW-4 | ZORA 4-core indoor OM3fiber optic cable | 2 km/roll |
ZRC53NW-6 | ZORA 6-core indoor OM3 fiber optic cable | 2 km/roll |
ZRC53NW-8 | ZORA 8-core indoor OM3 fiber optic cable | 2 km/roll |
ZRC53NW-12 | ZORA 12-core indoor OM3 fiber optic cable | 2 km/roll |
ZRC53NW-24 | ZORA 24-core indoor OM3 fiber optic cable | 2 km/roll |
Color Configuration | ||||||
Fiber color - First set of 12 cores | ||||||
Class Number | 1 | 2 | 3 | 4 | 5 | 6 |
Color | Blue | Orange | Green | Brown | Gray | White |
Class Number | 7 | 8 | 9 | 10 | 11 | 12 |
Color | Red | Black | Yellow | Purpel | Pink | Navy Blue |
| |
| Structure | |
| Jacket and cushioned protective layer | |
| Jacket material | Low smoke non-toxic |
| Cable reinforcement material | Aramid fibre |
| Main buffer layer | compact buffer | 250 microns ± 5 microns | 900 microns ± 50 microns Fiber size |
| Fiber size | 9/125 microns |
Technical data - Mechanical | |
| Maximum tensile strength (IEC794-1) | |
Install | 660N |
| Haulage | 220N |
| Compressive strength | 1000N / 100mm |
Minimum bending radius (IEC794-1) | |
| Mount | 20 x diameter |
| Haulage | 10 x diameter |
Operating Temperature | |
| Mount | -20℃ ~ +60℃ |
| Haulage | -20℃ ~ +60℃ |
Technical data - Physics | ||||||
| Fiber core number | 2 | 4 | 6 | 8 | 12 | 24 |
| Cable diameter (mm) | 4.0±0.20 | 4.8±0.25 | 5.1±0.25 | 5.6±0.25 | 6.2±0.25 | 8.1±0.30 |
| Cable weight (kg/km) | About equal to 14 | About equal to 20 | About equal to 23 | About equal to 30.8 | About equal to 37 | About equal to 59.9 |
| Technical Data - Transmission | ||||||||||||
Fiber type | Wane | OFL Bandwidth | Effective modal bandwidth | 10G Ethernet SX | Minimum Bending Radius | |||||||
Conditions | 1310/1500 nm | 850/1300 nm |
| 850 nm | 850nm | |||||||
Normal | Maximum | Normal | Maximum | |||||||||
Single Bit | dB/kilometers | dB/kilometers | dB/kilometers | dB/kilometers | MHz/kilometers | MHz/kilometers | M | MM | ||||
G652D | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 16 | ||||
G657A1 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 10 | ||||
G657A2 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 7.5 | ||||
50/125 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥500/500 | --- | --- | 30 | ||||
62.5/125 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥200/500 | --- | --- | 30 | ||||
OM3 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000 | ≤300 | 30 | ||||
OM4 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥4700 | ≤550 | 30 | ||||
BI-OM3 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000 | ≤300 | 7.5 | ||||
BI-OM4 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥4700 | ≤550 | 7.5 | ||||
ZORA Indoor OM3 Fiber Optic Cable FAQ
The ZORA Indoor OM3 Fiber Optic Cable can support a maximum transmission distance of 330 meters at a data rate of 10 Gigabits per second. This makes it suitable for short - to - medium - range indoor applications such as within a data center or across a building floor.
Most modern network equipment that supports multimode fiber optic connections is compatible with OM3 cables. However, it's crucial to check the specifications of your network devices, such as switches, routers, and servers. They should support 10 - Gigabit Ethernet over multimode fiber and be compliant with the relevant standards like IEEE 802.3ae for 10GBASE - SR.
Installation of the OM3 cable is relatively straightforward. Its tight - buffered construction allows for easy handling. However, proper cable management practices should be followed. You need to ensure that the cable is routed neatly, avoiding sharp bends. Termination requires specialized tools like fiber optic cleavers and fusion splicers or pre - terminated connectors. If you're not experienced in fiber optic installation, it's advisable to hire a professional installer.
OM3 cables are optimized for 10 - Gigabit Ethernet applications with a specific reach of 330 meters at 10Gbps. Compared to OM1 and OM2 cables, OM3 offers higher bandwidth and lower attenuation, enabling faster data transfer over longer distances. OM4 multimode cables, on the other hand, can support even longer distances at 10Gbps (up to 550 meters) and are also better suited for 40Gbps and 100Gbps applications over short - range multimode links.
The Indoor OM3 Multimode Optical Cable is designed for indoor use. Using it outdoors exposes it to environmental factors such as moisture, temperature variations, and physical damage from UV rays and weather. For outdoor applications, you should use cables specifically designed for outdoor use, which have additional protective layers against these elements.
Regular inspection is key to maintaining the cable. Check for any signs of physical damage, such as cuts, kinks, or fraying. Keep the cable clean by using appropriate fiber optic cleaning tools to remove dust and debris from the connectors. Also, ensure that the cable is not being subjected to excessive stress or bending. If any issues are detected, repair or replace the affected sections promptly to maintain optimal performance.
