ZRC501050
ZORA
Product Description
ZORA CAT5 Indoor 50-pair Large Logarithmic Cable is widely used in the construction of LAN, MAN communication network, mainly used for building voice system vertical trunking, large-pair twisted-pair cable is an indispensable link in the building backbone, combined with 110 distribution frame equipment, can realize voice or data transmission and wiring.
1、Type: UTP large logarithmic cable, reel packing 305 meters/spool;
2、Wire gauge: 24AWG; copper core material is oxygen-free copper;
3、Insulation: high quality PE material;
4、Sheath requirements: high-quality PVC material；
5、Cable specification: 25/50/100 pairs optional;
6、Sheath color: gray;
7、Characteristic impedance: 100 ± 15Ω;
8、Conforms to the standard: YD/T322-2013.
YD/T322-2013
ANSI/TIA 568.2-D
ISO/IEC 11801
Ordering Information | |||||
Product Number | Product Name | Outer sheath | Color | Length Qty | Qty / Pallet |
ZRC501050 | CAT5 Indoor 50-pair Large Logarithmic Cable | PVC | gray | 305Mtr Reel | 4or 8 |

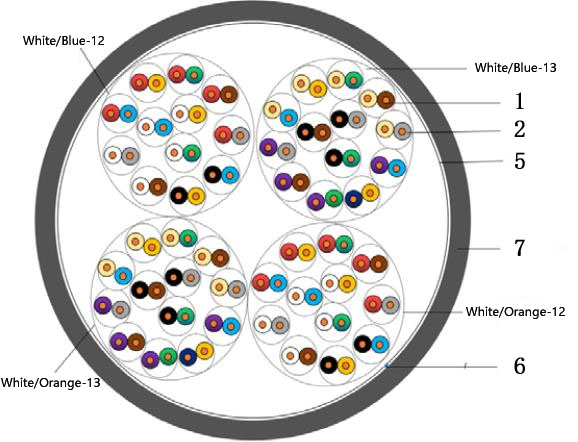

Construction | |||
1.Conductor（mm） | Solid bare copper 24AWG |
| |
2.Insulation（mm） | HDPE 0.88±0.05 | ||
3.Color Code | 1 White/Blue, 2 White/Orange, 3 White/Green, 4 White/Brown, 5 White/Gray, 6 Red/Blue, 7 Red/Orange, 8 Red/Green, 9 Red/Brown, 10 Red/Gray , 11 Black/Blue, 12 Black/Orange, 13 Black/Green, 14 Black/Brown, 15 Black/Gray 16 Yellow/Blue, 17 Yellow/Orange, 18 Yellow/Green, 19 Yellow/Brown, 20 Yellow/Gray 21 Purple/Blue, 22 Purple/Orange, 23 Purple/Green, 24 Purple /Brown, 25 Purple/Gray | ||
4.linear sequence | 1-12 White-Blue Bi-Color Ties,13-25 White-Blue Bi-Color Ties,26-37 White-Orange Bi-Color Ties,38-50 White-Orange Bi-Color Ties | ||
5.Wrapping | PET tape | ||
6.Rip cord | Yes | ||
7.Jacket（mm） | Material | PVC or LSZH available | |
Nom.thickness | 1.2±0.1 | ||
Color | Gray | ||
Nom.diameter | 16.5±1.0 | ||
Mechanical characteristics | |
Operating temperature | -20~60℃ |
Installation temperature | 0~60℃ |
Elongation at break of the conductor | ≥15% |
| Insulation elongation at break | ≥300% |
| Insulation Tensile Strength | ≥16MPa |
Sheath tensile strength before aging | ≥13.5MPa |
Sheath tensile strength after aging(100℃±2℃,168h) | ≥12.5MPa |
Tensile strength change rate after sheath aging | ±20% |
Sheath elongation at break before aging | ≥150% |
Sheath elongation at break after aging(100℃±2℃,168h) | ≥125% |
Sheath elongation change at break after aging | ±20% |
Insulated wire core broken, mixed wire | not breaking the line and not mixing it up |
Electrical characteristics(20℃) | |
Characteristic impedance | 100±15Ω |
Single conductor DC resistance | ≤9.5Ω/100m |
DC resistance imbalance within the wire pair | ≤2.0% |
Dielectric strength DC between conductors | 1000V,1min No breakdown |
Operating Capacitance | ≤5.6nF/100m |
Electrical insulation resistance | ≥5000MΩ·km +20℃ DC (100-500)V |
ZORA Cat5 Indoor 50-pair Large Logarithmic Cable FAQ
It is a Cat5-compliant unshielded twisted-pair (UTP) cable with 50 pairs (100 cores) of copper conductors, designed for voice communication (e.g., telephone systems) and low-speed data transmission. It supports 100MHz bandwidth and 100Mbps Ethernet (e.g., 100BASE-TX)68.
Bandwidth: Cat5 (100MHz) vs. Cat5e (100MHz with enhanced crosstalk suppression) vs. Cat6 (250MHz).
Speed: Cat5 supports 100Mbps, while Cat5e/6 support 1Gbps.
Design: The 50-pair structure suits high-density voice cabling, such as PBX systems610.
Voice Systems: Enterprise telephone networks, call centers.
Security Systems: Centralized wiring for CCTV or alarms.
Legacy Data Networks: Low-bandwidth office environments69.
Supports PoE (802.3af/at), but:
Total power must be controlled when multiple pairs are used.
Cat5e+ devices are recommended for optimal performance58.
Bend Radius: Avoid sharp bends (≥8× cable diameter).
Patch Panels: Use 110-type patch panels compatible with 50-pair termination.
EMI Management: Keep away from high-voltage cables despite UTP design12.
Complies with TIA/EIA-568-B.2 standards, UL-listed, RoHS-compliant, and partially CE-marked68.
Printing: Check for "Cat5," "50-Pair," "ZORA," and certification marks on the jacket.
Conductor Material: Oxygen-free copper (OFC) with 24AWG diameter
