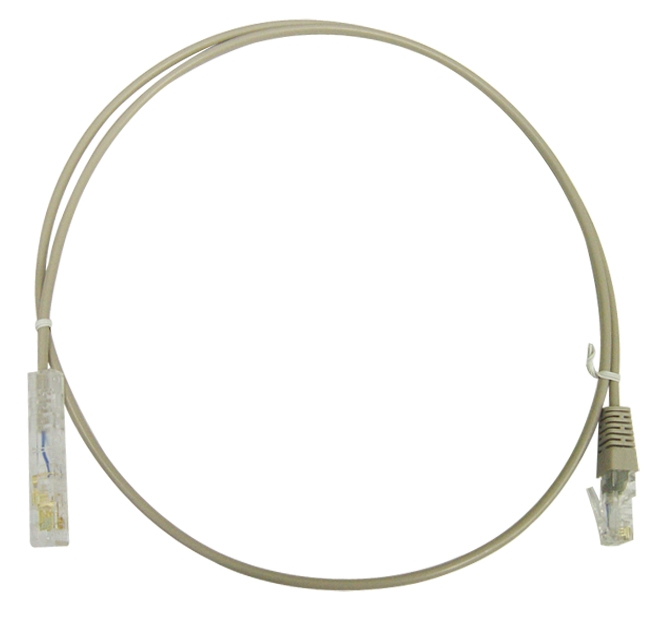

ZRJ100RJ1110
ZORA
Product Description
ISO/IEC 11801
1、Adopting multi-stranded conductor structure, the jumper cable is soft, easy to bend and not easy to break;
2、One end of the crystal head crimp reed is gold-plated, and the other end is duckbill terminated to ensure excellent performance;
3、Gradient force principle of the rubberized jacket, non-slip tensile, to ensure that the bending radius.
Ordering Information | ||||||
|---|---|---|---|---|---|---|
Product Number | Product Name | outer sheath | Color | Length | Connection Type | |
ZRJ100RJ1110 | ZORA 110-RJ45 Voice Patch Cable,1-pair 1M | PVC | Gray | 1.0m | T568B | |
| ZRJ100RJ1120 | ZORA 110-RJ45 Voice Patch Cable,1-pair 2M | PVC | Gray | 2.0m | T568B | |
| ZRJ100RJ1130 | ZORA 110-RJ45 Voice Patch Cable,1-pair 3M | PVC | Gray | 3.0m | T568B | |
Cable Construction | |
Conductor | |
| Material | Stranded Anneal Copper Wire |
Wire Size | 24AWG |
| Insulation | |
Material | PE |
Thickness | Nom. 0.18mm |
Diameter | 0.97mm |
Jacket | |
Material | PVC or LSZH optional |
Thickness | 0.50mm |
Diameter | 3.00±0.2mm |
Jacket Colors | Available in multiple colors and customizable |
| Flame rating | CM Style |
Maximum tensile strength | 1 kgf/mm2 |
RJ45 Socket | |
Housing | PC |
Contact Material | Copper alloy 50u” gold plated over nickel |
Strength | 20lbs. min |
Durability | 750 cycles min. |
Boots | Molded boots prevent pin from bending and cables from kink |
Electrical | |
Impedance | 93.8Ω ± 15 Ω |
Capacitance unbalance pair to ground | max. 330pf/100m Max |
D.C.R (Max.) | Rated value 14.8 ohm/100m at 20°C |
DC Insulation Resistance | 1500MΩ/100m min. |
| Dielectric Strength | AC-500V/1 Min |
ZORA 110-RJ45 Voice Patch Cord FAQ
Core Function: Connects 110-type voice patch panels (e.g., Krone blocks) to RJ45 devices (e.g., IP phones, switches) for voice signal transmission and port expansion.
Typical Use: Legacy PBX cabling, telecom room cross-connects, intercom system integration.
Wiring Consistency:
110 side must follow T568A/B standards; RJ45 side must match device port wiring (T568B recommended).
Use 110 punch-down tools to ensure full contact penetration.
Mechanical Protection:
Avoid sharp bends (minimum bend radius ≥4x cable diameter).
Data Transmission: Designed for voice signals (analog/VoIP), not recommended for >100Mbps data.
PoE Compatibility: Supports low-power PoE (12V/24V) for devices like IP phones, but limit length to ≤15m.
Twisted Pairs: High-density twisting minimizes EMI.
Separation: Maintain ≥20cm distance from power cables.
Shielding: Use F/UTP version in high-interference environments.
Length: Customizable from 0.5m to 10m (standard: 1m/2m/3m).
Color: Available in gray, blue, red, yellow; custom colors for bulk orders.
Inspection: Check RJ45 connectors for oxidation every 6 months.
Environment: Avoid prolonged exposure to humidity or high temperatures (operating range: -20°C~60°C).
Labeling: Use weatherproof labels to mark connections.
