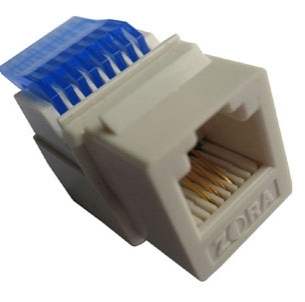

ZORA Voice Module Description

The ZORA Voice Module is used for voice communication, in conjunction with a message socket panel or desktop box in the workspace.

Standards Compliance

• ANSI/TIA 568 C.2

• ISO/IEC 11801

ZORA Voice Module Features

1、Shell material: polycarbonate engineering plastics, impact resistance, flame retardant PC material, strong resistance to damage;

2、To ensure that the card connection is more stable, the number of times to play the line ≥ 200 times;

3、Socket gold pin gold-plated to ensure excellent contact performance;

4、Free of wire type module, to ensure reliable termination performance requirements.

Technical Specifications

1: What is the primary function of the ZORA Voice Module?

Core Function: Converts analog voice signals to digital VoIP, compatible with legacy PBX and IP telephony networks. Supports call routing and signal processing.

Extended Use: Integrates voicemail, automatic call distribution (ACD), and DTMF decoding.

2: How to install and configure the module?

Hardware Connection:

Connect via RJ45 to a PoE-enabled switch/router.

Use FXO/FXS ports for legacy phone lines or analog devices.

Software Configuration:

Configure SIP server settings (address, port, codec) via web interface.

Enable QoS to prioritize voice traffic.

3:What voice codecs are supported?

Basic Codecs: G.711 (A-law/μ-law), G.729 (low-bandwidth).

HD Voice: Optional Opus or G.722 (requires firmware update).

4: Does it support redundant power or failover?

Power Redundancy: Dual power inputs (DC 12-48V + PoE) with automatic failover.

Network Redundancy: Dual SIP server registration for backup during outages.

5:How to diagnose voice quality issues (e.g., echo, latency)?

Built-in Tools:

• Monitor network jitter (<30ms) and packet loss (<1%) via real-time traffic analysis.

• Enable Acoustic Echo Cancellation (AEC) with adjustable settings.

External Tests: Use Ping/Traceroute to diagnose network path issues.
