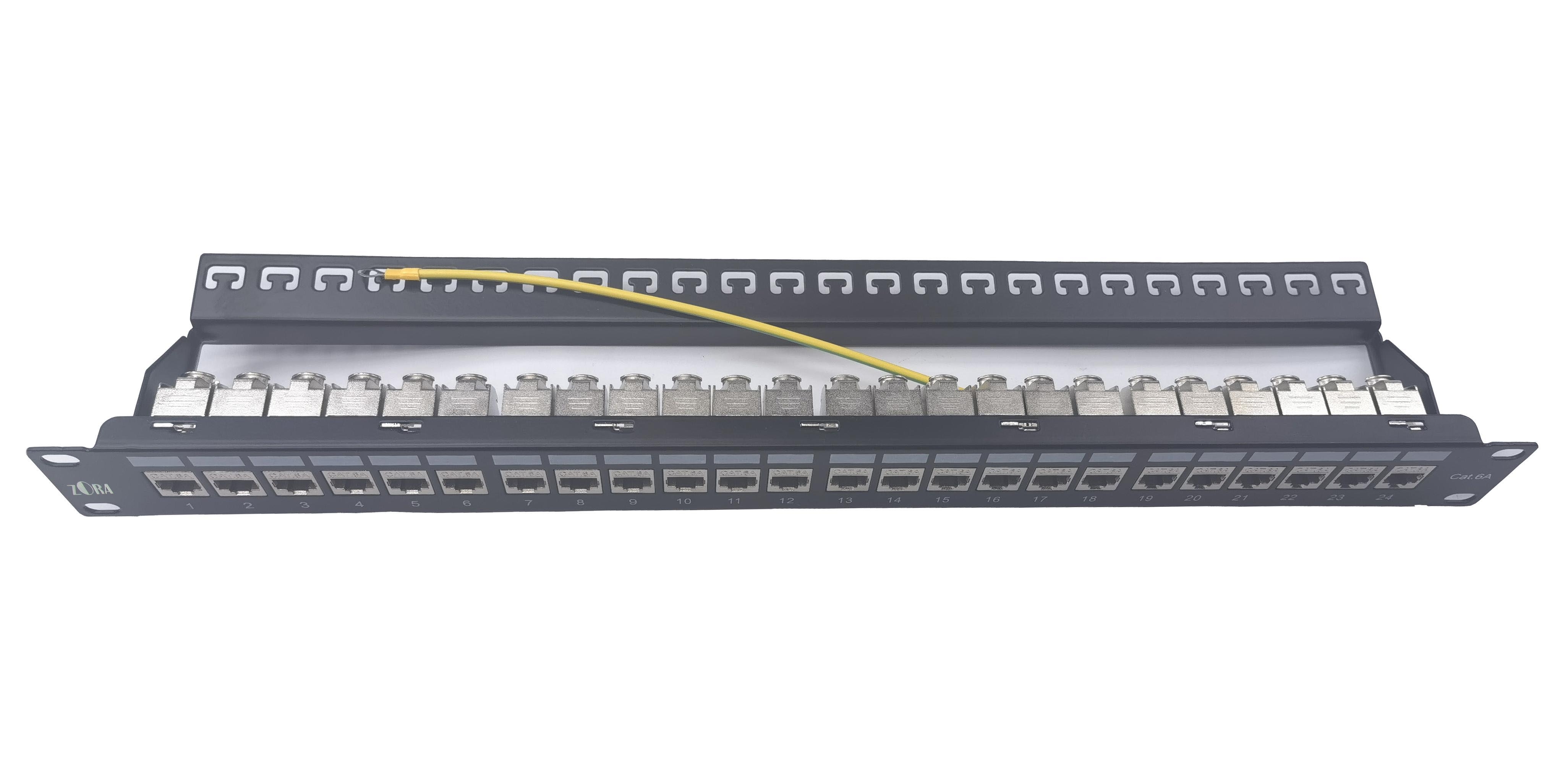

ZORA 24-port Cat 6A Shielded Modular Patch Panel

ZORA 24-port Cat 6A shielded modular patch panels are used for data network communications, patch cord connected wiring devices, main wiring closets and distribution closets.

Model:
ZRDB3224
Brand:
ZORA

Availability:



Inquire

Product Description

ZORA 24-port Cat 6A Shielded Modular Patch Panel Description

ZORA 24-port Cat 6A shielded modular patch panels are used for data network communications, patch cord connected wiring devices, main wiring closets and distribution closets.

Standards Compliance

ANSI/TIA 568.2-D
ISO/IEC 11801

ZORA 24-port Cat 6A Shielded Modular Patch Panel Features

1The back of the SPCC metal cable management tray, for bundling, cable management, to avoid cable and module termination force caused by loose connections;

2Bracket with grounding terminals for shielding good grounding, ground resistance is less than 1Ω;

3Front intuitive grouping labeling area, for writing labels to provide easy management;

4Directly used in 19-inch standard cabinets, racks, wall cabinets and so on;

5The use of high-quality cold-rolled steel plate, the surface of the plastic spraying special treatment, strong, beautiful, not easy to scratch;

6Operating temperature: -10℃～60℃.

Ordering Information
Product Number	Product Name	Qty / Box	Qty / CTN
ZRDB3224	24-port Cat 6A shielded modular patch panel	1	8

Technical Specifications

Construction
Body
Body Material	Adoption of high-quality SPCC cold-rolled steel plate
Body Surface	The surface has undergone special spray coating treatment, which is sturdy, beautiful, and not easily scratched
Front
Front Label	Positive and intuitive grouped labeling area provides easy management of written labels
Rear
Rear Tray	Straight cable management bracket on the back for bundling and cable management, effectively reducing cable tension

Physical Ranges
Operating Temperature	-20℃～+70℃ to meet the requirements of 48 hours of salt spray test
Norm	Standard 19” rack mount, height: 1U
Mounting	Modular design for quick installation of ZORA modules
Earth Resistance	Bracket with ground terminal, good grounding for shielding, ground resistance less than 1Ω

ZORA 24-port Cat 6A Shielded Modular Patch Panel FAQ

1: What is the ZORA 24-port Cat 6A Shielded Modular Patch Panel?

This is a shielded modular patch panel designed for 10Gbps networks in high EMI environments. Compatible with Cat 6A STP/FTP cables, its metal shielding and modular structure suppress electromagnetic interference, ideal for data centers and industrial networks.

2: What are the maximum speed and distance supported?

With Cat 6A shielded cables, it supports 10GBASE-T Ethernet up to 100 meters, compliant with ISO/IEC 11801 standards (500MHz bandwidth).

3: Does shielded patch panel require grounding? How to install correctly?

Full-path grounding is mandatory! Use shielded modules, grounding wires, and ensure rack/equipment grounding. Limit cable untwisting to ≤13mm and secure cables with metal cable managers.

4: Can it work with unshielded cables/devices?

Physically compatible, but shielding effectiveness will be lost. Mixed use may cause interference due to incomplete grounding. Use end-to-end shielded components for optimal performance.

5: What are the benefits of modular design?

Hot-swappable shielded modules enable easy maintenance. Available in 1U/2U heights, with label management and front/rear cable routing for high-density space optimization.

6: How to verify shielding integrity?

Use professional testers (e.g., Fluke DSX-5000) to check shield continuity, end-to-end ground resistance (≤1Ω), and parameters like insertion loss/ANEXT.

7: Where is it recommended for use?

Ideal for EMI-sensitive environments: medical facilities, industrial automation, financial data centers. For low-EMI offices, unshielded versions are cost-effective.
