ZORA Server Cabinet

ZORA server cabinets are mainly used for installing server cabinets that meet the 19-inch rack-mounted hardware and storage of IT equipment required by the customer, with good management of network cables and communication cables, with good heat dissipation. Mainly used in comprehensive wiring wiring products, computer network equipment and electronic equipment stacking scenarios, communication equipment and other fields.

Model:
ZRB1468
Brand:
ZORA

Availability:



Inquire

Product Description

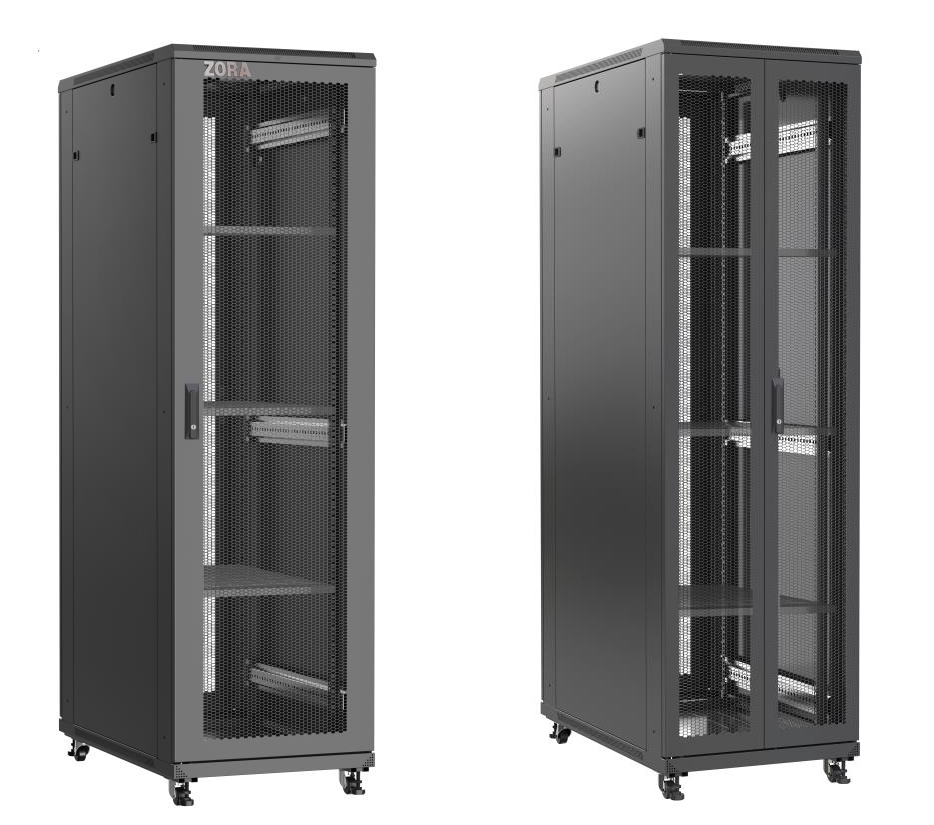

ZORA Server Cabinet

ZORA server cabinets are mainly used for installing server cabinets that meet the 19-inch rack-mounted hardware and storage of IT equipment required by the customer, with good management of network cables and communication cables, with good heat dissipation. Mainly used in comprehensive wiring wiring products, computer network equipment and electronic equipment stacking scenarios, communication equipment and other fields.

ZORA server cabinet

Standards Compliance

GB/T 19520.16-2015
ANSI/EIA RS-310-D
EC60297-2

ZORA Server Cabinet Features

1、Front single-opening flat hexagonal mesh door, rear double-opening flat hexagonal mesh door, ventilation up to 80%, maximum opening up to 180°.；

2、Front and rear welded frame assembly cabinet, static load capacity up to 1300kg；

3、Front and rear knockout holes in the top and bottom plates are designed to feed the wires flexibly；

4、Quick release side panels on both sides of the cabinet for easy disassembly and installation；

5、Top panel mounts the fan unit from top to bottom for easy installation and enhanced cooling capacity；

6、Optional accessories such as chassis, parallel cabinets, and cable routing boards are available to provide a wide range of functional requirements.

Ordering Information
Product Number	Product Name	Cabinet size	Colour	Qry/CTN
ZRB1468-22U	server cabinet	600×800×1200mm	Black	1
ZRB1468-32U	server cabinet	600×800×1600mm	Black	1
ZRB1468-37U	server cabinet	600×800×1800mm	Black	1
ZRB1468-42U	server cabinet	600×800×2000mm	Black	1
ZRB1468-47U	server cabinet	600×800×2200mm	Black	1

Technical Specification

Structure
Main Part
Makings	Made of high quality SPCC cold rolled steel plate
Surface	Degreased, pickled, phosphated, electrostatically sprayed
Color	Black
Front Door
Makings	Single-opening flat hexagonal mesh steel door with long handle lock, max. 180° opening
Back door
Makings	Double-opening flat hexagonal mesh steel door with small round lock, max. 180° opening
Side Panel
Makings	Quick-open side steel plate with plastic clasp and pre-drilled hole for small round lock mounting
Internal Composition
Frame	Front and rear welded frame, reserved holes for cable management and parallel cabinet
Angle Gauge	4 mounting angle gauges, bi-directional silkscreen U number
Side Mounting Beam	Fingerprint, corrosion and heat resistance, 135° folded edges for high strength
Top Plate	Front and rear knock-down hole alignment design, with fan unit cooling function, reserved holes for cover plate mounting
Base Plate	Front and rear knock-down hole alignment design, with removable metal cover plate in the middle, reserved holes for cover plate mounting
Tray	Standard tray for cabinets, load capacity of 110kg
Fan	2-position / 4-position fan unit Top-to-bottom installation, 220V AC fan
PDU	8-position 10A new national standard 5-hole power distribution unit
Kit	20/40 sets of M6 plum groove screws, jam nut fittings, 1 plum groove wrench
Casters, Feet	M12 adjustable feet, 2" universal heavy-duty casters

Physical property
Static load	1300KG
Protection rating	IP20
Cabinet width (mm)	600						800
Cabinet depth (mm)	600		800		900		1000		1100		1200
Cabinet height (mm)	933	1111		1200		1333	1555	1778		2000		2222
U Position	18	22		24		27	32	37		42		47

ZORA Server Cabinet FAQ

1.What is the ZORA Server Cabinet?

The ZORA Server Cabinet is a 19-inch standard rack designed for data centers and enterprise server rooms. Constructed with high-strength cold-rolled steel or aluminum alloy, it supports 47U height for centralized installation of servers, storage, and network equipment.
