Product Description

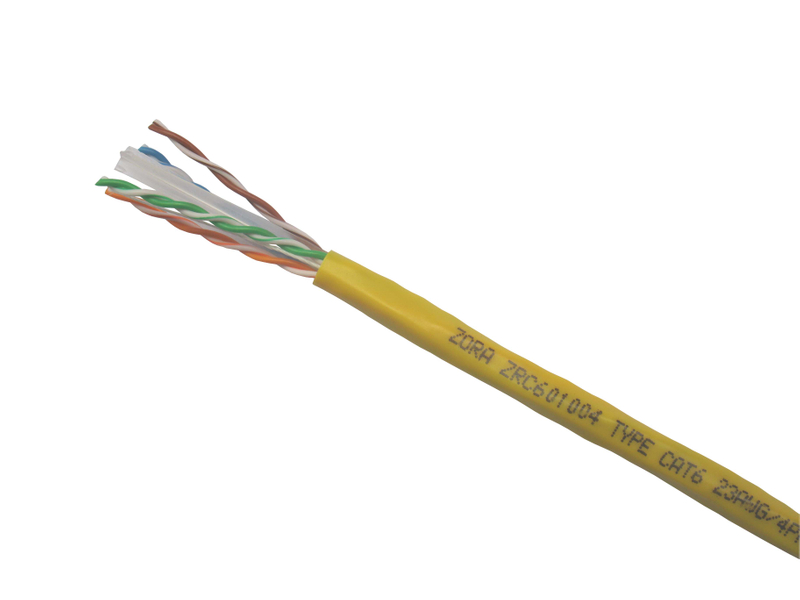

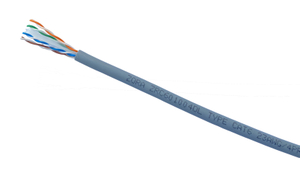

ZORA Cat 6 UTP 4P PVC Cable is used in structured cabling data transmission cables to carry digital, voice, data and video signals and is suitable for all Class E links and Category 6 applications.
ZORA Cat 6 UTP 4P PVC Cable is available in a complete range of solutions including unshielded Cat6 compatible information modules, patch cords and patch panels.
1、Structure: The cable adopts a unique internal cross-bone design, which better ensures the outer diameter and effectively improves the electrical properties such as NEXT and FEXT.
2、Copper material: domestic high-quality oxygen-free copper;
3、Wire：Adopting international popular and advanced tightly wrapped wire;
4、Bandwidth: the output and input bandwidth can reach 250MHz, supporting Gigabit Ethernet data transmission;
5、Stranded pitch: the cable has a precision stranded pitch;
6、Sheath: the outer sheath is PVC plastic, the inner sheath is flame retardant polyethylene;
7、Color: yellow, green, can also be customized according to customer requirements color
8、Provide cable length marking, reduce waste.
YD/T1019
ANSI/TIA 568.2-D
ISO/IEC 11801
IEC 60332-1
| Ordering Information | |||||
|---|---|---|---|---|---|
Product Number |
Product Name |
Outer sheath |
Color |
Length Qty |
Qty / Pallet |
ZRC601004 |
Cat 6 UTP 4P PVC Cable |
PVC |
yellow |

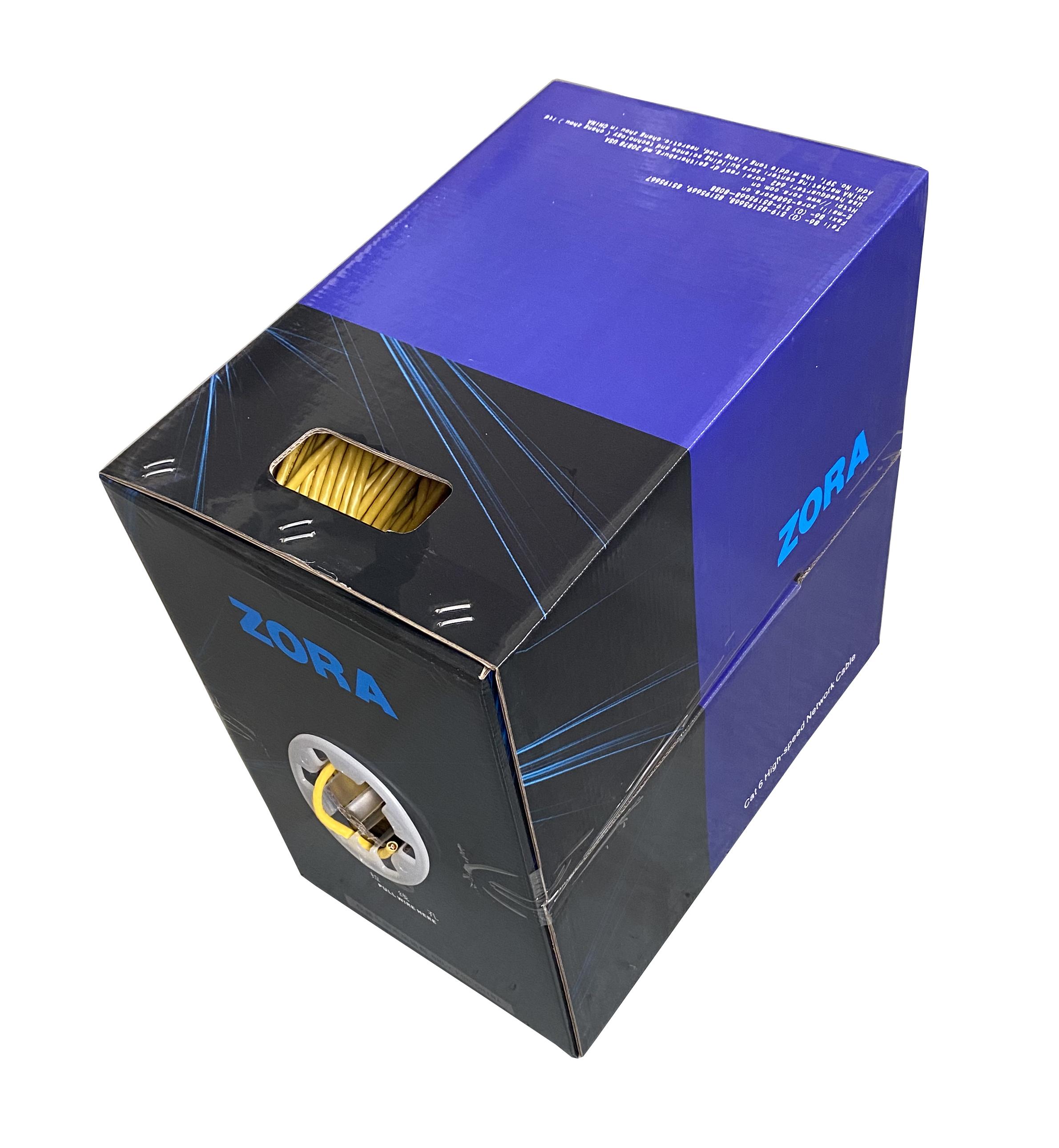

305Mtr Box |
24 or 40 |
Cable color can be customized according to customer requirements
Construction |
|||
1.Conductor（mm） |
Solid bare copper 23AWG |
|
|
2.Insulation（mm） |
HDPE 1.00±0.08 |
||
3.Color Code |
White-Orange(Stripe)/Orange White-Green(Stripe)/Green White-Brown(Stripe)/Brown |
||
4.Wrapping（mm） |
----- |
||
5.Screen（mm） |
----- |
||
6.Drain wire（mm） |
----- |
||
7.Cross |
Yes |
||
8.Rip cord |
Yes |
||
9.Jacket（mm） |
Material |
PVC |
|
Nom.thickness |
0.5mm |
||
Color |
yellow |
||
Nom.diameter |
6.0mm±0.3mm |
||
Mechanical characteristics |
|
Operating temperature |
-20~60℃ |
Installation temperature |
0~60℃ |
Tensile strength.Max |
100N |
Bending radius |
8D |
Flame resistant |
IEC 60332-1 |
Length of Delivery |
305m/box |
Electrical characteristics(20℃) |
|
Conductor resistance .Max |
9.5Ω/100m |
Conductor resistance unbalance .Max |
In pair:2%|Between pairs:4% |
Insulation resistance(DC 500V/1 min) .Min |
5000MΩ·km |
Dielectric strength（C-C, .DC.1min） |
1kV |
Mutual capacitance .Max |
5.6nF/100m |
| Performance Statistics |
Frequency (MHz) |
Attenuation (dB/100m) |
NEXT (dB) |
PSNEXT (dB) |
ELFEXT (dB/100m) |
PSELFEXT (dB/100m) |
Delay (ns/100m) |
RL(dB) |
4 |
3.8 |
65.3 |
63.3 |
55.8 |
52.8 |
552.0 |
23.0 |
8 |
5.3 |
60.8 |
58.8 |
49.7 |
46.7 |
546.7 |
24.5 |
10 |
6.0 |
59.3 |
57.3 |
47.8 |
44.8 |
545.4 |
25.0 |
16 |
7.6 |
56.2 |
54.2 |
43.7 |
40.7 |
543.0 |
25.0 |
20 |
8.5 |
54.8 |
52.8 |
41.8 |
38.8 |
542.0 |
25.0 |
25 |
9.5 |
53.3 |
51.3 |
39.8 |
36.8 |
541.2 |
24.3 |
31.25 |
10.7 |
51.9 |
49.9 |
37.9 |
34.9 |
540.4 |
23.6 |
62.5 |
15.4 |
47.4 |
45.4 |
31.9 |
28.9 |
538.6 |
21.5 |
100 |
19.8 |
44.3 |
42.3 |
27.8 |
24.8 |
537.6 |
20.1 |
200 |
29.0 |
39.8 |
37.8 |
21.8 |
18.8 |
536.5 |
18.0 |
250 |
32.8 |
38.3 |
36.3 |
19.8 |
16.8 |
536.3 |
17.3 |
ZORA Cat 6 UTP 4P PVC Cable FAQ
Cat6 Unshielded Twisted Pair (UTP) cable is a standardized twisted-pair cable with four copper pairs and no metallic shielding. It complies with TIA/EIA-568-B.2 specifications, supporting Gigabit Ethernet (1Gbps) and short-range 10Gbps networks, ideal for high-bandwidth, low-interference environments.
Enterprise LANs: Connecting switches, routers, and servers.
Surveillance Systems: Transmitting HD video from IP cameras.
Smart Homes: 4K streaming, NAS device connectivity.
Office Networks: Powering PoE devices like wireless APs and IP phones.
Transmission Rate: 1Gbps (100m), 10Gbps (up to 55m).
Bandwidth: 250MHz.
Max Distance: 100m (1Gbps).
Noise Resistance: Reduced crosstalk (NEXT) via twisted-pair design.
Parameter |
Cat6 UTP |
Cat5e |
Cat6A |
Bandwidth |
250MHz |
100MHz |
500MHz |
10Gbps Distance |
55m |
Not supported |
100m |
Wire Gauge |
0.57mm (23AWG) |
0.51mm (24AWG) |
0.57mm (23AWG) |
Cost |
Moderate |
Low |
High |
Bend Radius: ≥4x cable diameter (e.g., 24mm for 6mm cable).
Avoid Interference: Keep ≥30cm distance from power cables.
Connector Quality: Use Cat6-rated RJ45 plugs with all 8 pins terminated.
Post-Install Testing: Verify compliance with TIA/EIA standards using a cable certifier.
Yes! Cat6 UTP supports PoE (802.3af/at/bt) with up to 90W power delivery (PoE++).
White-Blue(Stripe)/Blue
