ZRCB601004DL
ZORA
Product Description

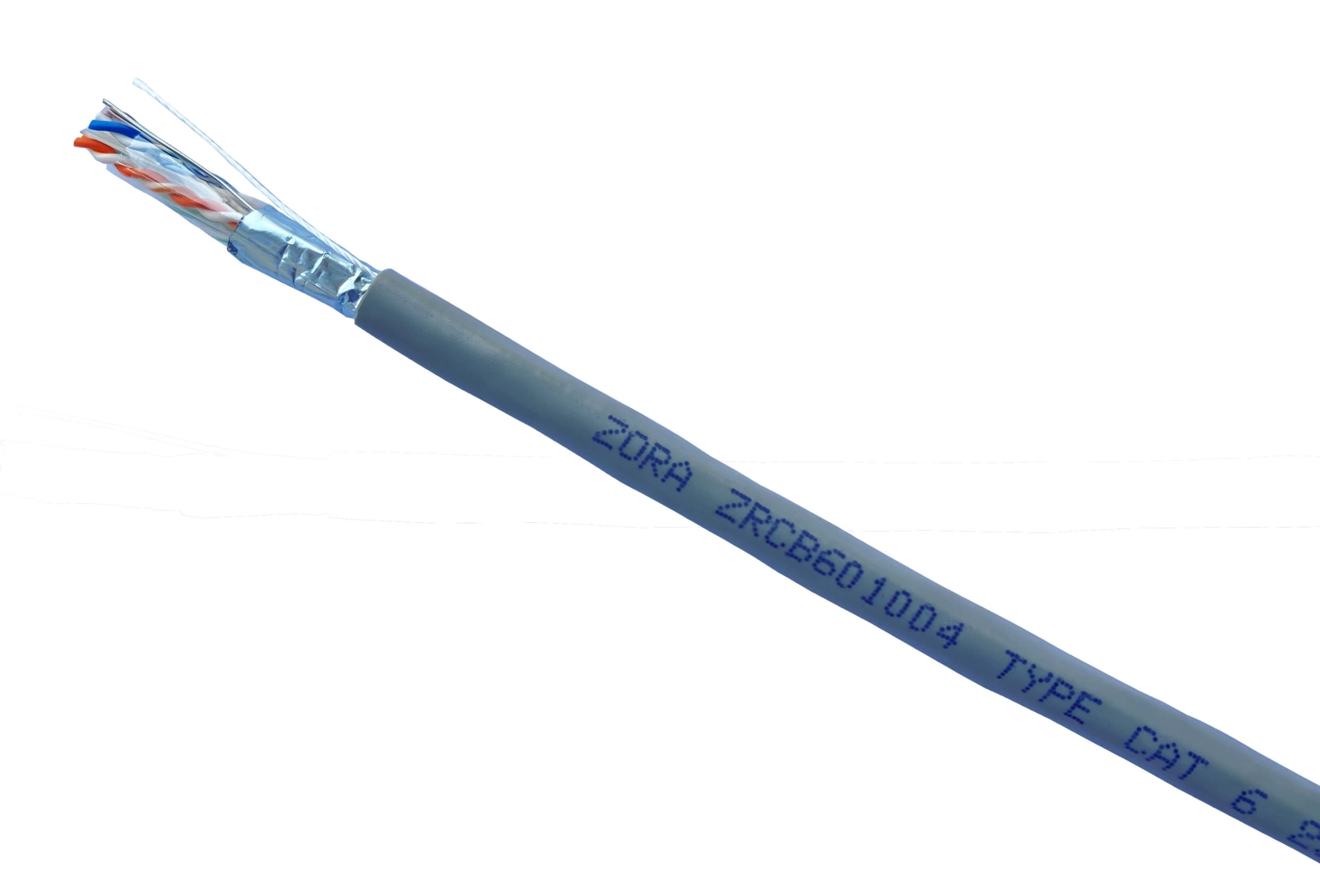

ZORA Cat 6 FTP 4P LSZH Cable is a high-performance network transmission cable designed for high-bandwidth, high-interference demanding scenarios. It combines the transmission performance of a Category 6 cable with a fully shielded construction and low-smoke, halogen-free, environmentally friendly materials, making it suitable for use in locations with stringent requirements for signal stability, fire safety, and environmental protection.
1Using the unique inner cross skeleton type design, better in the basis of ensuring the outer diameter, but also effectively improve the NEXT, FEXT and other electrical properties.
2Copper material: high-quality oxygen-free copper;
3Wire: international popular and advanced tightly wrapped wire;
4Transmission bandwidth can reach 250MHz, supporting Gigabit Ethernet data transmission;
5With the help of aluminum foil shielding layer and tinned copper wire, it achieves excellent shielding effect and has very high anti-interference ability and confidentiality performance;
6Sheath: The outer sheath is made of imported LSZH plastic (optional PVC), and the inner sheath is flame retardant polyethylene;
7Provide cable length marking to reduce waste.
YD/T1019
ANSI/TIA 568.2-D
ISO/IEC 11801
IEC 61034-2
| Ordering Information | |||||
|---|---|---|---|---|---|
Product Number | Product Name | Outer sheath | Color | Length Qty | Qty / Pallet |
ZRCB601004DL | Cat 6 FTP 4P LSZH Cable | LSZH | gray | 305Mtr Box | 24 or 40 |
Cable color can be customized according to customer requirements

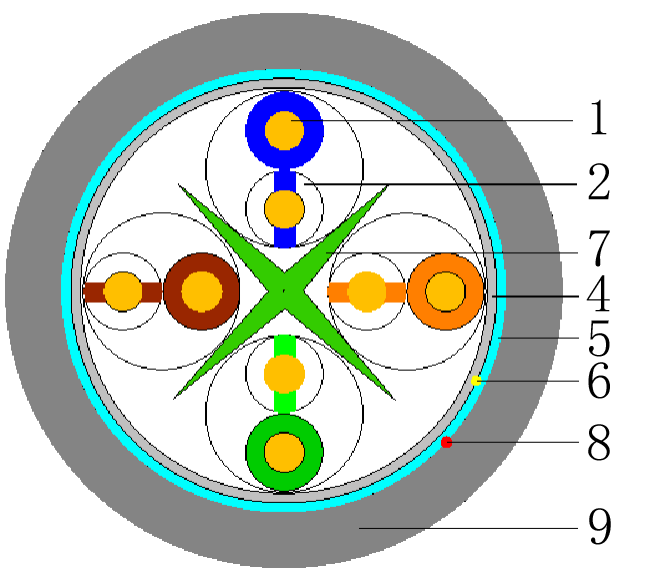

Construction | |||
1.Conductor（mm） | Solid bare copper 23AWG |
| |
2.Insulation（mm） | HDPE 1.1±0.08 | ||
3.Color Code |
White-Orange(Stripe)/Orange White-Green(Stripe)/Green White-Brown(Stripe)/Brown | ||
4.Wrapping（mm） | PET tape0.02 | ||
5.Screen（mm） | Al foil0.06 | ||
6.Drain wire（mm） | Tinned copper 0.50 | ||
7.Cross | Yes | ||
8.Rip cord | Yes | ||
9.Jacket（mm） | Material | LSZH | |
Nom.thickness | 0.5 | ||
Color | Gray | ||
Nom.diameter | 7.5±0.5 | ||
Mechanical characteristics | |
Operating temperature | -20~75℃ |
Installation temperature | 0~75℃ |
Tensile strength.Max | 100N |
Bending radius | 8D |
Flame resistant | IEC 61034-2 |

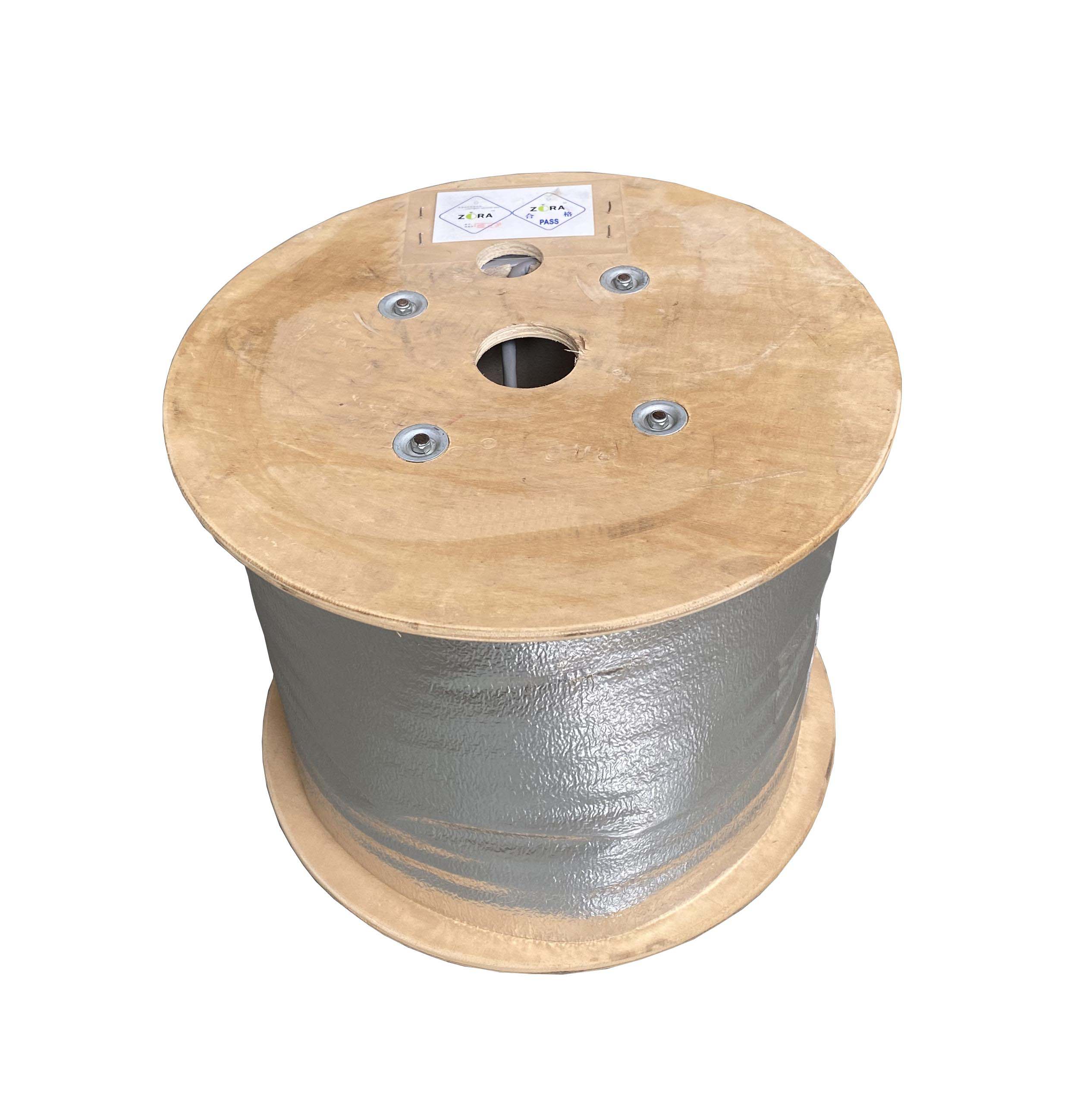

Length of Delivery | 305m/box |
Electrical characteristics(20℃) | |
Conductor resistance .Max | 9.5Ω/100m |
Conductor resistance unbalance .Max | In pair:2%|Between pairs:4% |
Insulation resistance(DC 500V/1 min) .Min | 5000MΩ·km |
Dielectric strength（C-C, .DC.1min） | 1kV |
Mutual capacitance .Max | 5.6nF/100m |
| Performance Statistics | |||||||
Frequency (MHz) | Attenuation (dB/100m) | NEXT (dB) | PSNEXT (dB) | ELFEXT (dB/100m) | PSELFEXT (dB/100m) | Delay (ns/100m) | RL (dB) |
4 | 3.8 | 65.3 | 63.3 | 55.8 | 52.8 | 552.0 | 23.0 |
8 | 5.3 | 60.8 | 58.8 | 49.7 | 46.7 | 546.7 | 24.5 |
10 | 6.0 | 59.3 | 57.3 | 47.8 | 44.8 | 545.4 | 25.0 |
16 | 7.6 | 56.2 | 54.2 | 43.7 | 40.7 | 543.0 | 25.0 |
20 | 8.5 | 54.8 | 52.8 | 41.8 | 38.8 | 542.0 | 25.0 |
25 | 9.5 | 53.3 | 51.3 | 39.8 | 36.8 | 541.2 | 24.3 |
31.25 | 10.7 | 51.9 | 49.9 | 37.9 | 34.9 | 540.4 | 23.6 |
62.5 | 15.4 | 47.4 | 45.4 | 31.9 | 28.9 | 538.6 | 21.5 |
100 | 19.8 | 44.3 | 42.3 | 27.8 | 24.8 | 537.6 | 20.1 |
200 | 29.0 | 39.8 | 37.8 | 21.8 | 18.8 | 536.5 | 18.0 |
250 | 32.8 | 38.3 | 36.3 | 19.8 | 16.8 | 536.3 | 17.3 |
ZORA Cat 6 FTP 4P LSZH Cable FAQ
Cat6 FTP 4P cable is a standardized twisted-pair cable with four copper pairs, featuring individual or overall metallic shielding (e.g., foil or braided mesh) to suppress electromagnetic interference (EMI). It supports Gigabit Ethernet (1Gbps) and short-range 10Gbps transmission, ideal for high-noise environments.
Industrial Facilities: Wiring near motors and automated machinery.
Medical Equipment: MRI, X-ray systems in high-EMI zones.
Data Centers: High-density cabinet interconnects.
Transportation: Signal control networks in subways/airports.
Speed: 1Gbps (100m), 10Gbps (up to 55m).
Bandwidth: 250MHz.
Shielding Types: F/UTP (overall foil), S/FTP (foil per pair + braid).
Noise Resistance: 30-50dB lower crosstalk (NEXT) than UTP.
Parameter | Cat6 FTP | Cat6 UTP |
Shielding | Foil | None |
EMI Resistance | High (factories/hospitals) | Moderate (offices) |
Installation | Complex (requires grounding) | Simple |
Cost | 30-50% higher | Moderate |
Grounding: Shield layers must be grounded at both ends.
Connectors: Use shielded RJ45 plugs (e.g., GG45).
Bend Radius: ≥8x cable diameter (e.g., 64mm for 8mm cable).
Avoid Mixing: Do not mix STP and UTP in the same link.
Yes! Supports 802.3bt (90W), but proper grounding is critical to prevent leakage.
White-Blue(Stripe)/Blue
