ZRC601004DL
ZORA
Product Description

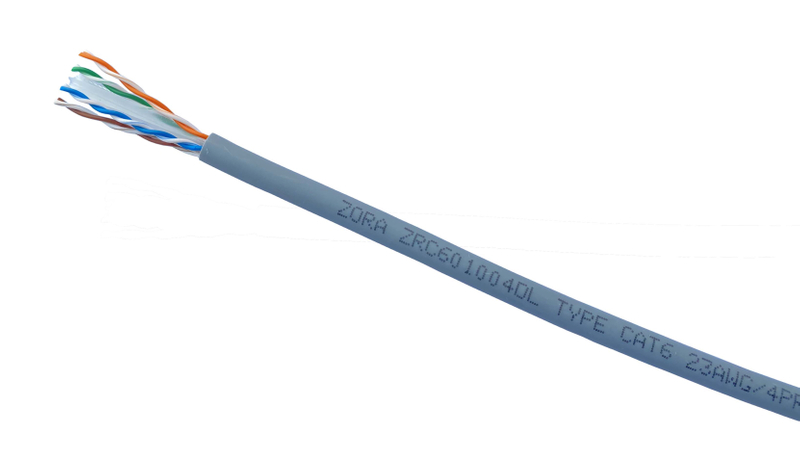

ZORA Cat 6 UTP 4P LSZH Cable is a high-performance network cable that utilizes an unshielded construction combined with a low-smoke halogen-free jacket, combining high-speed transmission with environmental safety features. Designed to meet high bandwidth requirements (250MHz), it is suitable for places with high fire safety and environmental protection requirements, such as office buildings, schools, hospitals and so on.
1、Structure: The cable adopts a unique internal cross-bone design, better in ensuring the outer diameter of the basis, but also effectively improve the NEXT, FEXT and other electrical properties.
2、Copper material: high-quality oxygen-free copper;
3、Wire：Adopting international popular and advanced tightly wrapped wire;
4、Bandwidth: the output and input bandwidth can reach 250MHz, supporting Gigabit Ethernet data transmission;
5, sheath: outer sheath is low smoke halogen-free plastic, inner sheath is flame retardant polyethylene;
6、Color: gray;
7、Provide cable length marking to reduce waste in construction.
YD/T1019
ANSI/TIA 568.2-D
ISO/IEC 11801
IEC 61034-2
| Ordering Information | |||||
|---|---|---|---|---|---|
Product Number | Product Name | Outer sheath | Color | Length Qty | Qty / Pallet |

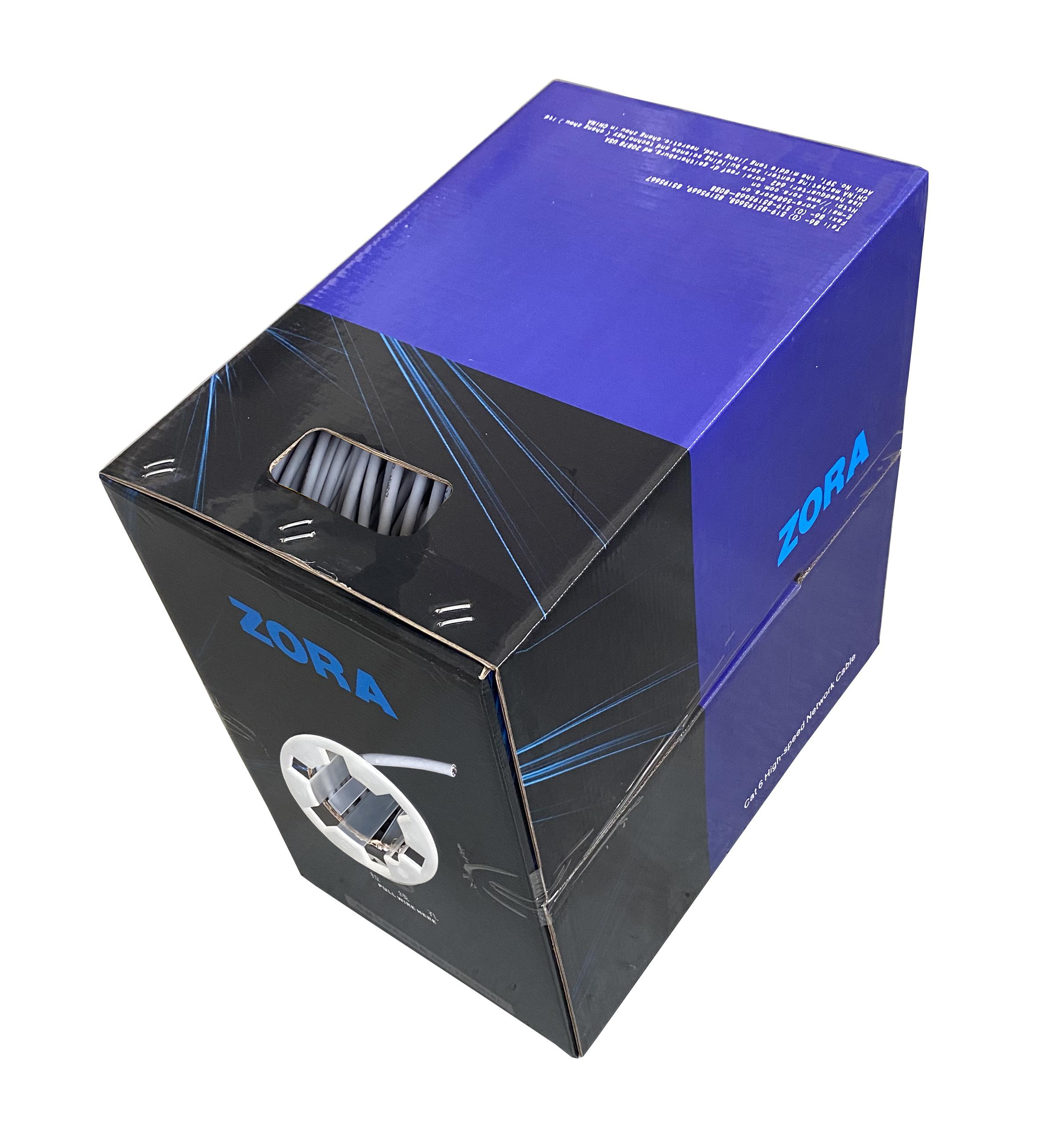

ZRC601004DL | Cat 6 UTP 4P LSZH Cable | LSZH | gray | 305Mtr Box | 24 or 40 |
Cable color can be customized according to customer requirements

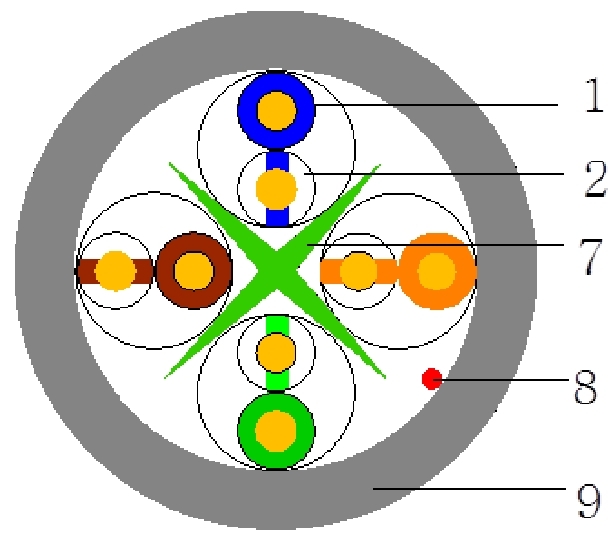

Construction | |||
1.Conductor（mm） | Solid bare copper 23AWG |
| |
2.Insulation（mm） | HDPE 1.00±0.08 | ||
3.Color Code |
White-Orange(Stripe)/Orange White-Green(Stripe)/Green White-Brown(Stripe)/Brown | ||
4.Wrapping（mm） | ----- | ||
5.Screen（mm） | ----- | ||
6.Drain wire（mm） | ----- | ||
7.Cross | Yes | ||
8.Rip cord | Yes | ||
9.Jacket（mm） | Material | LSZH | |
Nom.thickness | 0.5 | ||
Color | Grey | ||
Nom.diameter | 6.0±0.3 | ||
Mechanical characteristics | |
Operating temperature | -20~60℃ |
Installation temperature | 0~60℃ |
Tensile strength.Max | 100N |
Bending radius | 8D |
Flame resistant | IEC 61034-2 |
Length of Delivery | 305m/box |
Electrical characteristics(20℃) | |
Conductor resistance .Max | 9.5Ω/100m |
Conductor resistance unbalance .Max | In pair:2%|Between pairs:4% |
Insulation resistance(DC 500V/1 min) .Min | 5000MΩ·km |
Dielectric strength（C-C, .DC.1min） | 1kV |
Mutual capacitance .Max | 5.6nF/100m |
| Performance Statistics | |||||||
Frequency (MHz) | Attenuation (dB/100m) | NEXT (dB) | PSNEXT (dB) | ELFEXT (dB/100m) | PSELFEXT (dB/100m) | Delay (ns/100m) | RL (dB) |
4 | 3.8 | 65.3 | 63.3 | 55.8 | 52.8 | 552.0 | 23.0 |
8 | 5.3 | 60.8 | 58.8 | 49.7 | 46.7 | 546.7 | 24.5 |
10 | 6.0 | 59.3 | 57.3 | 47.8 | 44.8 | 545.4 | 25.0 |
16 | 7.6 | 56.2 | 54.2 | 43.7 | 40.7 | 543.0 | 25.0 |
20 | 8.5 | 54.8 | 52.8 | 41.8 | 38.8 | 542.0 | 25.0 |
25 | 9.5 | 53.3 | 51.3 | 39.8 | 36.8 | 541.2 | 24.3 |
31.25 | 10.7 | 51.9 | 49.9 | 37.9 | 34.9 | 540.4 | 23.6 |
62.5 | 15.4 | 47.4 | 45.4 | 31.9 | 28.9 | 538.6 | 21.5 |
100 | 19.8 | 44.3 | 42.3 | 27.8 | 24.8 | 537.6 | 20.1 |
200 | 29.0 | 39.8 | 37.8 | 21.8 | 18.8 | 536.5 | 18.0 |
250 | 32.8 | 38.3 | 36.3 | 19.8 | 16.8 | 536.3 | 17.3 |

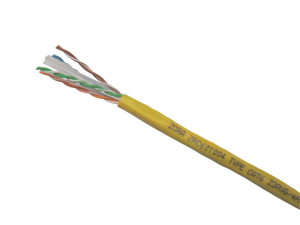

ZORA Cat 6 UTP 4P PVC Cable FAQ
Cat6 Unshielded Twisted Pair (UTP) cable is a standardized twisted-pair cable with four copper pairs and no metallic shielding. It complies with TIA/EIA-568-B.2 specifications, supporting Gigabit Ethernet (1Gbps) and short-range 10Gbps networks, ideal for high-bandwidth, low-interference environments.
Enterprise LANs: Connecting switches, routers, and servers.
Surveillance Systems: Transmitting HD video from IP cameras.
Smart Homes: 4K streaming, NAS device connectivity.
Office Networks: Powering PoE devices like wireless APs and IP phones.
Transmission Rate: 1Gbps (100m), 10Gbps (up to 55m).
Bandwidth: 250MHz.
Max Distance: 100m (1Gbps).
Noise Resistance: Reduced crosstalk (NEXT) via twisted-pair design.
Parameter | Cat6 UTP | Cat5e | Cat6A |
Bandwidth | 250MHz | 100MHz | 500MHz |
10Gbps Distance | 55m | Not supported | 100m |
Wire Gauge | 0.57mm (23AWG) | 0.51mm (24AWG) | 0.57mm (23AWG) |
Cost | Moderate | Low | High |
Bend Radius: ≥4x cable diameter (e.g., 24mm for 6mm cable).
Avoid Interference: Keep ≥30cm distance from power cables.
Connector Quality: Use Cat6-rated RJ45 plugs with all 8 pins terminated.
Post-Install Testing: Verify compliance with TIA/EIA standards using a cable certifier.
Yes! Cat6 UTP supports PoE (802.3af/at/bt) with up to 90W power delivery (PoE++).
White-Blue(Stripe)/Blue
