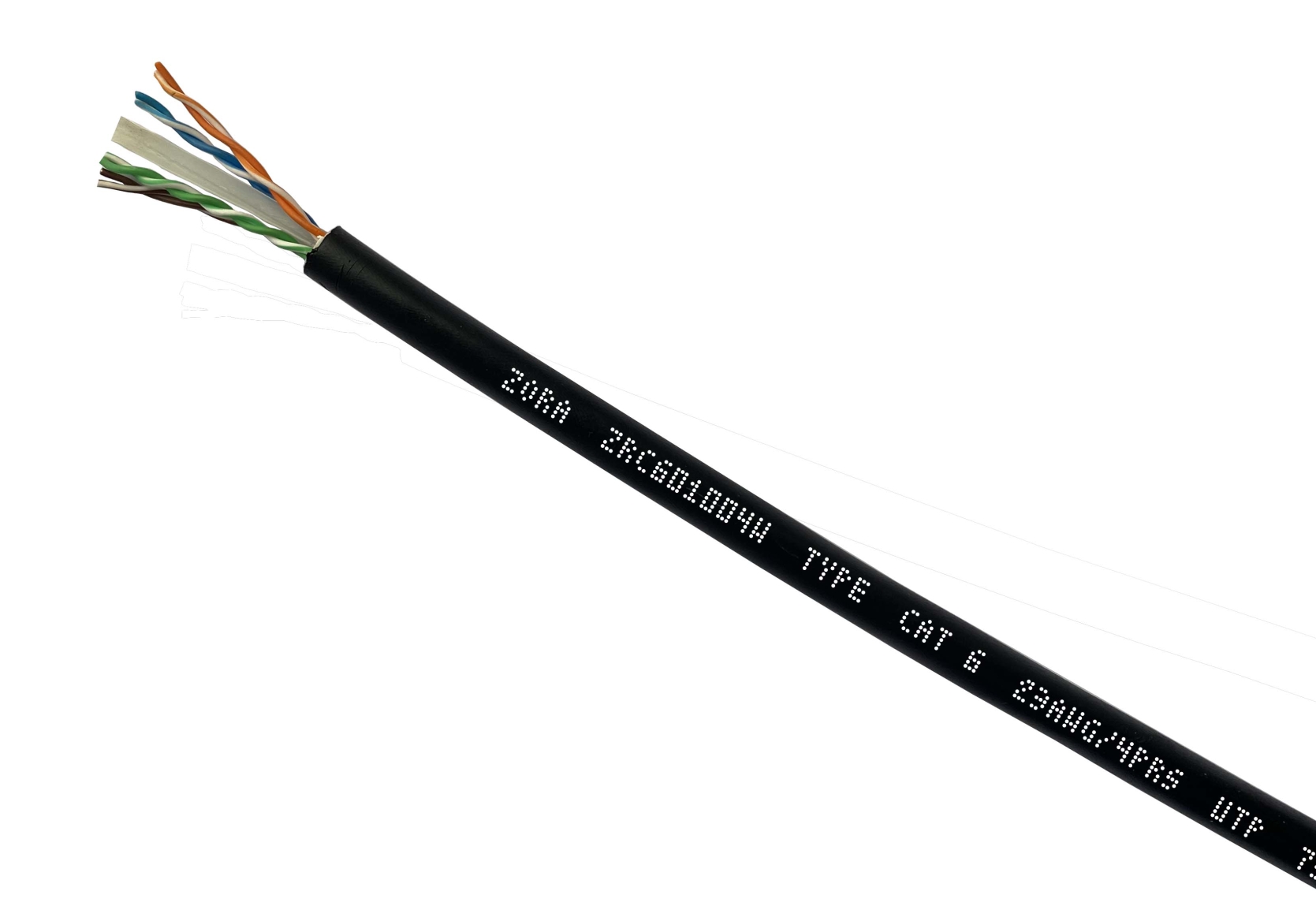

ZORA Cat 6 UTP PE OUTDOOR Cable

ZORA Cat 6 UTP PE Outdoor PVC Cable is a high-performance network cable designed for outdoor environments. It adopts unshielded structure, and its transmission performance is in accordance with Cat6 standard (250MHz bandwidth), supporting 1Gbps long-distance transmission (100 meters) and 10Gbps short-distance transmission (within 55 meters), and it reduces crosstalk through the oxygen-free copper conductor (23AWG) and cross-bone Designed to reduce crosstalk and ensure signal stability. The sheath is made of waterproof, UV-resistant and water-blocking PE material, which can adapt to extreme temperatures from -40°C to +75°C. ZORA Cat6 UTP PE Outdoor Cable is widely used in outdoor monitoring systems, industrial IoT, smart city projects and park network cabling, taking into account the high speed transmission and the adaptability to complex environments, and it is a cost-effective choice for outdoor short and medium-distance networking.

Model:
ZRC601004W
Brand:
ZORA

Availability:



Inquire

Product Description

ZORA CAT6 UTP PE Outdoor Cable Description

ZORA Cat 6 UTP PE Outdoor PVC Cable is a high-performance network cable designed for outdoor environments. It adopts unshielded structure, and its transmission performance is in accordance with Cat6 standard (250MHz bandwidth), supporting 1Gbps long-distance transmission (100 meters) and 10Gbps short-distance transmission (within 55 meters), and it reduces crosstalk through the oxygen-free copper conductor (23AWG) and cross-bone Designed to reduce crosstalk and ensure signal stability. The sheath is made of waterproof, UV-resistant and water-blocking PE material, which can adapt to extreme temperatures from -40°C to +75°C.

ZORA Cat6 UTP PE Outdoor Cable is widely used in outdoor monitoring systems, industrial IoT, smart city projects and park network cabling, taking into account the high speed transmission and the adaptability to complex environments, and it is a cost-effective choice for outdoor short and medium-distance networking.

ZORA CAT6 UTP PE Outdoor Cable Features

1、Structure: The cable adopts a unique internal cross-bone design, which better ensures the outer diameter and effectively improves the electrical properties such as NEXT and FEXT.

2、Copper material: domestic high-quality oxygen-free copper;

3、Wire：Adopting international popular and advanced tightly wrapped wire;

4、Bandwidth: the output and input bandwidth can reach 250MHz, supporting Gigabit Ethernet data transmission;

5、Stranded pitch: the cable has a precision stranded pitch;

6、Sheath: outer sheath is water-resistant PE plastic, inner sheath is flame retardant polyethylene;

7、Color: black;

8、Provide cable length marking to reduce waste.

Reference Standard

YD/T1019
ANSI/TIA 568.2-D
ISO/IEC 11801
IEC 60332-1

Ordering Information
Product Number	Product Name	Outer sheath	Color	Length Qty	Qty / Pallet
ZRC601004W	Cat 6 UTP PE Outdoor Cable	PE	black	305Mtr Box	24 or 40

Technical Specification

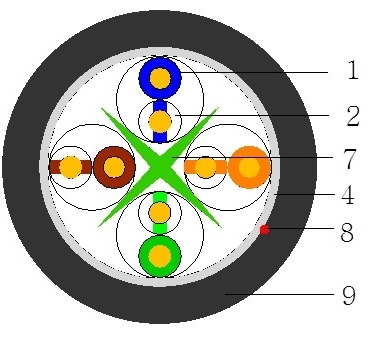

Construction
1.Conductor（mm）	Solid bare copper 23AWG
2.Insulation（mm）	HDPE 1.00±0.08
3.Color Code	White-Blue(Stripe)/Blue White-Orange(Stripe)/Orange White-Green(Stripe)/Green White-Brown(Stripe)/Brown
4.Wrapping（mm）	PET tape0.02
5.Screen（mm）	-----
6.Drain wire（mm）	-----
7.Cross	Yes
8.Rip cord	Yes
9.Jacket（mm）	Material	PE
	Nom.thickness	0.5
	Color	Black
	Nom.diameter	6.0±0.3

Mechanical characteristics
Operating temperature	-20~60℃
Installation temperature	0~60℃
Tensile strength.Max	100N
Bending radius	8D
Flame resistant	IEC 60332-1

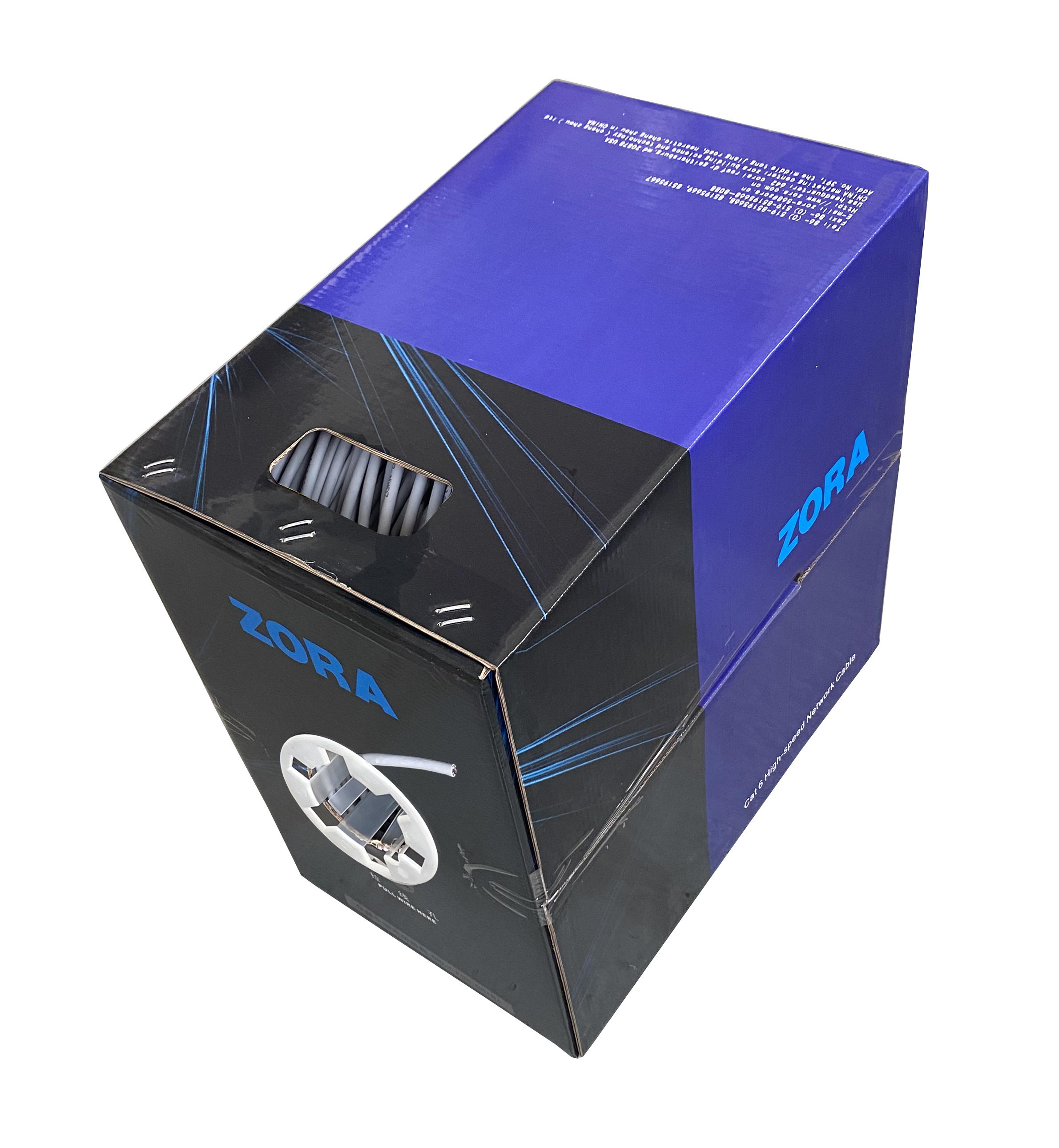

Length of Delivery	305m/box

Electrical characteristics(20℃)
Conductor resistance .Max	9.5Ω/100m
Conductor resistance unbalance .Max	In pair:2%\|Between pairs:4%
Insulation resistance(DC 500V/1 min) .Min	5000MΩ·km
Dielectric strength（C-C, .DC.1min）	1kV
Mutual capacitance .Max	5.6nF/100m

Performance Statistics
Frequency (MHz)	Attenuation (dB/100m)	NEXT (dB)	PSNEXT (dB)	ELFEXT (dB/100m)	PSELFEXT (dB/100m)	Delay (ns/100m)	RL (dB)
4	3.8	65.3	63.3	55.8	52.8	552.0	23.0
8	5.3	60.8	58.8	49.7	46.7	546.7	24.5
10	6.0	59.3	57.3	47.8	44.8	545.4	25.0
16	7.6	56.2	54.2	43.7	40.7	543.0	25.0
20	8.5	54.8	52.8	41.8	38.8	542.0	25.0
25	9.5	53.3	51.3	39.8	36.8	541.2	24.3
31.25	10.7	51.9	49.9	37.9	34.9	540.4	23.6
62.5	15.4	47.4	45.4	31.9	28.9	538.6	21.5
100	19.8	44.3	42.3	27.8	24.8	537.6	20.1
200	29.0	39.8	37.8	21.8	18.8	536.5	18.0
250	32.8	38.3	36.3	19.8	16.8	536.3	17.3

ZORA Cat 6 UTP PE OUTDOOR Cable FAQ

1、What is Cat6 UTP PE Outdoor Cable?

Cat 6 UTP PE OUTDOOR Cable is an unshielded twisted-pair cable designed for outdoor environments, compliant with TIA/EIA-568-C.2. It features four oxygen-free copper pairs, a waterproof/UV-resistant PE jacket, and supports Gigabit Ethernet (1Gbps) and short-range 10Gbps transmission. Suitable for aerial, conduit, or direct burial installations.

2、What are the key applications?

Outdoor Surveillance: Connecting IP cameras and NVRs.

Campus Networks: Inter-building links (schools, factories).

Smart City IoT: Streetlight IoT device connectivity.

Temporary Networks: Events or construction sites.

3、What are the performance specifications?

Speed: 1Gbps (100m), 10Gbps (up to 55m).

Bandwidth: 250MHz.

Waterproof Rating: IP67 (dust/water resistance).

Temperature Range: -40°C to +75°C.

4、How does it differ from indoor Cat6 cables?

Parameter	Outdoor Cat6 UTP	Indoor Cat6 UTP
Jacket	Waterproof PE/LSZH	PVC
UV Resistance	Yes	No
Installation	Burial/Aerial/Conduit	Indoor raceways
Cost	30-50% higher	Moderate
