ZRCB5101004
ZORA
Product Description

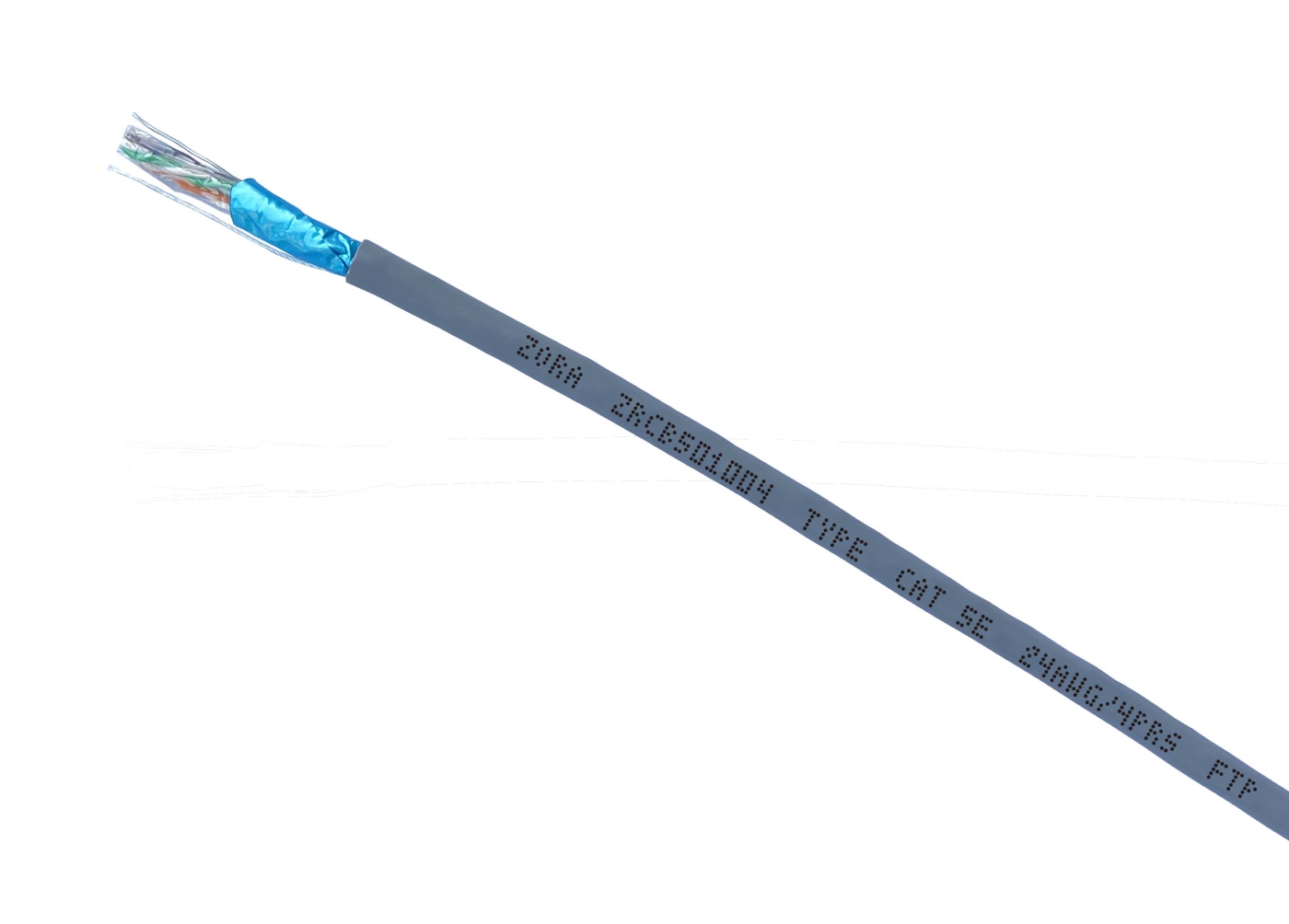

ZORA 5e FTP 4P PVC cable is specially designed for Ethernet, which has better crosstalk reduction and signal stability. It consists of 8 copper wires and 4 pairs of shielded twisted pairs. ZORA 5e FTP 4P PVC cable supports 100MHz bandwidth and 100-meter transmission of 1Gbps. It is an ideal choice for wiring local area networks in homes, offices, hospitals and data centers and connecting computers, routers and switches.
ZORA 5e FTP 4P PVC cable meets the standard (TIA/EIA-568).
1.Outer sheath: PVC material or low smoke and non-halogen (LSZH) material, with cable ripcord inside;
2.With the help of aluminum foil shielding layer and tinned copper wire, to achieve excellent shielding effect, with very high anti-interference ability and confidentiality performance;
3.Wire gauge: 24AWG, copper core material is oxygen-free copper;
4.Insulation layer: PE material;
5.Transmission bandwidth: 100MHz;
6.Cable impedance: 100 ± 15Ω;
7.Sheath color: environmental Grey.
YD/T1019
ANSI/TIA 568.2-D
ISO/IEC 11801
IEC 60332-1
| Ordering Information | |||||
|---|---|---|---|---|---|
Product Number | Product Name | Outer sheath | Color | Length Qty | Qty / Pallet |
ZRCB5101004 | Cat 5e FTP 4P Pvc Cable | PVC | gray | 305Mtr Box | 24 or 40 |
Cable color can be customized according to customer requirements

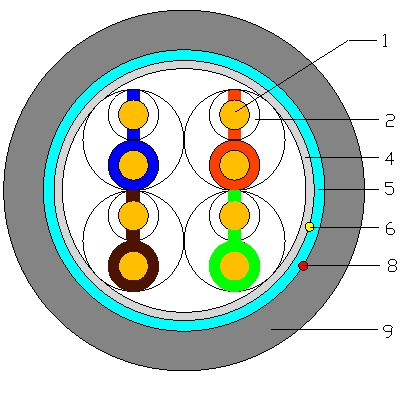

Construction | |||
1.Conductor（mm） | Solid bare copper 24AWG |
| |
2.Insulation（mm） | HDPE 1.0±0.08 | ||
3.Color Code | White-Blue(Stripe)/Blue
White-Green(Stripe)/Green White-Brown(Stripe)/Brown | ||
4.Wrapping（mm） | PET tape | ||
5.Screen（mm） | Al foil | ||
6.Drain wire（mm） | Tinned copper 0.50 | ||
7.Braid | ----- | ||
8.Rip cord | Yes | ||
9.Jacket（mm） | Material | PVC | |
Nom.thickness | 0.5 | ||
Color | Grey | ||
Nom.diameter | 5.9±0.3 | ||
Mechanical characteristics | |
Operating temperature | -20~60℃ |
Installation temperature | -20~60℃ |
Tensile strength.Max | 80N |
Bending radius | 8D |
Flame resistant | IEC 60332-1 |
Length of Delivery | 305m/box |
Electrical characteristics(20℃) | |
Conductor resistance .Max | 9.5Ω/100m |
Conductor resistance unbalance .Max | In pair:2% |Between pairs:4% |
Insulation resistance(DC 500V/1 min) .Min | 5000MΩ·km |
Dielectric strength（C-C, .DC.1min） | 1kV |
Mutual capacitance .Max | 5.6nF/100m |
Propagation Delay Skew(1MHz~100MHz:）.Max | 45ns/100m |
| Performance Statistics | |||||||
Frequency (MHz) | Attenuation (dB/100m) | NEXT (dB) | PSNEXT (dB) | ELFEXT (dB/100m) | PSELFEXT (dB/100m) | Delay (ns/100m) | RL (dB) |
4 | 4.1 | 56.3 | 53.3 | 51.8 | 48.8 | 552.0 | 23.0 |
8 | 5.8 | 51.8 | 48.8 | 45.7 | 42.7 | 546.7 | 24.5 |
10 | 6.5 | 50.3 | 47.3 | 43.8 | 40.8 | 545.4 | 25.0 |
16 | 8.2 | 47.2 | 44.3 | 39.7 | 36.7 | 543.0 | 25.0 |
20 | 9.3 | 45.8 | 42.8 | 37.8 | 34.8 | 542.0 | 25.0 |
25 | 10.4 | 44.3 | 41.3 | 35.8 | 32.8 | 541.2 | 24.3 |
31.25 | 11.7 | 42.9 | 39.9 | 33.9 | 30.9 | 540.4 | 23.6 |
62.5 | 17.0 | 38.4 | 35.4 | 27.9 | 24.9 | 538.6 | 21.5 |
100 | 22.0 | 35.3 | 32.3 | 23.8 | 20.8 | 537.6 | 20.1 |
ZORA Cat5e FTP 4P Cable FAQ
Cat5e FTP 4P cable is an Ethernet cable compliant with TIA/EIA-568-B standards. It consists of four copper pairs with individual or overall metallic shielding (foil/braid) to minimize electromagnetic interference (EMI), supporting Gigabit Ethernet (1Gbps) in high-noise industrial or medical environments.
Industrial Automation: Wiring near motors and inverters.
Medical Systems: MRI rooms and operating theaters.
High-Density Data Centers: Reducing cross-talk between cabinets.
Transportation Control: Subway signal systems and airport networks.
Speed: 1Gbps (up to 100 meters).
Bandwidth: 100MHz.
Shielding Types: F/UTP (overall foil).
Noise Resistance: 20-30dB lower crosstalk (NEXT) than UTP.
Parameter | Cat5e FTP | Cat5e UTP |
Shielding | Foil | None |
EMI Resistance | High (factories/hospitals) | Moderate (offices) |
Installation | Complex (requires grounding) | Simple |
Cost | 30-50% higher | Low |
Grounding: Shield layers must be grounded at both ends.
Connectors: Use shielded RJ45 plugs with metal shells.
Bend Radius: ≥8x cable diameter (e.g., 48mm for 6mm cable).
Avoid Mixing: Maintain ≥30cm distance from UTP cables.
Yes! Supports 802.3af (15W) and 802.3at (30W), provided shields are properly grounded.
White-Orange(Stripe)/Orange
