ZRC5101004W
ZORA
Product Description

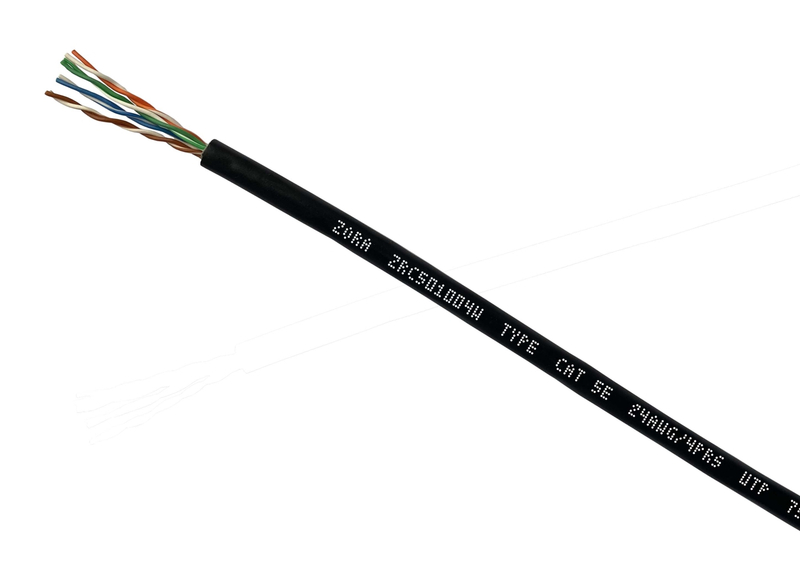

The ZORA Cat 5e UTP PE outdoor cable is specially designed for Ethernet and has better crosstalk reduction and signal stability. The external sheath is made of waterproof and UV-resistant PE sheath and is suitable for extreme temperatures (-40°C to +75°C). Main applications: Outdoor security monitoring, campus network interconnection, smart agriculture and Internet of Things, temporary network deployment.
The ZORA Cat 5e UTP PE outdoor cable supports a bandwidth of 100 MHZ and a 100-meter transmission of up to 1Gbps. It is an ideal choice for local area network cabling in homes, offices, hospitals and data centers, as well as for connecting computers, routers and switches.
The ZORA Cat 5eUTP PE outdoor cable complies with the standard (TIA/EIA-568).
1Outer sheath: HDPE plastic with cable ripcord inside;
2Wire gauge: 24AWG, copper core material is oxygen-free copper;
3Insulation layer: PE material;
4Transmission bandwidth: 100MHz;
5Cable impedance: 100 ± 15Ω;
6Sheath color: environmental black.
YD/T1019
ANSI/TIA 568.2-D
ISO/IEC 11801
IEC 60332-1
| Ordering Information | |||||
|---|---|---|---|---|---|
Product Number | Product Name | Outer sheath | Color | Length Qty | Qty / Pallet |
ZRC501004W | Cat 5e UTP PE Outdoor Cable | PE | black | 305Mtr Box | 24 or 40 |
Construction | |||
1.Conductor（mm） | Solid bare copper 24AWG |
| |
2.Insulation（mm） | HDPE 0.88±0.05 | ||
3.Color Code | White-Blue(Stripe)/Blue
White-Green(Stripe)/Green White-Brown(Stripe)/Brown | ||
4.Wrapping（mm） | PET tape | ||
5.Screen（mm） | ----- | ||
6.Drain wire（mm） | ----- | ||
7.Braid | ----- | ||
8.Rip cord | Yes | ||
9.Jacket（mm） | Material | HDPE | |
Nom.thickness | 0.5 | ||
Color | Blue | ||
Nom.diameter | 5.0±0.3 | ||
Mechanical characteristics | |
Operating temperature | -20~75℃ |
Installation temperature | -20~75℃ |
Tensile strength.Max | 100N |
Bending radius | 8D |
Flame resistant | IEC 60332-1 |
Length of Delivery | 305m/box |
Electrical characteristics(20℃) | |
Conductor resistance .Max | 9.5Ω/100m |
Conductor resistance unbalance .Max | In pair:2% |Between pairs:4% |
Insulation resistance(DC 500V/1 min) .Min | 5000MΩ·km |
Dielectric strength（C-C, .DC.1min） | 1kV |
Mutual capacitance .Max | 5.6nF/100m |
Propagation Delay Skew(1MHz~100MHz:）.Max | 45ns/100m |
| Performance Statistics | |||||||
Frequency (MHz) | Attenuation (dB/100m) | NEXT (dB) | PSNEXT (dB) | ELFEXT (dB/100m) | PSELFEXT (dB/100m) | Delay (ns/100m) | RL (dB) |
4 | 4.1 | 56.3 | 53.3 | 51.8 | 48.8 | 552.0 | 23.0 |
8 | 5.8 | 51.8 | 48.8 | 45.7 | 42.7 | 546.7 | 24.5 |
10 | 6.5 | 50.3 | 47.3 | 43.8 | 40.8 | 545.4 | 25.0 |
16 | 8.2 | 47.2 | 44.3 | 39.7 | 36.7 | 543.0 | 25.0 |
20 | 9.3 | 45.8 | 42.8 | 37.8 | 34.8 | 542.0 | 25.0 |
25 | 10.4 | 44.3 | 41.3 | 35.8 | 32.8 | 541.2 | 24.3 |
31.25 | 11.7 | 42.9 | 39.9 | 33.9 | 30.9 | 540.4 | 23.6 |
62.5 | 17.0 | 38.4 | 35.4 | 27.9 | 24.9 | 538.6 | 21.5 |
100 | 22.0 | 35.3 | 32.3 | 23.8 | 20.8 | 537.6 | 20.1 |
ZORA Cat 5e UTP PE OUTDOOR Cable FAQ
Cat 5e UTP PE OUTDOOR Cable is an Ethernet cable designed for outdoor environments, compliant with TIA/EIA-568-B. It features four oxygen-free copper pairs, a waterproof/UV-resistant PE jacket, and supports Gigabit Ethernet (1Gbps). Suitable for aerial, conduit, or direct burial installations, offering durability and cost-effectiveness.
Outdoor Surveillance: Connecting IP cameras and NVRs.
Campus Networks: Cross-building data links (schools, factories).
Smart Agriculture: Farm sensor networks.
Temporary Networks: Events or construction sites.
Speed: 1Gbps (100m),.
Bandwidth: 100MHz.
Waterproof Rating: IP67 (dust/water resistance).
Temperature Range: -40°C to +75°C.
Parameter | Outdoor Cat5e UTP | Indoor Cat5e UTP |
Jacket | Waterproof PE/LSZH | PVC |
UV Resistance | Yes | No |
Installation | Burial/Aerial/Conduit | Indoor raceways |
Cost | 20-40% higher | Low |
Waterproofing: Seal connectors with waterproof tape or heat-shrink tubing.
Grounding: Ground both ends for lightning protection in long-distance runs.
Bend Radius: ≥8x cable diameter (e.g., 64mm for 8mm cable).
Tension Control: Use messenger wires for aerial installation to avoid stretching.
Yes! Supports 802.3af (15W) and 802.3at (30W) for outdoor APs and cameras.
White-Orange(Stripe)/Orange
