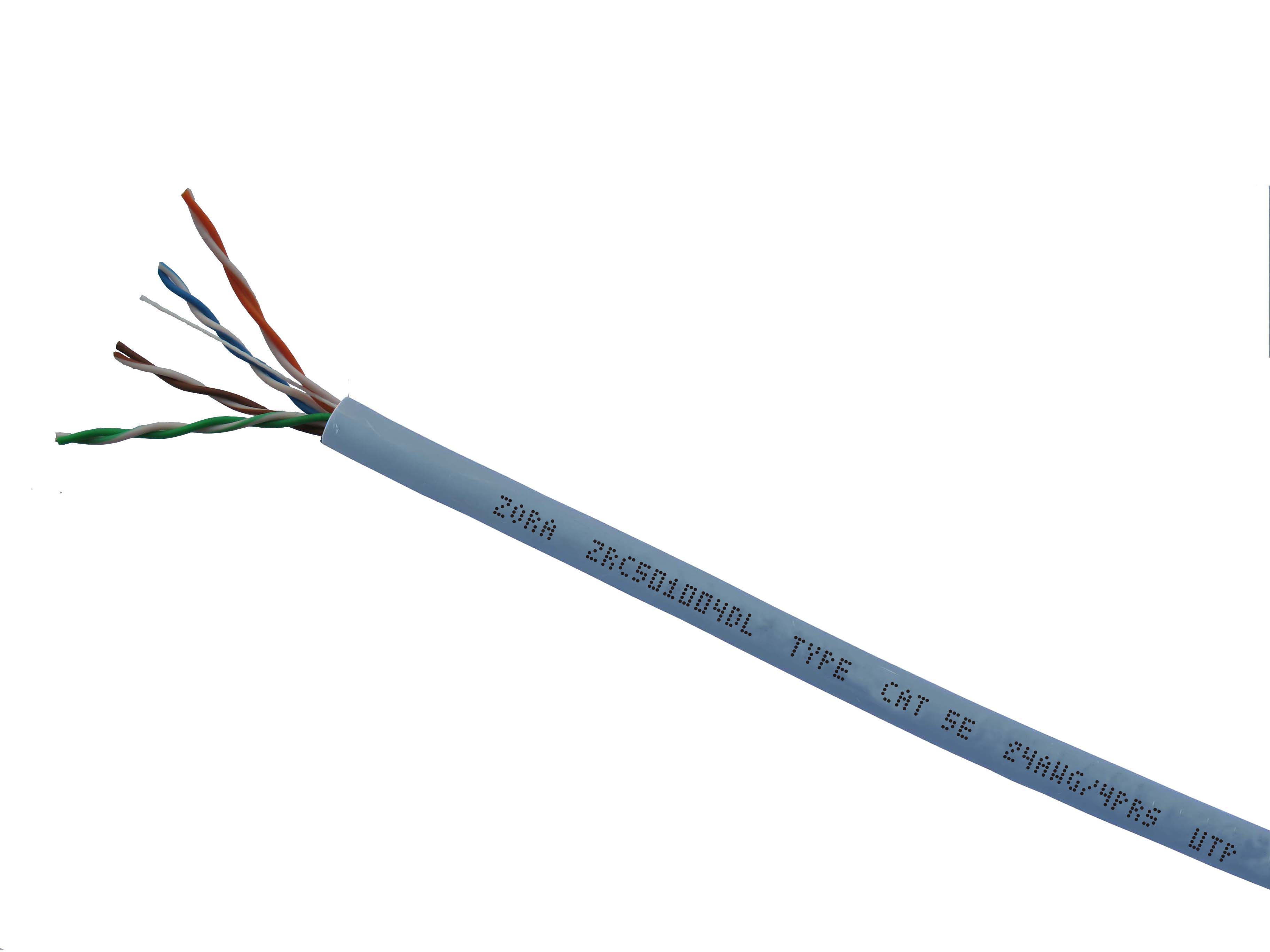

ZORA Cat 5E UTP 4P Lszh Cable

ZORA Cat 5E UTP 4P Lszh Cable, supporting a bandwidth of 100 MHz and transmitting Ethernet cables up to 1Gbps. Low smoke zero halogen (LSZH) cables emit very limited smoke and are halogen-free when exposed to fire, making them an ideal choice for local area network cabling in homes, offices, hospitals, schools, and data centers.

Model:
ZRC5101004DL
Brand:
ZORA

Availability:



Inquire

Product Description

ZORA Cat 5e UTP 4P Lszh Cable Description

ZORA 5e UTP 4P LSZH cable is specially designed for Ethernet, which has better crosstalk reduction and signal stability. It consists of 8 copper wires and 4 pairs of shielded twisted pairs. Zora 5UTP 4PLSZH cable supports 100MHz bandwidth and 1Gbps 100-meter transmission. It is an ideal choice for local area network wiring and connecting computers, routers and switches in homes, offices, hospitals and data centers.

ZORA 5e UTP 4P LSZH cable meets the standard (TIA/EIA-568).

ZORA Cat 5e UTP 4P Lszh Cable Features

1Outer sheath: PVC material or low smoke and non-halogen (LSZH) material, with cable ripcord inside;

2Wire gauge: 24AWG, copper core material is oxygen-free copper;

3Insulation layer: PE material;

4Transmission bandwidth: 100MHz;

5Cable impedance: 100 ± 15Ω;

6Sheath color: environmental Grey.

Reference Standard

YD/T1019
ANSI/TIA 568.2-D
ISO/IEC 11801
IEC 61034-2

Ordering Information
Product Number	Product Name	Outer sheath	Color	Length Qty	Qty / Pallet
ZRC5101004DL	Cat 5e UTP 4P Lszh Cable	LSZH	gray	305Mtr Box	24 or 40

Cable color can be customized according to customer requirements

Technical Specifications

Construction
1.Conductor（mm）	Solid bare copper 24AWG
2.Insulation（mm）	HDPE 0.88±0.05
3.Color Code	White-Blue(Stripe)/Blue White-Orange(Stripe)/Orange White-Green(Stripe)/Green White-Brown(Stripe)/Brown
4.Wrapping（mm）	-----
5.Screen（mm）	-----
6.Drain wire（mm）	-----
7.Braid	-----
8.Rip cord	Yes
9.Jacket（mm）	Material	LSZH
	Nom.thickness	0.5
	Color	Grey
	Nom.diameter	5.0±0.3

Mechanical characteristics
Operating temperature	-20~60℃
Installation temperature	-20~60℃
Tensile strength.Max	100N
Bending radius	8D
Flame resistant	IEC 61034-2
Length of Delivery	305m/box

Electrical characteristics(20℃)
Conductor resistance .Max	9.5Ω/100m
Conductor resistance unbalance .Max	In pair:2% \|Between pairs:4%
Insulation resistance(DC 500V/1 min) .Min	5000MΩ·km
Dielectric strength（C-C, .DC.1min）	1kV
Mutual capacitance .Max	5.6nF/100m
Propagation Delay Skew(1MHz~100MHz:）.Max	45ns/100m

Performance Statistics
Frequency (MHz)	Attenuation (dB/100m)	NEXT (dB)	PSNEXT (dB)	ELFEXT (dB/100m)	PSELFEXT (dB/100m)	Delay (ns/100m)	RL (dB)
4	4.1	56.3	53.3	51.8	48.8	552.0	23.0
8	5.8	51.8	48.8	45.7	42.7	546.7	24.5
10	6.5	50.3	47.3	43.8	40.8	545.4	25.0
16	8.2	47.2	44.3	39.7	36.7	543.0	25.0
20	9.3	45.8	42.8	37.8	34.8	542.0	25.0
25	10.4	44.3	41.3	35.8	32.8	541.2	24.3
31.25	11.7	42.9	39.9	33.9	30.9	540.4	23.6
62.5	17.0	38.4	35.4	27.9	24.9	538.6	21.5
100	22.0	35.3	32.3	23.8	20.8	537.6	20.1

ZORA Cat5e UTP 4P Cable FAQ

1What is Cat5e UTP 4P Cable?

Cat5e UTP 4P cable is an Ethernet cable compliant with TIA/EIA-568-B standards. It consists of four oxygen-free copper pairs without metallic shielding, supporting Gigabit Ethernet (1Gbps) transmission. Ideal for office, home, and short-range networks, it offers cost-effectiveness and easy installation.

2 What are the key applications?

Home Networks: Connecting routers, PCs, and smart TVs.

Office Wiring: Gigabit LANs and IP phone systems.

Surveillance: Transmitting SD/HD video from IP cameras.

Small Businesses: Interconnecting NAS devices and printers.

3What are the performance specifications?

Speed: 1Gbps (up to 100 meters).

Bandwidth: 100MHz.

Wire Gauge: 24AWG (0.51mm).

4How does it differ from Cat5/Cat6?

Parameter	Cat5e UTP	Cat5 UTP	Cat6 UTP
Bandwidth	100MHz	100MHz	250MHz
1Gbps Distance	100 meters	100 meters	100 meters
10Gbps Support	No (theoretical ≤45m)	No	55 meters (10Gbps)
Cost	Low	Lowest	Moderate
