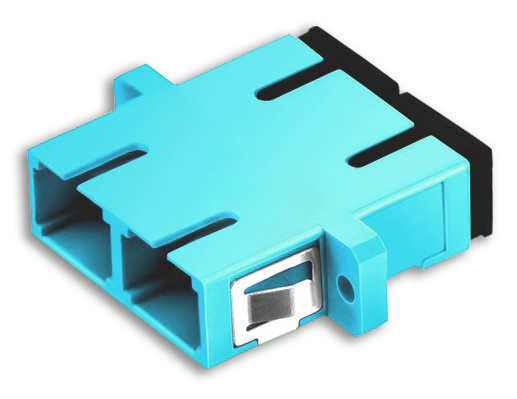

ZORA OM3 Multimode Dual Core Coupler SC-SC Description

The ZORA OM3 Multimode Dual Core Coupler SC-SC (also known as an adapter) is designed to provide a system of precise alignment of optical fibers for two paired fiber connectors. It is the precision alignment of the two end faces of an optical fiber to maximize the coupling of the light energy output from the transmitting fiber to the receiving fiber.

ZORA's fiber optic couplers allow transmission of a light source between the fibers with minimal insertion loss while maintaining excellent interactivity and insertion and removal life (times).

Standards Compliance

• ANSI/TIA 568 D.3

• ISO/IEC 11801

ZORA OM3 Multimode Dual Core coupler SC-SC Features

• adopts high precision zirconia to ensure good physical bearing capacity and plugging performance;

• good compatibility, small fiber concentricity error;

• excellent plugging life (times);

• low insertion loss, high reliability and stability;

• offers a wide range of model classifications: FC, SC, ST, LC, MTRJ, MU, and so on.

Product Applications

• Fiber Optic Communications;

• Regional, Wide Area & Global Networks;

• High Electromagnetic Interference (EMI / RFI) environments;

Technical specification

1: What is an OM3 Multimode Duplex SC-SC Coupler?

It’s a duplex (dual-core) connector for OM3 multimode fiber with SC interfaces, enabling simultaneous connection of two fibers for high-speed data transmission.

2: What are OM3 fiber specifications?

OM3 supports 850nm/1300nm wavelengths, with 2000MHz·km bandwidth (850nm), suitable for 10Gbps (up to 300m).

3: Advantages of SC connectors?

 SC features a square push-pull design, ensuring stable connections in high-density setups.

4: Is it compatible with OM1/OM2 fibers?

Physically yes, but mixing may limit performance due to OM3’s higher bandwidth. Use with OM3 or higher-grade fiber is recommended.

5: Typical applications?

 Data centers, enterprise networks, HPC, and other 10G+ scenarios.
