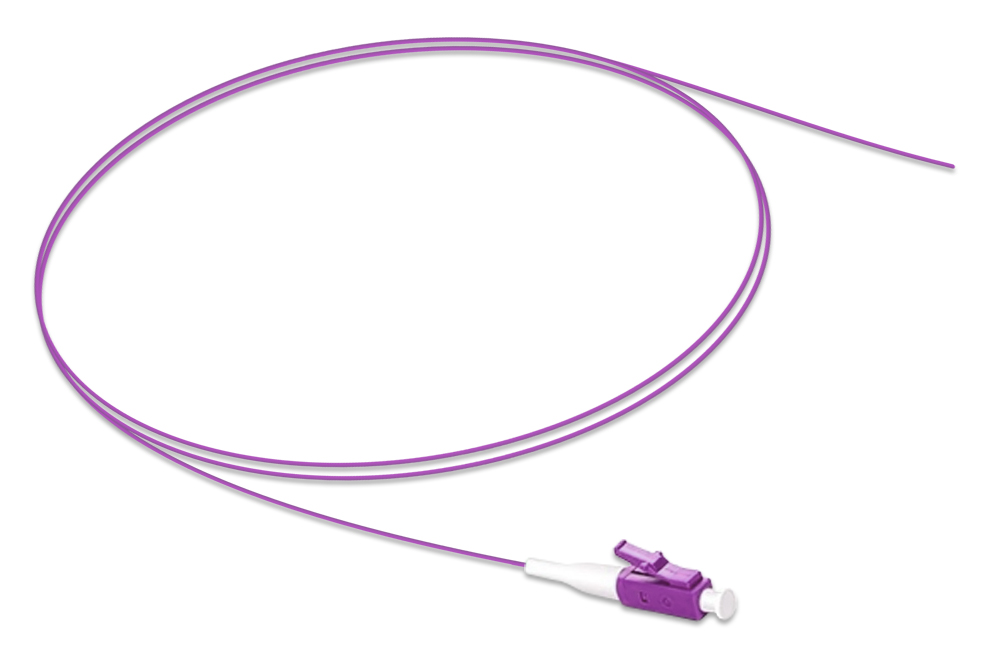

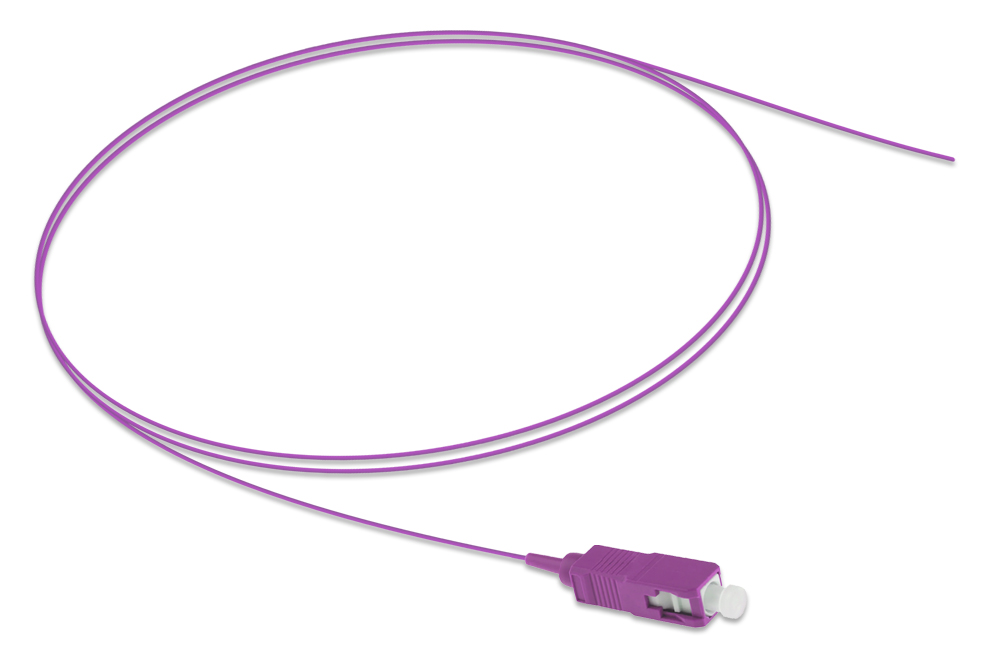

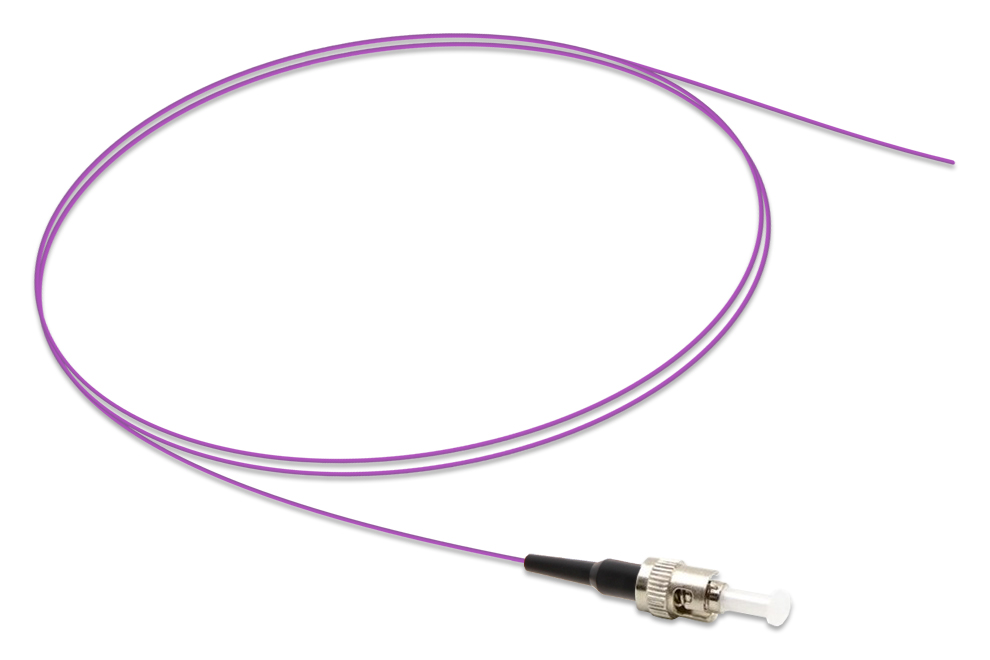

ZORA OM4 Multimode Fiber Optic Pigtails

ZORA OM4 Multimode Fiber Optic Pigtails Description

ZORA's factory-based assembly and mechanical connector polishing systems provide a wide range of fiber optic type connectors to ensure superior performance, interconnectivity and durability. All pigtails are 100% fully tested through standard test procedures.

ZORA OM4 Multimode Fiber Optic Pigtails are fusion spliced or mechanically docked to fiber optic cables and are connected using a variety of connector types.

ZORA OM4 Multimode Fiber Optic Pigtails Features

• 100% end-face inspection and compliant with GR-326-CORE；

• High-quality, machine-polished connectors；

• have consistent low-loss performance；

• has an easily strippable fiber buffer；

• short buffered connector jacket for easy high-density fiber management applications；

• Offers a wide range of connector types: FC, SC, ST, LC, MTRJ, MU and more.




Reference Standard

• ANSI/TIA 568 C.0

• ISO/IEC 11801




OM4 Multimode Fiber Optic Pigtails Applications

• Splicing of optical fibers by mechanical splice method ;

• Splicing of optical fibers by fusion splicing method;

• Temporary splicing of fiber optic cables.

Other lengths available on request

1: What is an OM4 Multimode Fiber Optic Pigtail?

An OM4 multimode fiber optic pigtail is a component with one end terminated by a fiber connector (e.g., LC, SC, MTP) and the other end as bare fiber (ready for fusion splicing). It uses OM4-grade 50/125µm laser-optimized multimode fiber, designed for high-speed, short-distance data transmission, ideal for high-density data centers and future-proof networks.

2: What are the key applications of OM4 Pigtails?

Data Centers: Connecting 40G/100G/200G/400G Ethernet equipment to fiber distribution panels.

High-Performance Computing (HPC): High-speed interconnects for server clusters and storage systems.

Enterprise Core Networks: Backbone links requiring long-distance and high bandwidth.

CWDM Systems: Multi-wavelength signal transmission.

3:  What are the performance specifications?

Fiber Type: 50/125µm OM4 laser-optimized multimode fiber.

Bandwidth: 4700 MHz·km at 850nm.

Transmission Distance:

40G/100G Ethernet: 150 meters

200G/400G (parallel fiber): 70-150 meters

4: How does OM4 differ from OM3 Pigtails?

5:How to choose OM4 Pigtails?

Connector: LC duplex (general use) or MTP-12/24 (high-density).

Jacket: LSZH for data centers, PVC for general environments.

Length: 1-5 meters to allow splicing flexibility.

6: What precautions are needed?

Bend Radius: ≥10x cable diameter (e.g., 30mm for 3mm cable).

Cleaning: Clean connectors with fiber-grade tools.

Splicing: Ensure splice loss ≤0.3dB (recommend Fujikura/Sumitomo splicers).

7: Is OM4 compatible with 400G networks?

Yes! With MTP-16/32 connectors and parallel fiber technology, OM4 supports 400G-SR8 up to 100 meters.
