ZORA OM3 Multimode Fiber Optic Pigtails

ZORA OM3 Multimode Fiber Optic Pigtails Description

    ZORA's factory-based assembly and mechanical connector polishing systems provide a wide range of fiber optic type connectors to ensure superior performance, interconnectivity and durability. All pigtails are 100% fully tested through standard test procedures.

    ZORA OM3 Multimode Fiber Optic Pigtails are fusion spliced or mechanically docked to fiber optic cables and are connected using a variety of connector types.

ZORA OM3 Multimode Fiber Optic Pigtails Features

• 100% end-face inspection and compliant with GR-326-CORE；

• High-quality, machine-polished connectors；

• have consistent low-loss performance；

• has an easily strippable fiber buffer；

• short buffered connector jacket for easy high-density fiber management applications；

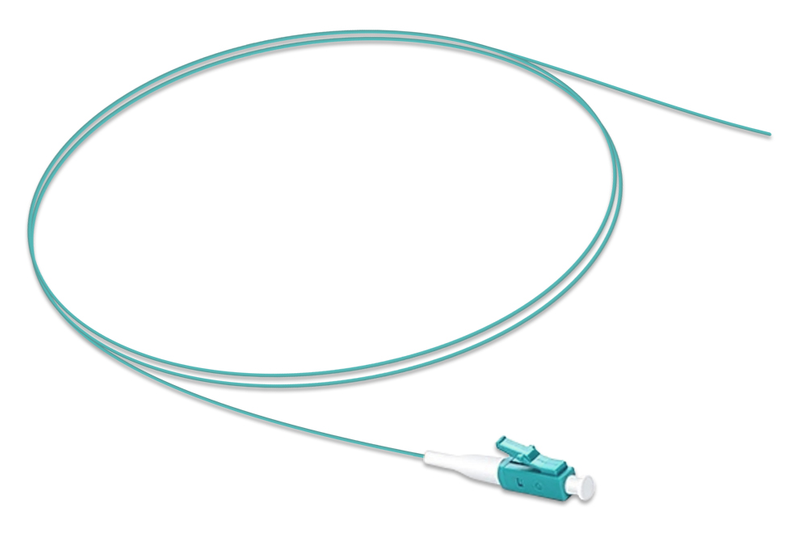

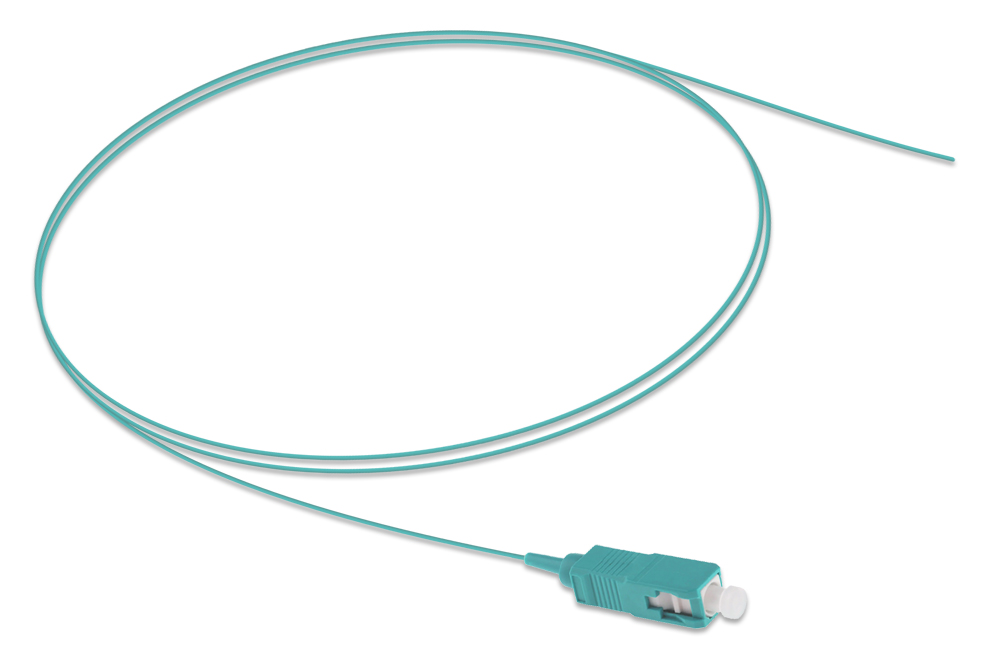

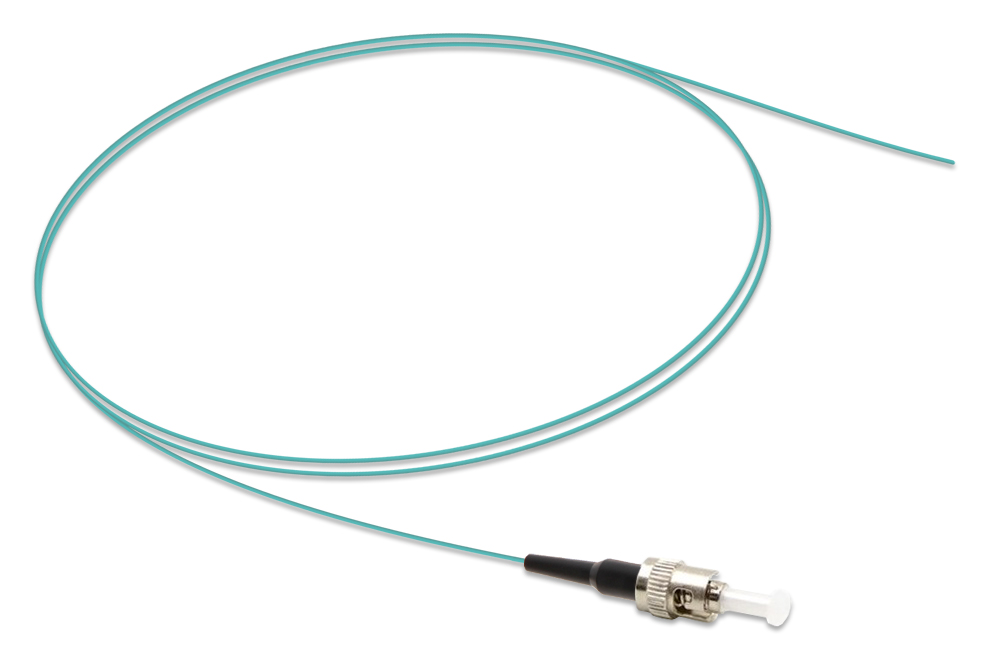

• Offers a wide range of connector types: FC, SC, ST, LC, MTRJ, MU and more.




Reference Standard

• ANSI/TIA 568 C.0

• ISO/IEC 11801




ZORA OM3 Multimode Fiber Optic Pigtails Applications

• Splicing of optical fibers by mechanical splice method ;

• Splicing of optical fibers by fusion splicing method;

• Temporary splicing of fiber optic cables.

1: What is an OM3 Multimode Fiber Optic Pigtail?

An OM3 multimode fiber optic pigtail is a component with one end terminated by a fiber connector (e.g., LC, SC, or MTP) and the other end as bare fiber (ready for fusion splicing or termination). It uses OM3-grade 50/125µm laser-optimized multimode fiber, designed for high-speed, short-distance data transmission in high-density networking environments.

2: What are the primary applications of OM3 Pigtails?

Data Centers: Connecting 40G/100G Ethernet equipment to fiber distribution panels (ODFs).

Enterprise Networks: Splicing core switches to optical transceivers.

Security Systems: Terminating high-definition cameras to fiber networks.

Storage Area Networks (SANs): Extending high-speed storage device connectivity.

3: What are the performance specifications of OM3 Pigtails?

Fiber Type: 50/125µm laser-optimized multimode fiber (OM3).

Bandwidth: 2000 MHz·km at 850nm wavelength.

Typical Transmission Distances:

10G Ethernet: Up to 300 meters

40G/100G Ethernet (with MTP connectors): Up to 100 meters

4: How does OM3 differ from OM2/OM4 Pigtails?

5: How to choose the right OM3 Pigtail?

Consider the following factors:

  1.Connector Type: LC, SC, or MTP/MPO (for high-density applications).

  2.Simplex/Duplex: Single-fiber (simplex) or dual-fiber (duplex) pigtails.

  3.Jacket Material: LSZH (Low Smoke Zero Halogen) for data centers, PVC for general use.

  4.Length: Typically 1-3 meters; allow sufficient length for splicing operations.

6: What precautions should be taken when using OM3 Pigtails?

Splicing Protection: Use heat-shrink sleeves to protect spliced bare fiber.

Bend Radius: Maintain a minimum bend radius of ≥10x cable diameter (e.g., 30mm for 3mm cable).

Connector Cleaning: Clean connector end faces regularly with professional tools.

Contamination Prevention: Cover bare fiber ends with protective caps when not in use.

7: Are OM3 Pigtails compatible with 40G/100G networks?

Yes, but ensure:

Use MTP/MPO multi-fiber connectors (e.g., MTP-12).

Transmission distances ≤100 meters for 40G/100G.

Pair with VCSEL-based SFP+/QSFP+ transceivers.
