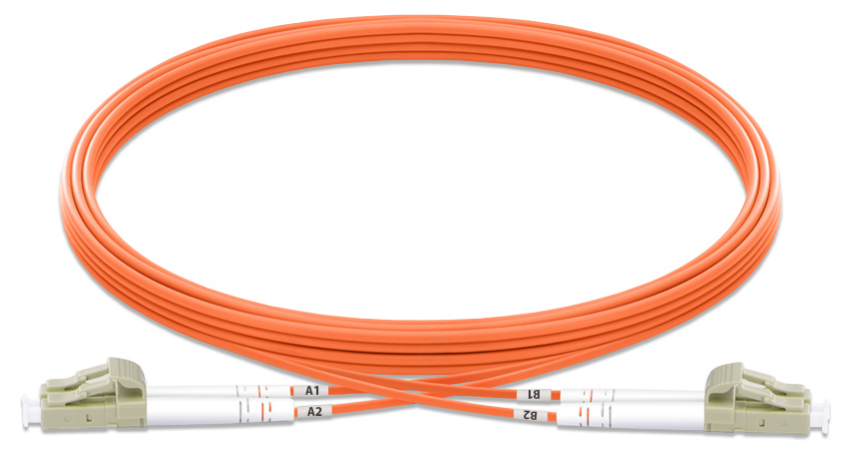

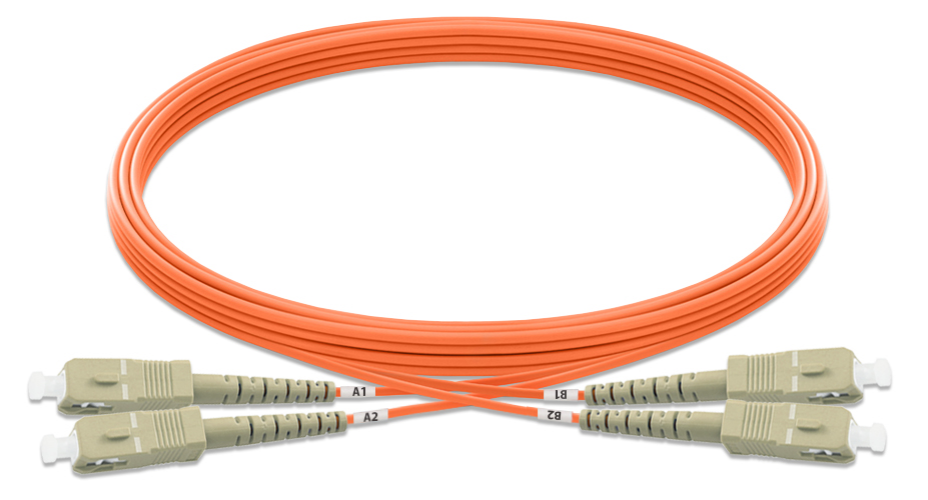

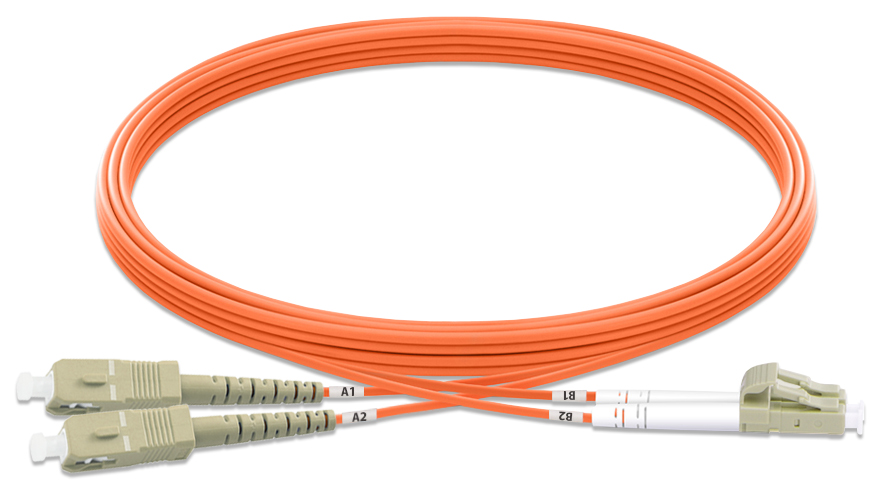

ZORA OM2 Multimode Duplex Patch Cords

ZORA's OM2 Multimode Duplex Patch Cords are high-performance, high-quality patch cords for use in area networks, data centers, telecom and FTTx networks, and wide area networks (WAN). The patch cords are manufactured with a low smoke and non-toxic (LSZH) jacket that complies with IEC and TIA standards. Patch cords are spliced with the highest quality connectors for optimal optical performance and reliable reusability.

Model:
ZRW5021
Brand:
ZORA

Availability:



Inquire

Product Description

ZORA OM2 Multimode Duplex Patch Cords Description

ZORA's factory-based assembly and mechanical connector polishing systems provide a wide range of fiber optic type connectors to ensure superior performance, interconnectivity and durability. All patch cords are 100% fully tested through standard test procedures.

ZORA Fiber Optic Patch Cords are high performance, high quality patch cords used in area networks, data centers, telecom and FTTx networks, and wide area networks (WAN). The patch cords are manufactured with a low smoke and non-toxic (LSZH) jacket that complies with IEC and TIA standards. Patch cords are spliced with the highest quality connectors for optimal optical performance and reliable reusability.

ZORA OM2 Multimode Duplex Patch Cords Features

The use of high-precision ceramic inserts has a strong resistance to the number of pull-outs;
High precision grinding and full inspection to ensure high return loss and low insertion loss；
Short buffered connector jacket for easy fiber management in high-density applications；
Link lengths of up to 300 meters and network speeds of up to 1 Gb/s are supported with 850nm sources；
Provide a variety of model classification: FC, SC, ST, LC, MTRJ, MU, etc；
Fiber optic patch cords can be customized in terms of number of cores and length。

Reference Standard

ANSI/TIA 568 C.0
ISO/IEC 11801
IEC 61034-2

Product Applications

Fiber optic communication ；
Regional, wide-area and global networks；
High electromagnetic interference (EMI / RFI) environments；

Technical Specifications
Mode type	OM2(62.5/125μm)
Connector Type	SC-ST，SC-LC，SC-SC，SC-FC，LC-LC，LC-ST，LC-FC，etc
Number of fibers	2 Core
Jacket Material	LSZH
insertion loss	≤0.25dB
return loss	≥ 35dB
operating temperature	-40°C ~ +85°C

Ordering Information
Product Model	Product Name	length	Jacket Color	Jacket Size	Jacket Type
ZRW5021-M1	OM2 Multimode Duplex Patch Cords SC-ST	1m	orange	2.0mm	LSZH
ZRW5021-M2	OM2 Multimode Duplex Patch Cords SC-ST	2m	orange	2.0mm	LSZH
ZRW5021-M3	OM2 Multimode Duplex Patch Cords SC-ST	3m	orange	2.0mm	LSZH

OM2 Multimode Duplex Patch Cords FAQ

1.What is OM2 multimode Duplex fiber optic patch cable?

OM2 multimode dual-core fiber optic patch cable is a kind of fiber optic patch cable for short distance optical signal transmission, which adopts OM2 multimode fiber (62.5/125μm) and dual-core structure, and is usually equipped with fiber optic connectors such as LC, SC, ST, etc. at both ends.

2.What are the main application scenarios of OM2 multimode Duplex fiber optic patch cord?

It is suitable for short distance data transmission, such as local area network (LAN), data center, security monitoring, fiber to the desktop (FTTD) and other scenarios.

3.What is the difference between OM2 multimode Duplex fiber patch cable and OM3/OM4 patch cable?

The main difference is the fiber type and transmission performance:

Fiber type: 62.5/125μm for OM2, 50/125μm for OM3/OM4.

Transmission performance: OM3/OM4 has better bandwidth and transmission distance than OM2, which is suitable for higher speed and longer distance transmission.

4.How to choose the right OM2 Multimode Duplex Fiber Optic Patch Cord?

You need to consider the following factors when choosing:

Connector type: Select LC, SC, ST, etc. according to equipment interface.

Patch cord length: Select the appropriate length according to the actual demand.

Sheath material: Choose PVC, LSZH, etc. according to the environment.

Brand and quality: Choose famous brand to ensure reliable quality.

5.What do I need to pay attention to when using OM2 multimode Duplex fiber optic patch cords?

Attention is needed when using:

Bending radius: Avoid excessive bending to prevent fiber damage.

Clean end face: Keep the connector end face clean to avoid signal attenuation.

Avoid pulling: Avoid excessive pulling to prevent fiber breakage.

6.What is the price of OM2 Multimode Duplex Fiber Optic Patch Cord?

The price is affected by brand, length, connector type, etc. It is usually cheaper than OM3/OM4 patch cords, suitable for projects with limited budget.
