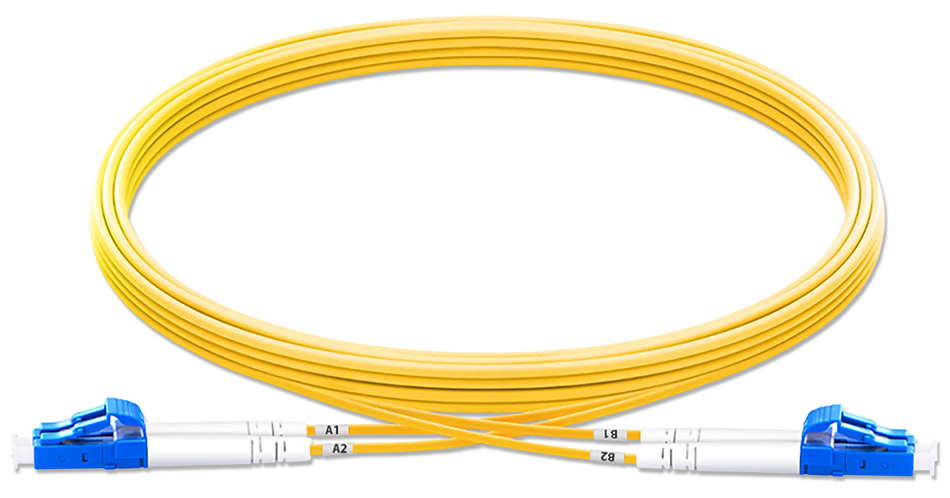

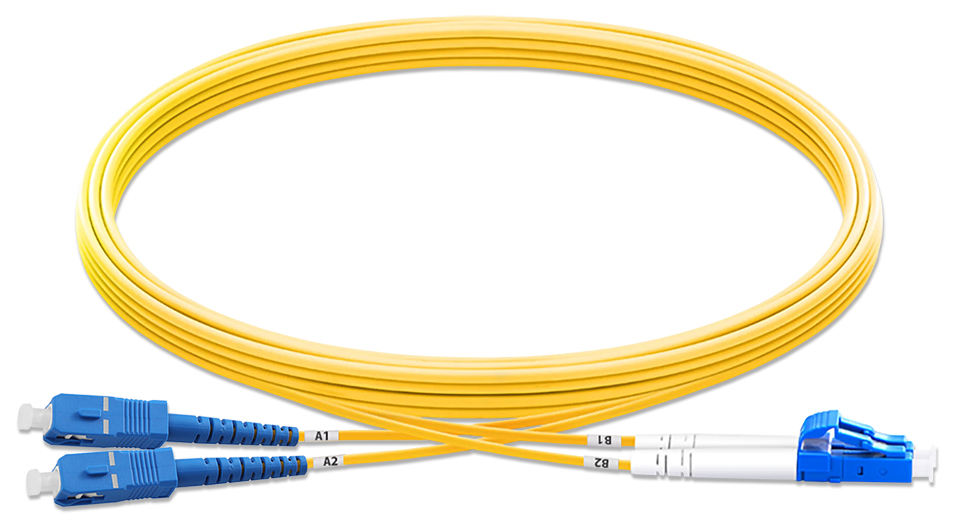

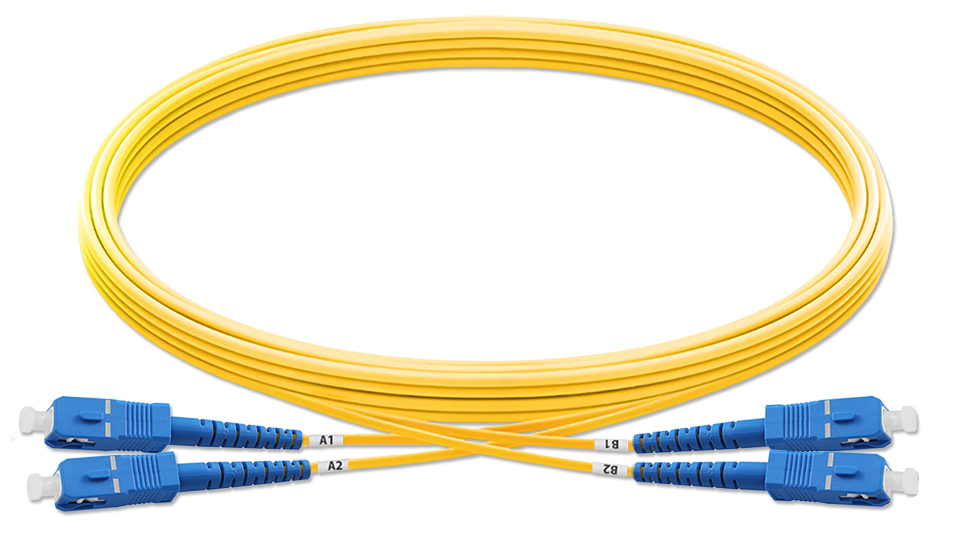

ZORA OS2 Singlemode Patch Cords

ZORA OS2 Singlemode Patch Cords Description

     ZORA's factory-based assembly and mechanical connector polishing systems provide a wide range of fiber optic type connectors to ensure superior performance, interconnectivity and durability. All patch cords are 100% fully tested through standard test procedures.

     ZORA Singlemode Patch Cords are high performance, high quality patchcords used

in LANs, data centers, telecom and FTTx networks,

 and wide area networks (WANs).  The patch cords

are manufactured with a low smoke and non-toxic

 (LSZH) jacket that complies with IEC and TIA standards.

Patch cords are spliced with the highest quality connectors

 for optimal optical performance and reliable reusability.

ZORA OS2 Singlemode Patch Cords Features

• The use of high-precision ceramic inserts has a strong resistance to the number of pull-outs;

• High precision grinding and full inspection to ensure high return loss and low insertion loss；

• Short buffered connector jacket for easy fiber management in high-density applications；

• Provide a variety of model classification: FC, SC, ST, LC, MTRJ, MU, etc；

• Fiber optic patch cords can be customized in terms of number of cores and length。

Reference Standard

• ANSI/TIA 568 C.0

• ISO/IEC 11801

• IEC 61034-2

Product Applications

• Fiber optic communication ；

• Regional, wide-area and global networks；

• High electromagnetic interference (EMI / RFI) environments；

Technical Specification

1: What is OS2 single mode fiber?

OS2 single-mode fiber is a single-mode fiber that complies with ITU-T G.652C/D and G.657A1 standards, and is also known as “low-water-peak fiber” or “zero-water-peak fiber”. With a core diameter of 8.6-9 μm and a loose tube design, it supports long-haul, high-rate data transmission and is bend-resistant, making it suitable for deployment in complex environments.

2: What are the main features of OS2 single-mode fiber?

Low attenuation value: Maximum attenuation value is 0.4dB/km (1310nm and 1550nm bands), which is much lower than OS1's 1.0dB/km.

Long Transmission Distance: Supports transmission up to 200km (theoretical value), and is often used in practical applications for 150m transmission of 40G/100G Ethernet.

Wide Band Support: Eliminates the effect of 1383nm water peaks, extends the available bands to O, E, S, and C bands (1325-1560nm), and supports wavelength division multiplexing (CWDM).

Bend-resistant design: G.657A1 compliant, suitable for high-density cabling and complex environments.

3: What scenarios is OS2 single mode fiber suitable for?

Long distance communication: Wide Area Network (WAN), Metropolitan Area Network (MAN), Long distance backhaul network.

High-speed networks: Support 40G/100G/400G Ethernet transmission, especially for data center core layer and high-performance computing (HPC).

Complex environment: outdoor deployment, factory wiring and other scenarios that require tensile and flexural resistance.

4:What is the difference between OS2 and OS1 single mode fiber?

5: How to choose OS2 single mode fiber?

The following factors need to be considered comprehensively:

Connector type: choose LC, SC or MTP/MPO (high density scenario) according to the device interface.

Transmission rate: Support 40G/100G with multi-core patch cords (e.g. MTP-12 core).

Environmental requirements: outdoor deployment of loose tube structure, data centers can choose low-smoke non-halogen (LSZH) jacket.

6: What do I need to pay attention to when using OS2 fiber?

Bending radius: Minimum bending radius ≥ 10 times the cable diameter (e.g. 3mm cable needs to be ≥ 30mm).

Endface Cleaning: Clean the connector endface regularly to avoid signal loss due to dust.

Compatibility: When mixing with OS1 devices, the performance is based on OS1.

7: What is the price of OS2 fiber?

OS2 price is higher than OS1 (about 20-40% higher), but lower than OM4 multimode fiber.

8: Will OS2 fiber be obsolete in the future?

Not in the short term, OS2 supports 400G/800G Ethernet (via parallel fiber technology) and is still the main choice for long-haul, high-speed transmission at a lower cost than OM5 fiber. However, for ultra-long haul (e.g. 1000G+) or wider wavelength multiplexing (SWDM), OM5 can be considered.
