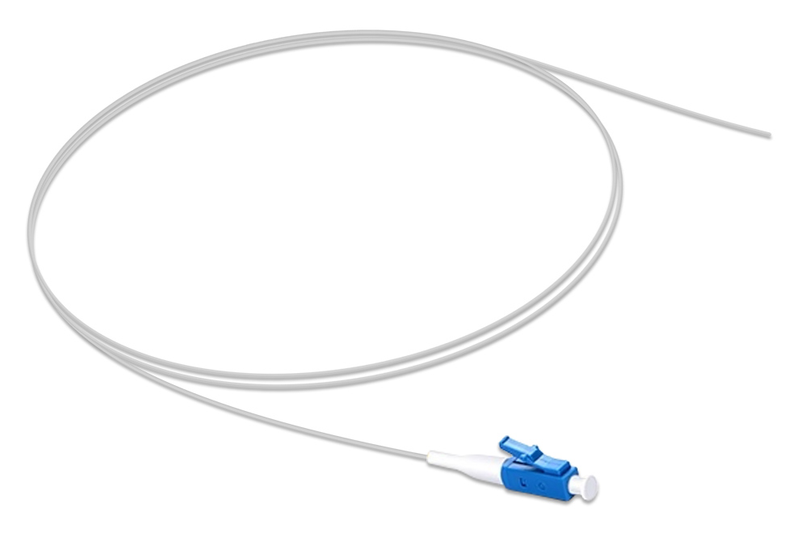

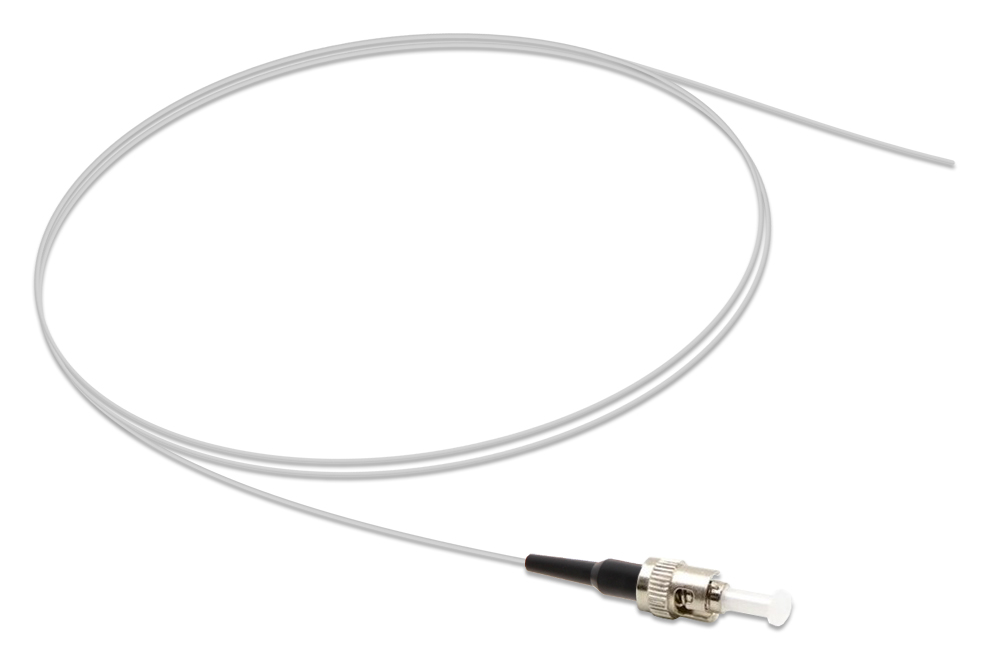

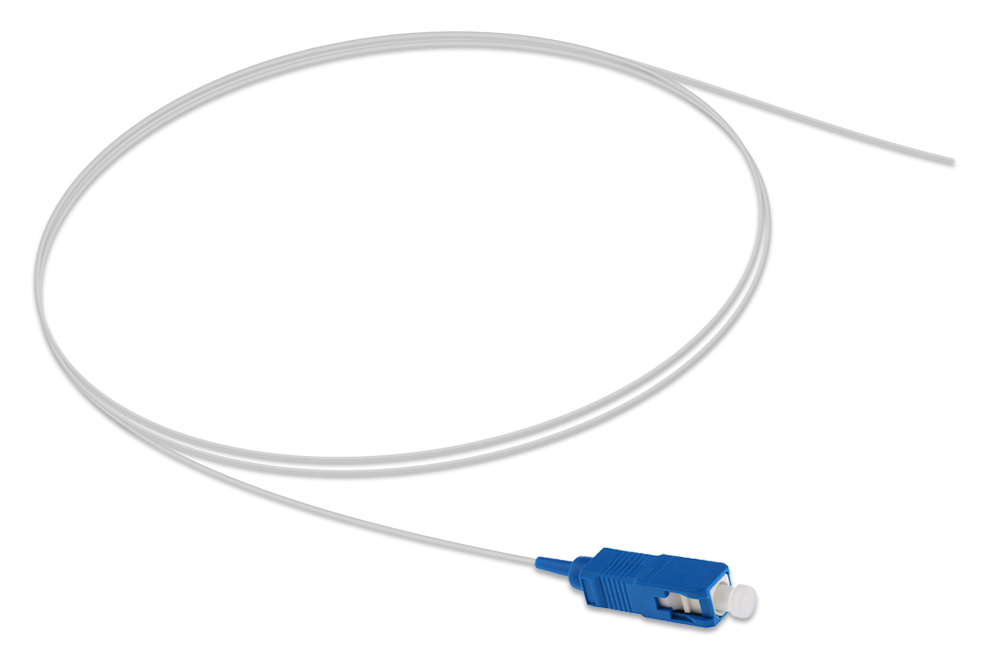

ZORA OS2 Singlemode Fiber Optic Pigtails

ZORA OS2 Singlemode Fiber Optic Pigtails Description

ZORA's factory-based assembly and mechanical connector polishing systems provide a wide range of fiber optic type connectors to ensure superior performance, interconnectivity and durability. All pigtails are 100% fully tested through standard test procedures.

ZORA Singlemode Fiber Optic Pigtails are fusion spliced or mechanically docked to fiber optic cables and are connected using a variety of connector types.

ZORA OS2 Singlemode Fiber Optic Pigtails Features

• 100% end-face inspection and compliant with GR-326-CORE；

• High-quality, machine-polished connectors；

• have consistent low-loss performance；

• has an easily strippable fiber buffer；

• short buffered connector jacket for easy high-density fiber management applications；

• Offers a wide range of connector types: FC, SC, ST, LC, MTRJ, MU and more.

Reference Standard

• ANSI/TIA 568 C.0

• ISO/IEC 11801

OS2 Singlemode Fiber Optic Pigtails Applications

• Splicing of optical fibers by mechanical splice method ;

• Splicing of optical fibers by fusion splicing method;

• Temporary splicing of fiber optic cables.

Fiber jumper interfaces and lengths can be customized according to customer requirements

1: What is OS2 single mode fiber?

OS2 single-mode fiber is a single-mode fiber that complies with ITU-T G.652C/D and G.657A1 standards, and is also known as “low-water-peak fiber” or “zero-water-peak fiber”. With a core diameter of 8.6-9 μm and a loose tube design, it supports long-haul, high-rate data transmission and is bend-resistant, making it suitable for deployment in complex environments.

2: What are the main features of OS2 single-mode fiber?

Low attenuation value: Maximum attenuation value is 0.4dB/km (1310nm and 1550nm bands), which is much lower than OS1's 1.0dB/km.

Long Transmission Distance: Supports transmission up to 200km (theoretical value), and is often used in practical applications for 150m transmission of 40G/100G Ethernet.

Wide Band Support: Eliminates the effect of 1383nm water peaks, extends the available bands to O, E, S, and C bands (1325-1560nm), and supports wavelength division multiplexing (CWDM).

Bend-resistant design: G.657A1 compliant, suitable for high-density cabling and complex environments.

3: What scenarios is OS2 single mode fiber suitable for?

Long distance communication: Wide Area Network (WAN), Metropolitan Area Network (MAN), Long distance backhaul network.

High-speed networks: Support 40G/100G/400G Ethernet transmission, especially for data center core layer and high-performance computing (HPC).

Complex environment: outdoor deployment, factory wiring and other scenarios that require tensile and flexural resistance.

4:What is the difference between OS2 and OS1 single mode fiber?

5: How to choose OS2 single mode fiber?

The following factors need to be considered comprehensively:

Connector type: choose LC, SC or MTP/MPO (high density scenario) according to the device interface.

Transmission rate: Support 40G/100G with multi-core patch cords (e.g. MTP-12 core).

Environmental requirements: outdoor deployment of loose tube structure, data centers can choose low-smoke non-halogen (LSZH) jacket.

6: What do I need to pay attention to when using OS2 fiber?

Bending radius: Minimum bending radius ≥ 10 times the cable diameter (e.g. 3mm cable needs to be ≥ 30mm).

Endface Cleaning: Clean the connector endface regularly to avoid signal loss due to dust.

Compatibility: When mixing with OS1 devices, the performance is based on OS1.

7: What is the price of OS2 fiber?

OS2 price is higher than OS1 (about 20-40% higher), but lower than OM4 multimode fiber.

8: Will OS2 fiber be obsolete in the future?

Not in the short term, OS2 supports 400G/800G Ethernet (via parallel fiber technology) and is still the main choice for long-haul, high-speed transmission at a lower cost than OM5 fiber. However, for ultra-long haul (e.g. 1000G+) or wider wavelength multiplexing (SWDM), OM5 can be considered.
