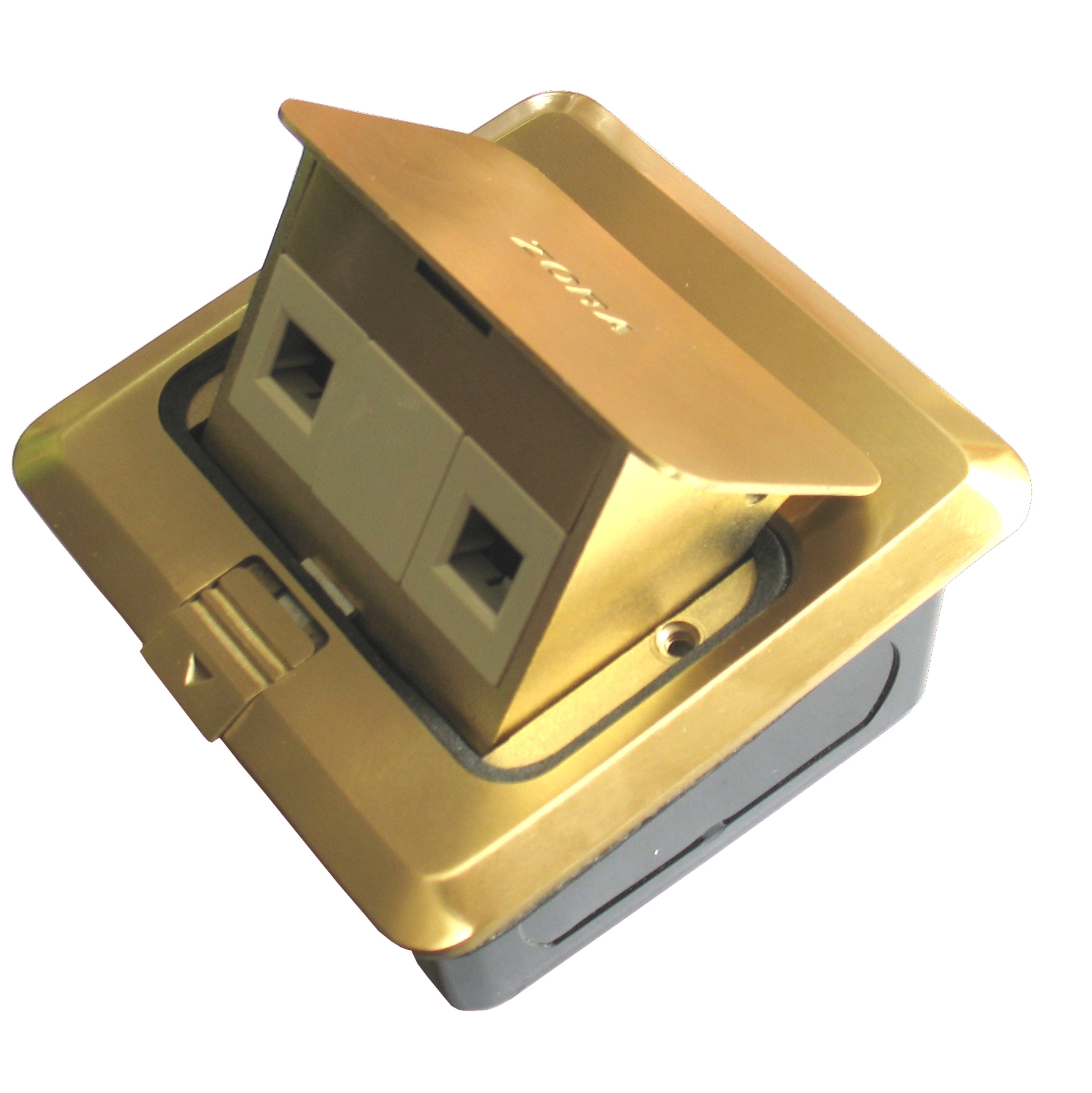

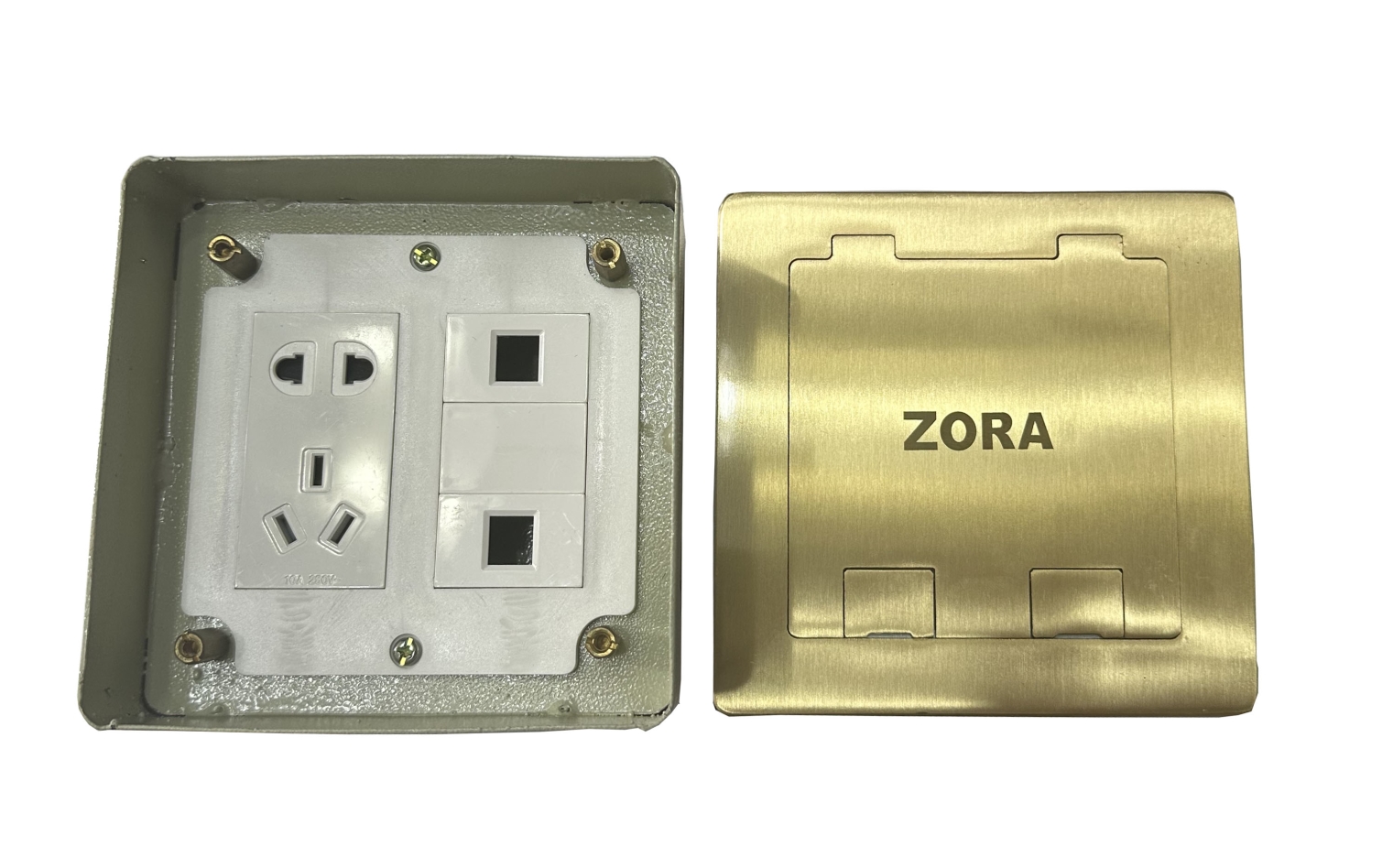

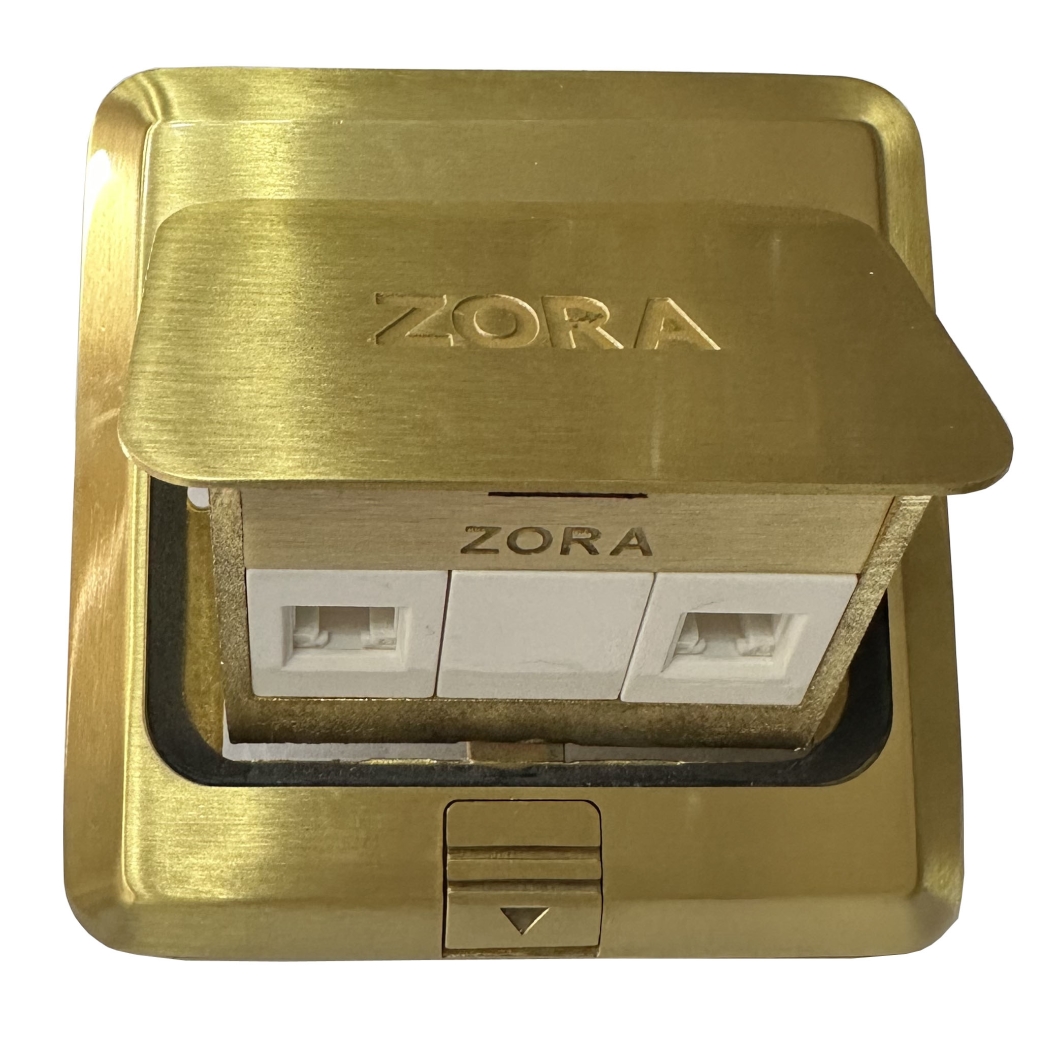

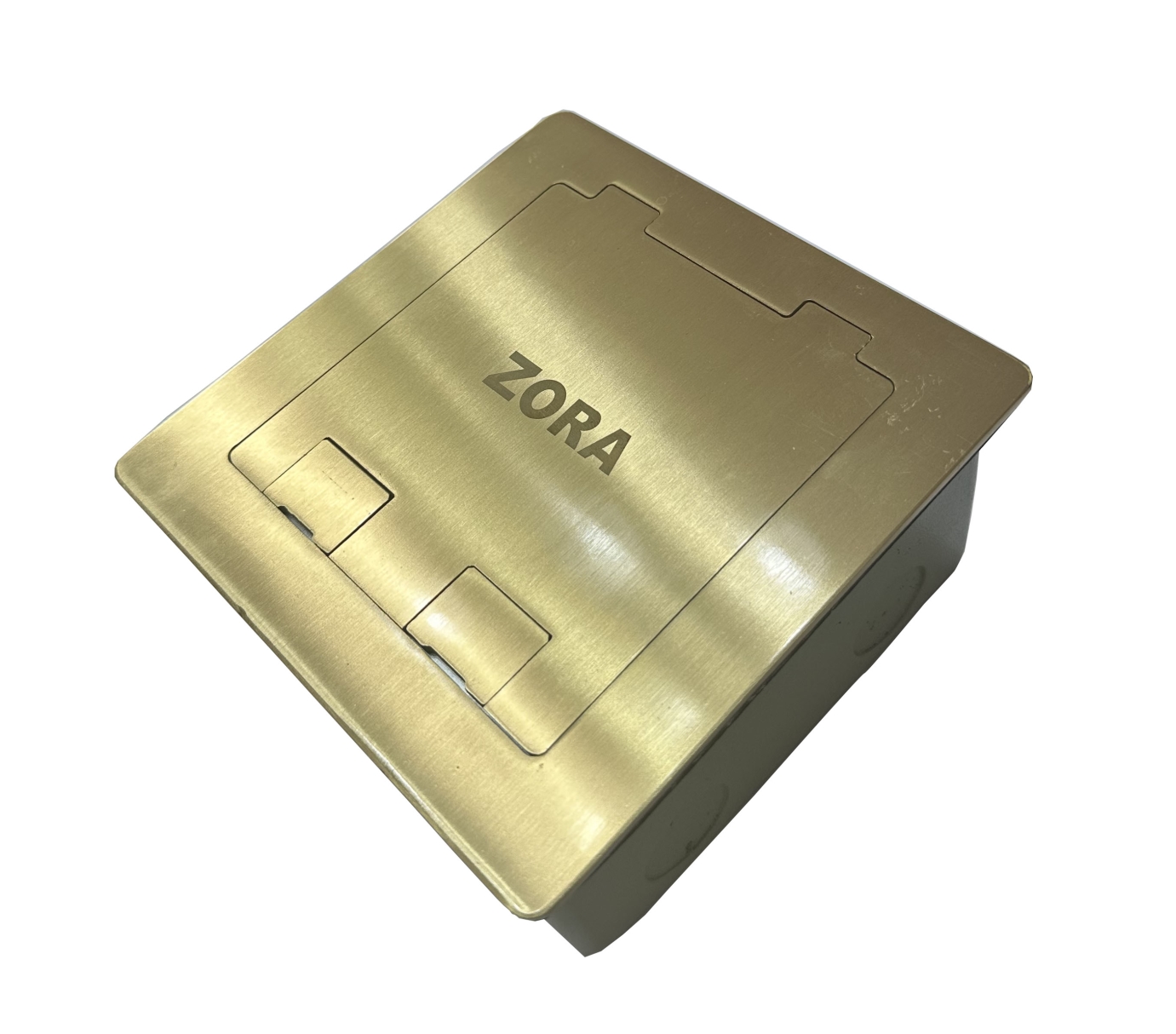

ZORA Floor Information Sockets Description

ZORA floor information sockets are used in work areas , mainly for open office areas, such as hotel lobbies, conference rooms, etc. They can also be used in computer rooms with antistatic floors and other occasions.

ZORA Floor Information Sockets Features

1The face cover is made of copper alloy precision casting, the surface of the special polishing technology processing, high strength;

2Functional parts for quick replacement, terminals are easy to remove, convenient for strong and weak wiring, buckle position design, matching with the terminals, convenient and quick;

3Unique screw hole design, installation screws can choose countersunk head, round head and any other screws, great versatility;

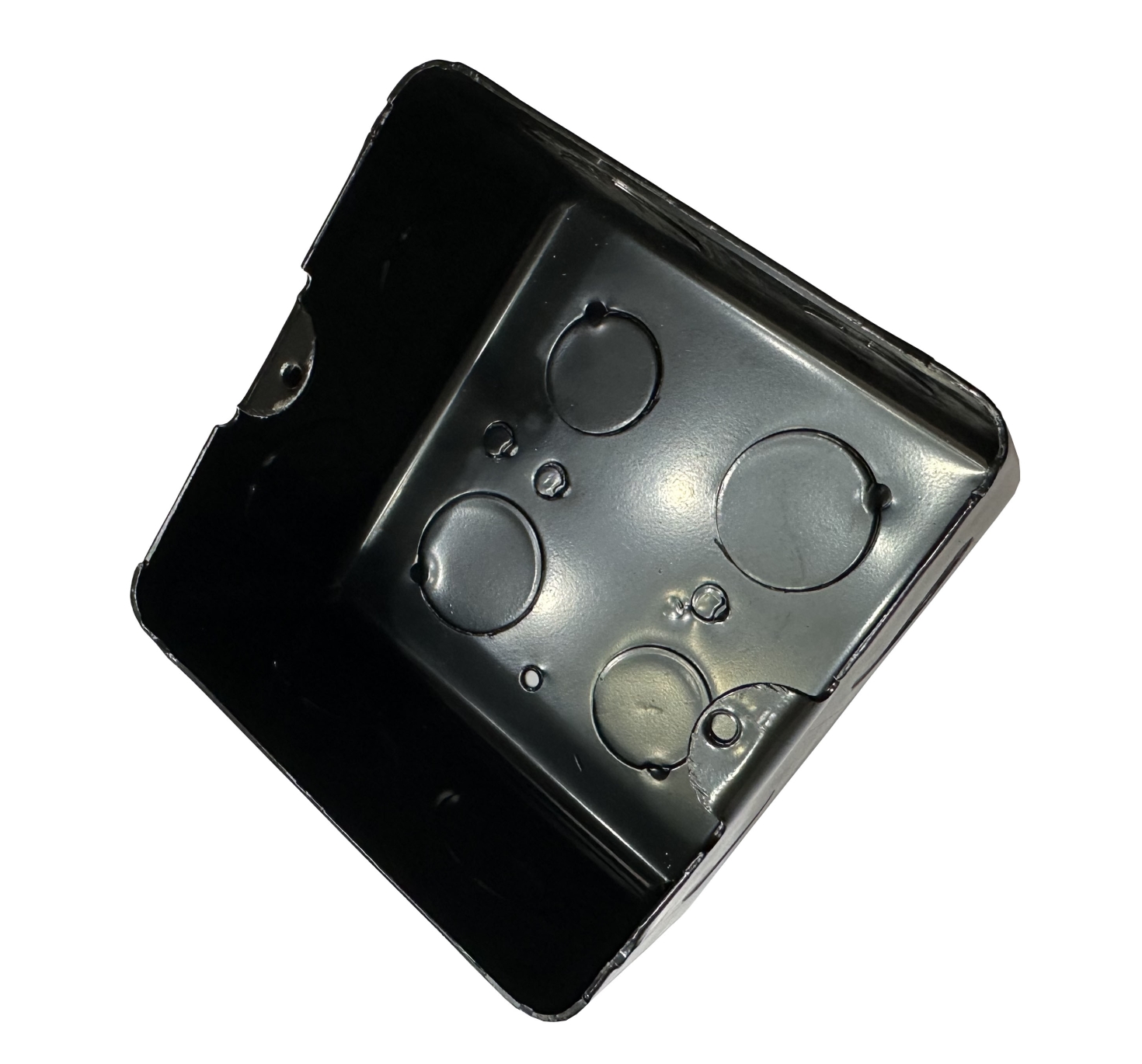

4The inner space of the bottom box is increased and deepened, and the inner and outer walls are all galvanized to prevent rusting;

5All adopt high-quality materials, waterproof, anti-treading pressure function is extremely strong.

6Storage temperature: -40℃～80℃;

7Operating temperature: -30℃～70℃;

8Operating humidity: <95% relative humidity.

1.What is a ZORA Floor Information Sockets?

ZORA Floor Information Sockets is a recessed wiring device installed on the floor. It pops up via a push-button mechanism to provide network (RJ45), power outlets, or fiber ports. Its square design suits modern interiors and is ideal for offices, hotels, and exhibition halls.

2.What are the key applications?

Open Offices: Hide cables while providing power and network access.

Conference Rooms: Quick connectivity for projectors and laptops.

Hotel Lobbies: Guest charging and internet access.

Smart Homes: Powering floor-based smart devices.

3.What are the core features?

Pop-up Mechanism: Auto-elevates with silent closure.

Multi-port Options: RJ45, USB-C, HDMI, power outlets (local/international standards).

Waterproof: IP67 rating (when closed) for damp environments.

Safety: Rounded edges and optional child locks.

4.What are the installation requirements and steps?

• Requirements:

      Floor thickness ≥80mm (concrete or raised floors).

      Compatible junction box (standard size: 120x120mm).

• Steps:

      Cut floor opening and fix the junction box.

      Connect cables to outlet modules.

      Install pop-up mechanism and test operation.

      Seal edges (waterproof adhesive or epoxy).

5.How to maintain and clean?

Cleaning: Wipe surface with a dry cloth; avoid liquid ingress.

Maintenance: Lubricate pop-up mechanism with silicone grease biannually.

Waterproofing: Check edge seals periodically to prevent aging.
