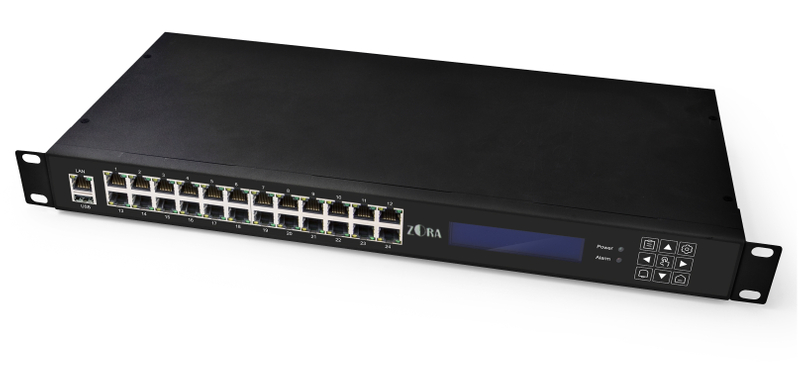

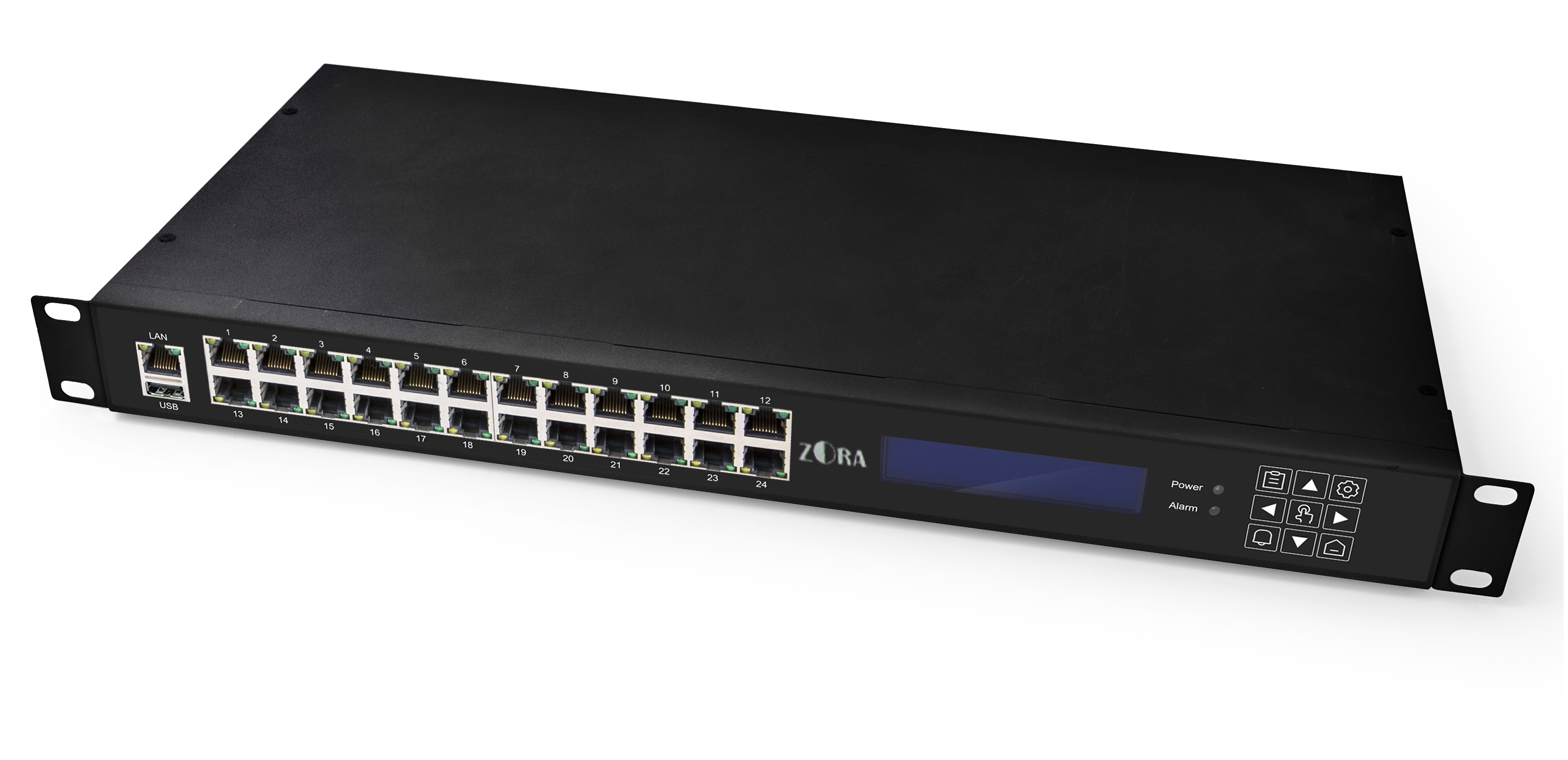

ZORA Intelligent Distribution Frame Manager

ZORA Intelligent Distribution Frame Manager is a device used to manage and monitor the distribution frames in the cabling system, which realizes real-time monitoring and management of the cabling system through computer technology and electronic devices. Intelligent Distribution Frame Manager usually includes both hardware and software parts, through the graphical interface to display the physical layer connection architecture, real-time monitoring of end-to-end network connectivity, and in the event of a failure prompted by the scope of the failure point, to help administrators quickly locate and solve the problem!

Model:
ZRDK2124
Brand:
ZORA

Availability:



Inquire

Product Description

ZORA Intelligent Distribution Frame Manager Description

ZORA Intelligent Distribution Frame Manager is a device used to manage and monitor the distribution frames in the cabling system, which realizes real-time monitoring and management of the cabling system through computer technology and electronic devices. Intelligent Distribution Frame Manager usually includes both hardware and software parts, through the graphical interface to display the physical layer connection architecture, real-time monitoring of end-to-end network connectivity, and in the event of a failure prompted by the scope of the failure point, to help administrators quickly locate and solve the problem!

Standards Compliance

ANSI/TIA 568.2-D
ISO/IEC 11801

ZORA Intelligent Distribution Frame Manager Features

1、Supports 24 intelligent distribution frames;

2、Installation: Standard 19" cabinet installation; Height: 1U;

3、Lightning protection: Increase lightning protection circuitry in the power port, with lightning protection up to 6KV/3KA;

4、Main Functions:

Transmit the commands sent by the administrator through the network to the ports of the managed distribution frames.
When monitoring the status, it regularly sends detection signals to the monitored ports, and if it is found to be inconsistent with the information stored in the memory, it immediately alarms through the port indicator and notifies the server-side management software to do the corresponding processing.

Ordering Information
Product Model	Product Name	Qty / Box	Qty / CTN
ZRDK2124	Intelligent Distribution Frame Manager	1	8

Technical Specifications

Structure
Main part
Body Material	Adoption of high-quality SPCC cold-rolled steel plate
Body Surface	The surface has been sprayed with special treatment, which is strong, beautiful and not easy to be scratched.
Leading end
Front	LED indicators and dust caps for each port
Back end
Rear Part	Full steel plate distribution frame structure, to ensure higher mechanical properties of the product

Physical property
Working environment temperature	-40℃～+70℃
Specification	Standard 19-inch rack mount, height：1U
Power supply	AC220V，50Hz
Rated power	24-way 48W
Rated current	24-way 2A

ZORA Intelligent Distribution Frame Manager FAQ

1: What is the core function of the Intelligent Distribution Frame Manager?

Automation: Monitors port status (connectivity, link quality) and generates digital cabling logs.
Remote Control: Enable/disable ports via web/API, with alerts (email/SMS).
Analytics: Tracks port utilization and faults for resource optimization.
