ZRDB1224
ZORA
Product Description
ANSI/TIA 568.2-D
ISO/IEC 11801
1The back of the SPCC metal cable management tray, for bundling, cable management, to avoid cable and module termination force caused by loose connections;
2Bracket with grounding terminals for shielding good grounding, ground resistance is less than 1Ω;
3Front intuitive grouping labeling area, for writing labels to provide easy management;
4Directly used in 19-inch standard cabinets, racks, wall cabinets and so on;
5The use of high-quality cold-rolled steel plate, the surface of the plastic spraying special treatment, strong, beautiful, not easy to scratch.
6Operating temperature: -10℃～60℃.
| Ordering Information | |||
|---|---|---|---|
Product Number | Product Name | Qty / Box | Qty / CTN |
ZRDB1224 | 24-port Cat 5e shielded modular patch panel | 1 | 8 |
Construction | |
Body | |
Body Material | Adoption of high-quality SPCC cold-rolled steel plate |
Body Surface | The surface has undergone special spray coating treatment, which is sturdy, beautiful, and not easily scratched |
Front | |
Front Label | Positive and intuitive grouped labeling area provides easy management of written labels |
Rear | |
Rear Tray | Straight cable management bracket on the back for bundling and cable management, effectively reducing cable tension |
Physical Ranges | |
Operating Temperature | -20℃～+70℃ to meet the requirements of 48 hours of salt spray test |
Norm | Standard 19” rack mount, height: 1U |
| Mounting | Modular design for quick installation of ZORA modules |
Earth Resistance | Bracket with ground terminal, good grounding for shielding, ground resistance less than 1Ω |

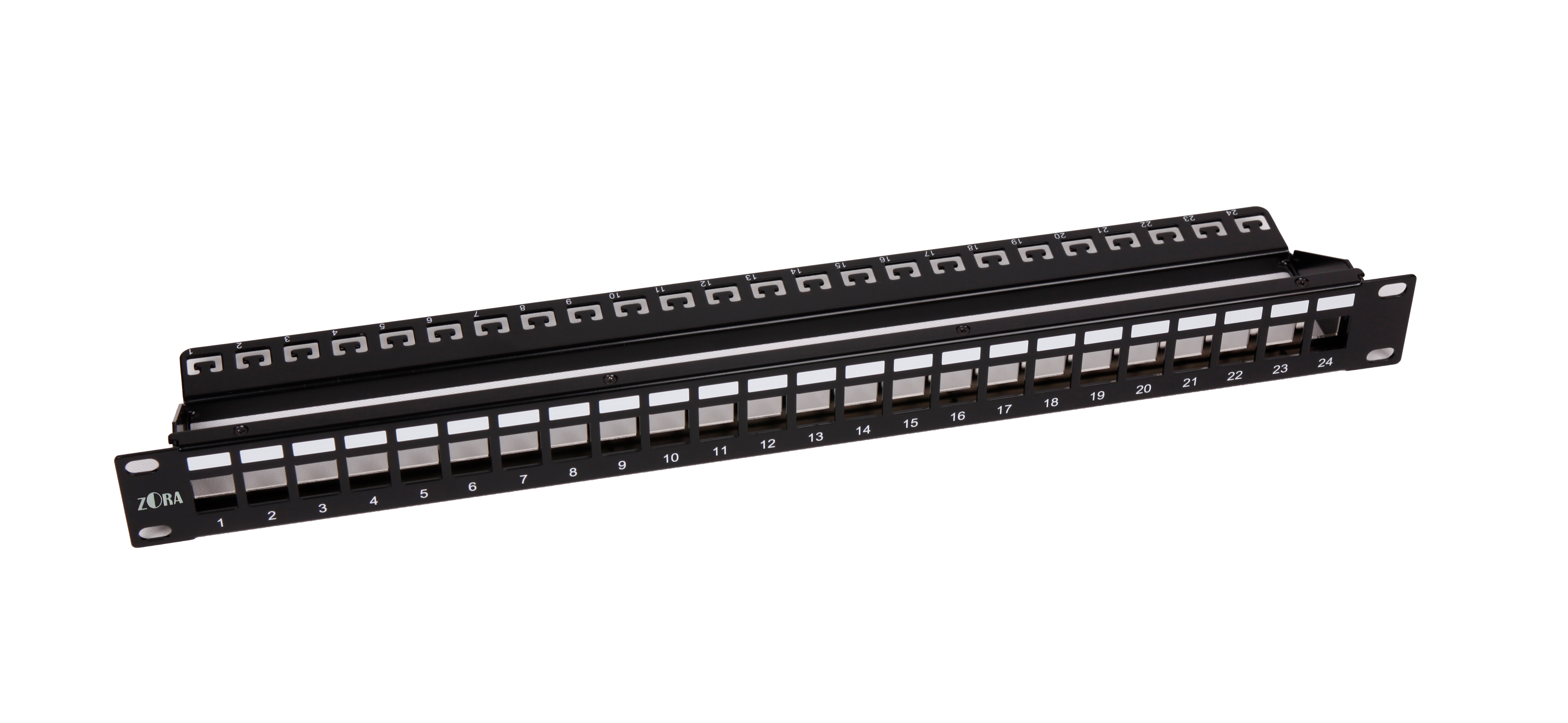

ZORA 24-port Cat 5e Shielded Modular Patch Panel
The ZORA Cat 5e Shielded Modular Patch Panel supports 1 Gbps data rates and 100 MHz frequency bandwidth, suitable for Gigabit Ethernet (1000BASE-T) and low-interference environments.
The aluminum foil shielding (F/UTP) and metal housing grounding technologies effectively isolate external electromagnetic interference (EMI) and crosstalk, ensuring signal integrity, especially in industrial and medical environments with high interference.
Rack Mounting：Secure the patch panel to a 19-inch standard rack using the provided screws.
Stripping & Ordering：Use a specialized tool to remove ~2.5 cm of cable jacket, preserving the shield. Arrange wire pairs according to T568A or T568B standards, keeping twists intact.
Grounding：Connect the shield to the patch panel’s metal housing and secure with a grounding screw.
Termination：Use 110 or KRONE punch-down tools to press wires into IDC terminals for a solid connection.
It supports 22-26 AWG shielded twisted pair (STP/S-FTP) cables. For optimal performance, use Cat 5e or Cat 6 shielded cables.
Use a Fluke network tester to check wire order, impedance, attenuation, and crosstalk, ensuring compliance with Cat 5e standards.
Yes, it may reduce EMI resistance, causing signal attenuation or packet loss. Ensure both ends of the shield are properly grounded.
