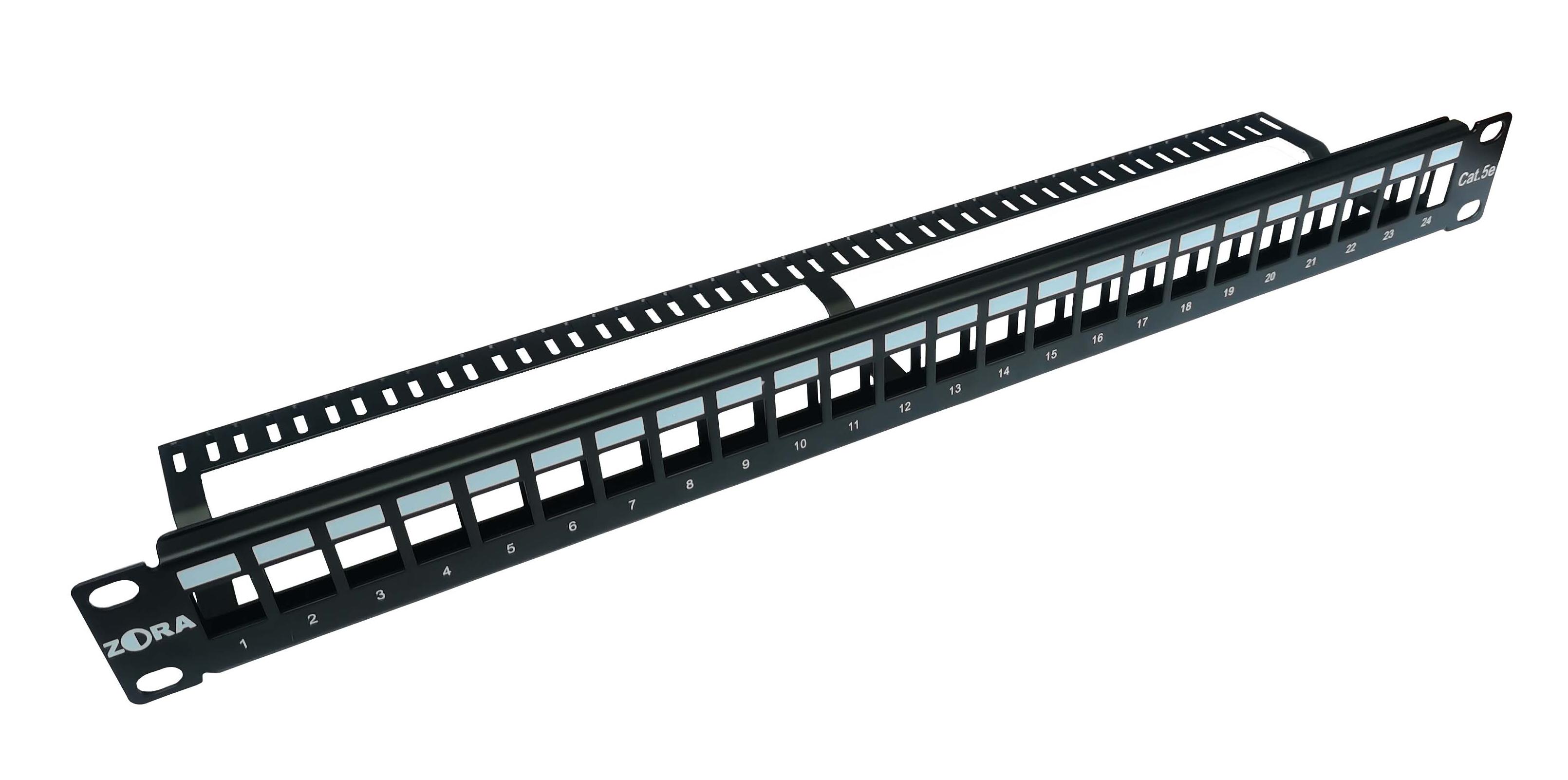

ZORA 24-port Cat 5e Unshielded Modular Patch Panel

ZORA 24-port Cat 5e unshielded modular patch panels are used for data network communications, patch cord-connected wiring devices, main wiring closets and distribution closets.

Model:
ZRD1124
Brand:
ZORA

Availability:



Inquire

Product Description

ZORA 24-port Cat 5e Unshielded Modular Patch Panel Description

ZORA 24-port Cat 5e unshielded modular patch panels are used for data network communications, patch cord-connected wiring devices, main wiring closets and distribution closets.

Standards Compliance

ANSI/TIA 568.2-D
ISO/IEC 11801

ZORA 24-port Cat 5e Unshielded Modular Patch Panel Features

1Made of cold rolled steel plate, with plastic spraying surface treatment, beautiful and generous;

2Modularized design, suitable for quick installation of modules;

3Piano key type cable management bracket, for bundling cable management, effectively reduce cable tension;

4Front intuitive grouping labeling, to the network management, maintenance provides convenience;

5It can be directly installed in 19″ standard cabinet, wall-mounted cabinet, etc..

Ordering Information
Product Number	Product Name	Color	Ports	Qty / Box	Qty / CTN
ZRD1224	Cat 5e unshielded modular patch panel	Black	24	1	12

Technical Specifications

Construction
Body
Body Material	Adoption of high-quality SPCC cold-rolled steel plate
Body Surface	The surface has undergone special spray coating treatment, which is sturdy, beautiful, and not easily scratched
Front
Front Label	Positive and intuitive grouped labeling area provides easy management of written labels
Rear
Rear Tray	Straight cable management bracket on the back for bundling and cable management, effectively reducing cable tension

Physical Ranges
Operating Temperature	-20℃～+70℃ to meet the requirements of 48 hours of salt spray test
Norm	Standard 19” rack mount, height: 1U
Mounting	Modular design for quick installation of ZORA modules

ZORA 24-port Cat 5e Unshielded Modular Patch Panel FAQ

1.What is the ZORA 24-Port Cat5e Unshielded Modular Patch Panel?

The ZORA 24-Port Cat5e Unshielded Modular Patch Panel is a rack-mounted cabling device with 24 RJ45 ports, compatible with Cat5e unshielded twisted-pair (UTP) cables. Its modular design enables flexible configuration and maintenance, ideal for centralized cabling in SMEs, schools, and home networks.

2.What are the key applications?

Office Networks: Centralized connectivity for workstations and switches.

Campus Networks: Linking classroom devices to server room switches.

Smart Homes: Managing smart devices (e.g., NAS, IP cameras).

Surveillance Systems: Standardized terminations for NVRs and cameras.

3.What are the technical specifications?

Standards: TIA/EIA-568-B.2, ISO/IEC 11801.

Bandwidth: 100MHz (supports 1Gbps up to 100 meters).

Ports: RJ45 (compatible with Cat5e/Cat6 modules).

Mounting: 19-inch rack (1U height).

Cable Management: Built-in cable guides and label strips.

4. How does it differ from Cat6 patch panels?

Parameter	ZORA Cat5e UTP	Cat6 Panel
Bandwidth	100MHz	250MHz
1Gbps Support	Yes (≤100m)	Yes (≤100m)
Cost	Moderate	High
Future Proofing	Suitable for legacy networks	Supports short-range 10Gbps
