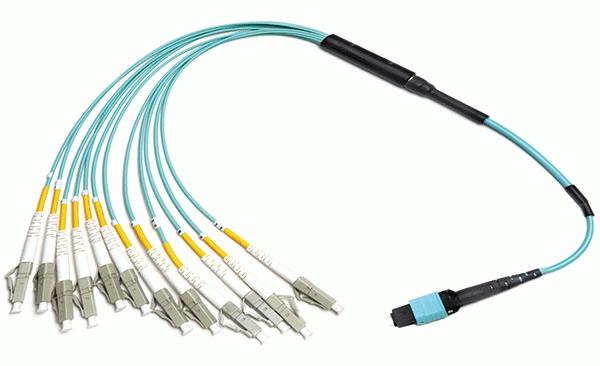

ZORA MPO Pre-terminated Patch Cord

ZORA MPO pre-terminated patch cords provide an ideal route for information pathways within a data center's Major Distribution Area (MDA) and specific distribution areas.
With high performance and simplicity, our ZORA low-loss MPO pre-terminated patch cords are the foundation to support simpler, faster and better pre-termination solutions in the data center.

Model:
ZRYD
Brand:
ZORA

Availability:



Inquire

Product Description

ZORA MPO Pre-terminated Patch Cord Description

ZORA MPO pre-terminated patch cords provide an ideal route for information pathways within a data center's Major Distribution Area (MDA) and specific distribution areas.

Wth high performance and simplicity, our ZORA low-loss MPO pre-terminated patch cords are the foundation to support simpler, faster and better pre-termination solutions in the data center.

Standards Compliance

ANSI/TIA 568 C.0
ISO/IEC 11801
IEC 61034-2
EN 50173-5 ISO/IEC 24764 TIA-942

ZORA MPO Pre-terminated Patch Cord Features

1Can be spliced with male or female MPO connectors;

2Splices 12 pole fiber optic MPO connectors to LC or SC;

3Pre-terminated and certified in the factory to provide optimal optical performance;

4Each cable is tested for 100% low insertion loss and back reflection;

5Supports OM3, OM4, OS2 in LSZH jacket;

6Lengths can be customized.

Ordering Information
Product Number	Product Name	Length	Mode type	Cores
ZRYD-OS212	MPO pre-terminated patch cord	3M	OS2	12
ZRYD-OS224	MPO pre-terminated patch cord	5M	OS2	24
ZRYD-OS248	MPO pre-terminated patch cord	10M	OS2	48
ZRYD-OM212	MPO pre-terminated patch cord	3M	OM2	12
ZRYD-OM224	MPO pre-terminated patch cord	5M	OM2	24
ZRYD-OM248	MPO pre-terminated patch cord	10M	OM2	48
ZRYD-OM312	MPO pre-terminated patch cord	3M	OM3	12
ZRYD-OM324	MPO pre-terminated patch cord	5M	OM3	24
ZRYD-OM348	MPO pre-terminated patch cord	10M	OM3	48
ZRYD-OM412	MPO pre-terminated patch cord	3M	OM4	12
ZRYD-OM424	MPO pre-terminated patch cord	5M	OM4	24
ZRYD-OM448	MPO pre-terminated patch cord	10M	OM4	48

Pre-terminated jumpers can be customized according to customer requirements

Product Applications

Data center system backbone;
Fiber optic rack system renewals;
Multi-floor deployments and in-building backbones;

Technical Specifications
Connector Type	12 pole low loss MPO connector
connection	MPO（Male or Female）
Fiber Type	OM3, OM4, OS2, etc.
Insertion Losses	≤0.35dB
Return Loss	≥ 20dB
Operating Temperature	-40°C ~ +75°C

ZORA MPO Pre-terminated Patch Cord FAQ

1.What is the ZORA MPO Pre-Terminated Patch Cord?

ZORA MPO pre-terminated patch cord is a factory terminated multi-core fiber optic patch cable that supports high-rate, high-density fiber optic network connections. It is suitable for data center 40G/100G/400G Ethernet, cloud computing and 5G optical transmission scenarios, plug and play, reducing deployment time.

2.What are the key applications?

Data Center Backbones: MPO links between switches and core routers.

Parallel Optics: Compatible with SR4, PSM4 transceivers for 40G/100G.

High-Density Racks: Dense server-to-switch connectivity.

5G Networks: Rapid deployment for fronthaul fiber links.

3. What are the technical specifications?

Fiber Type: Single-mode (OS2) or multimode (OM3/OM4/OM5).

Connectors: MPO-12 (12 fibers) or MPO-24 (24 fibers), APC/UPC polish.

Insertion Loss: ≤0.35dB (multimode), ≤0.5dB (single-mode).

Jacket: LSZH or OFNP (fire-resistant).

Length: Customized length.

4. How does it differ from LC patch cords?

Parameter	ZORA MPO Pre-Terminated	LC Duplex
Fiber Count	12/24 fibers per cord	2 fibers (duplex)
Speed Support	40G/100G/400G	10G/25G
Deployment	Plug-and-play	Requires termination
Cost	Higher (labor-saving)	Lower
