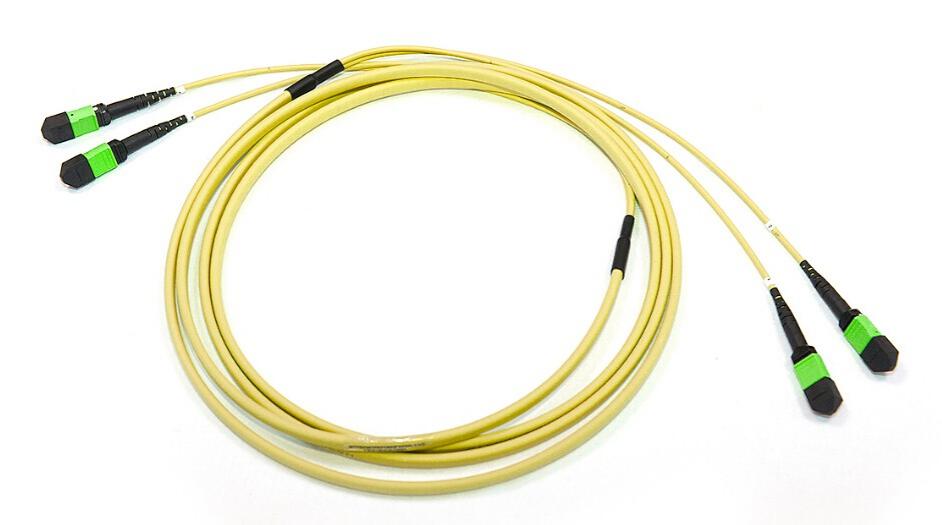

ZORA MPO Trunk Fiber-OS2 Description

ZORA MPO Trunk Fiber-OS2 provides an ideal route for information pathways within a data center's Major Distribution Area (MDA) and specific distribution areas.

With high performance and simplicity, our ZORA low-loss MPO Trunk Fiber are the foundation to support simpler, faster and better pre-terminated solutions for data centers.

Standards Compliance

• ANSI/TIA 568 C.0

• ISO/IEC 11801

• IEC 61034-2

• EN50173-5ISO/IEC24764TIA-942


ZORA MPO Trunk Fiber-OS2 Features

1Reducing the cost of field fusion;

2Reducing the total installation cost;

3Reduce the field fusion splicing errors, greatly reducing the installation time;

4Using low-loss 12-pole MPO connectors to renew, plug and play;

5Pre-terminated and certified in the factory to provide the best optical performance;

6Each cable is tested for 100% low insertion loss and back reflection;

7Support LSZH jacketed OM3, OM4, OS2;

8The length can be selected from 10 meters to 500 meters;

9Optional pull tabs are more convenient and faster.

Product Applications

1Data center system backbone;

2Fiber optic rack system renewals;

3Multi-floor deployments and in-building backbones.

Backbone fiber color can be customized according to customer requirements

1.What is the ZORA MPO Trunk Fiber?

The ZORA MPO Trunk Fiber is a pre-terminated multi-fiber cable with MPO/MTP connectors, designed for high-density backbone connections. It supports 12/24 fibers in single-mode (OS2) or multimode (OM3/OM4/OM5), ideal for data centers and 5G networks.

2.What are the key applications?

Data Center Backbones: Links between core and edge switches.

Parallel Optics: 40G/100G/400G QSFP transceivers.

5G Fronthaul: High-speed links between base stations and CUs.

Server Clusters: Parallel connectivity in dense racks.

3.What are the technical specifications?

Fiber Type: Single-mode (OS2) or multimode (OM3/OM4/OM5).

Fiber Count: 12 (MPO-12) or 24 (MPO-24).

Insertion Loss: ≤0.35dB (MM), ≤0.5dB (SM, UPC polish).

Jacket: LSZH or OFNP (fire-resistant).

Length: Length customization.

4. How does it differ from traditional breakout fibers?

5.Installation precautions?

Bend Radius: ≥30mm (static), ≥15mm (dynamic).

Polarity: Match trunk and breakout polarities (Type A/B/C).

Cleaning: Clean MPO connectors with cassette cleaners.

Handling: Pull via cable jacket, not connectors.

6.How to choose polarity?

Type A (Straight): 1-to-1 mapping, same key positions.

Type B (Reversed): 1-to-12 crossover, reversed keys.

Type C (Pair Swap): Adjacent pairs swapped (special cases).

7.Can it be customized?

Yes! Options include:

• Length: Length customization.

• Jacket Color: Orange (MM), yellow (SM), custom colors.

• Connectors: Male-to-Male (M-M) or Male-to-Female (M-F).
