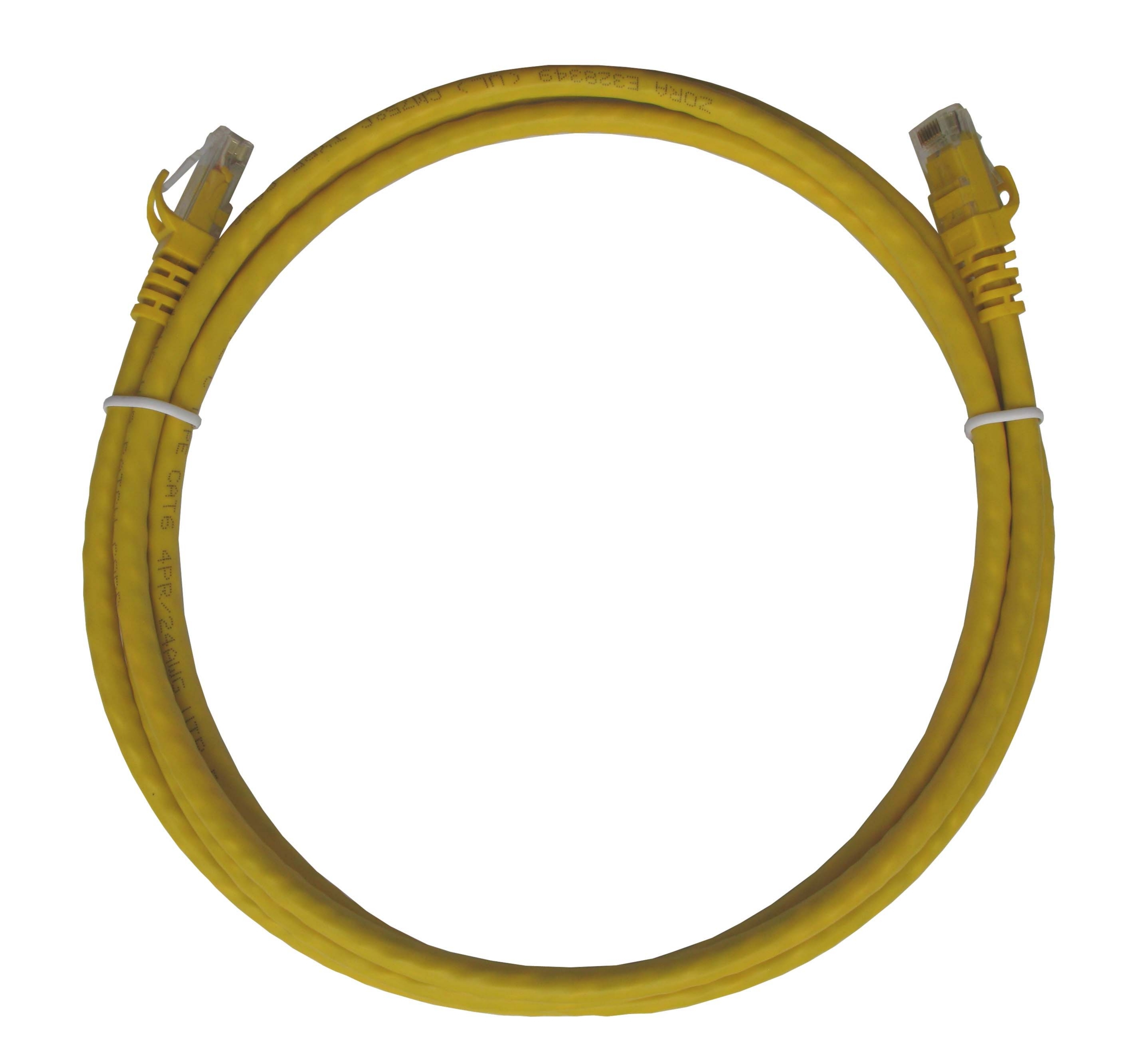

ZORA Cat 6 Unshielded Patch Cord

ZORA Cat 6 unshielded patch cords are suitable for structured cabling systems; they carry digital, voice, data and video signals and are suitable for all Class E channels and Category 6 applications including ISDN, 10 Mbps Ethernet, 100 Mbps Fast Ethernet, 1000 Mbps Ethernet, 4/16 Mbit/s Token Ring, TP-PMD/TP-DDI 125Mbit/s, ATM 155Mbit/s, ATM 622Mbit/s.

Model:
ZRJ2001
Brand:
ZORA

Availability:



Inquire

Product Description

ZORA Cat 6 Unshielded Patch Cords Description

ZORA Cat 6 unshielded patch cords are suitable for structured cabling systems; they carry digital, voice, data and video signals and are suitable for all Class E channels and Category 6 applications including ISDN, 10 Mbps Ethernet, 100 Mbps Fast Ethernet, 1000 Mbps Ethernet, 4/16 Mbit/s Token Ring, TP-PMD/TP-DDI 125Mbit/s, ATM 155Mbit/s, ATM 622Mbit/s.

Standards Compliance

ANSI/TIA 568.2-D
ISO/IEC 11801

ZORA Cat 6 unshielded Patch Cords Features

1Sheath: Gradual type force principle of rubberized sheath, anti-slip and anti-stretch, to ensure the bending

radius;

2The jumper cable adopts multi-strand conductor cable, avoiding the breakage phenomenon during repeated

plugging and unplugging in the process of using;

3Multiple patch cables: provide different colors and lengths of patch cables to meet the different needs of

customers;

4Completely tested to meet ANSI/TIA-568-2.D Cat.6 requirements;

5All colors meet TIA/EIA-606 standard specification.

Ordering Information
Product Number	Product Name	Outer sheath	Color	Length
ZRJ2001	Cat.6 Unshielded Patch Cords	PVC	blue	1m
ZRJ2002	Cat.6 Unshielded Patch Cords	PVC	blue	2m
ZRJ2003	Cat.6 Unshielded Patch Cords	PVC	blue	3m
ZRJ2005	Cat.6 Unshielded Patch Cords	PVC	blue	5m

Length and color can be customized according to customer requirements

Technical Specifications

Cable Construction
Conductor
Material	Stranded Anneal Copper Wire
Wire Size	24AWG
Insulation
Material	PE
Thickness	Nom. 0.59mm
Diameter	1.00 ± 0.03mm
Colors	Blue/White-Blue \| Orange/White-Orange \| Green/White-Green \| Brown/White-Brown
Jacket
Material	PVC or LSZH optional
Thickness	Nom. 0.59mm
Diameter	6.0±0.2mm
Jacket Colors	Available in multiple colors and customizable
Flame rating	CM Style
Maximum Tensile Strength	1.05 kg/mm2

RJ45socket
Housing	PC
Contact Material	Copper alloy 50u” gold plated over nickel
Strength	20lbs. min
Durability	750 cycles min.
Boots	Molded boots prevent pin from bending and cables from kink

Electrical
Impedance	93.8Ω ± 15 Ω
Capacitance unbalance pair to ground	max. 330pf/100m Max
Spark Test	2kV in Air
DC Insulation Resistance	1500MΩ/100m min.
Resistance unbalance	3% MAX./100m
Dielectric Strength	AC-500V/1 Min

ZORA Cat 6 Unshielded Patch Cord FAQ

1.What is the ZORA Cat6 Unshielded Patch Cord?

The ZORA Cat6 Unshielded Patch Cord is a short-length network cable with pre-terminated RJ45 connectors. It uses unshielded twisted-pair (UTP) design compliant with Cat6 (ANSI/TIA 568.2-D) standards, supporting Gigabit Ethernet (1Gbps) and 10Gbps transmission up to 55 meters. Ideal for quick connections between devices, patch panels, and switches.

2. What are the key applications?

Office Networks: Connecting PCs, IP phones to wall outlets.

Data Centers: Linking switches to servers or patch panels.

Security Systems: Short-range NVR-to-camera connections.

Smart Homes: Direct links between routers and smart TVs/game consoles.

3.What are the technical specifications?

Cable Type: Cat6 UTP (Unshielded Twisted Pair).

Wire Gauge: 24AWG or 26AWG .

Bandwidth: 250MHz (supports 10Gbps up to 55 meters).

Connectors: RJ45 (compatible with Cat5e/Cat6 devices).

Jacket: PVC (standard) or LSZH (low-smoke, fire-resistant).

4.How does it differ from Cat5e/Cat6A patch cords?

Parameter	ZORA Cat6 UTP	Cat5e UTP	Cat6A UTP
Bandwidth	250MHz	100MHz	500MHz
10Gbps Distance	55 meters	Not supported	100 meters
Wire Gauge	24AWG (standard)	24AWG	23AWG (thicker)
Cost	Moderate	Low	High
