ZRD5048
ZORA

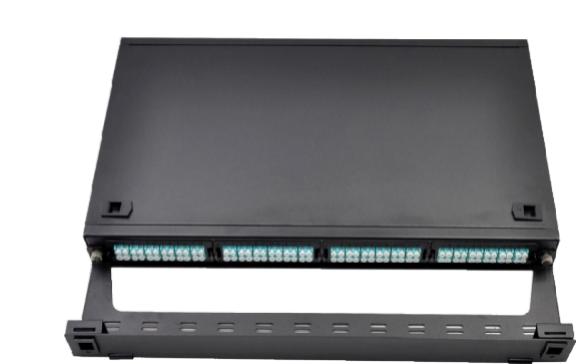

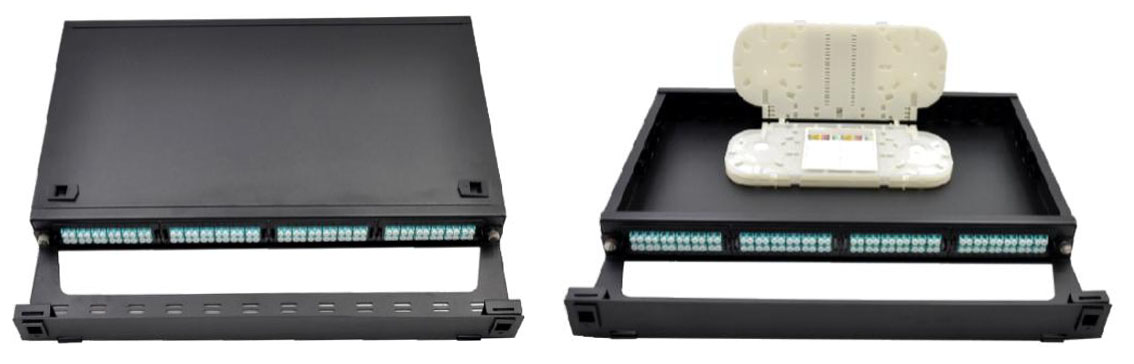

Product Description
11U can be installed with 4 LC 24 core adapter panels, the maximum number of manageable fiber cores is up to 96 cores;
2Configuration of lightweight 24-core fusion fiber tray 4, stacked total of 96 cores; increase the fiber optic cable fixing device, convenient construction;
3Made of high-quality cold-rolled steel plate, the main plate thickness of 1.5mm;
4Removable cable management frame, beautiful and convenient;
5No burrs, no bubbles, no screw fixing, snap-on top cover, tool-free opening.
| Ordering Information | |||||
|---|---|---|---|---|---|
Product Number | Product Name | Adaptor Type | Adaptor Mode | Splice Protectors | Std Ctn Qty |
ZRD5048SC | 1U High Density Fusion Splicing Fiber Optic Distribution Frame | 48x Simplex SC | OS2 | Included | 4 |
ZRD5048SC | 1U High Density Fusion Splicing Fiber Optic Distribution Frame | 48 x Simplex SC | OM2 | Included | 4 |
ZRD5096LC | 1U High Density Fusion Splicing Fiber Optic Distribution Frame | 96 x Simplex LC | OM3 | Included | 4 |
ZRD5096LC | 1U High Density Fusion Splicing Fiber Optic Distribution Frame | 96 x Simplex LC | OM4 | Included | 4 |
Construction | |
Body | |
Body Material | Adoption of high-quality SPCC cold-rolled steel plate |
Board Thickness | 1.5mm |
Sizes | L430mm*W355mm*H44mm |
Body Surface | The surface has been sprayed with special treatment, which is strong, beautiful and not easy to be scratched. |
Front | |
Positive cable manager | Removable cable tray on front |
ZORA 1U High Density Fusion Splicing Fiber Optic Distribution Frame FAQ
The ZORA 1U High Density Fusion Splicing Fiber Distribution Frame is a compact rack-mounted unit designed for fiber optic network splicing and management. It integrates splice trays, adapter modules, and cable management, supporting up to 96 fibers in 1U space. Ideal for data centers and telecom rooms.
Data Centers: Splicing and routing backbone-to-edge fibers.
5G Base Stations: Centralized splicing for fronthaul networks.
Campus Networks: Managing inter-building fiber links.
Broadband Networks: FTTH central office splicing and splitting.
Capacity: 96 fibers/U (4 splice trays ×24 fibers).
Adapters: LC/SC.
Insertion Loss: ≤0.2dB.

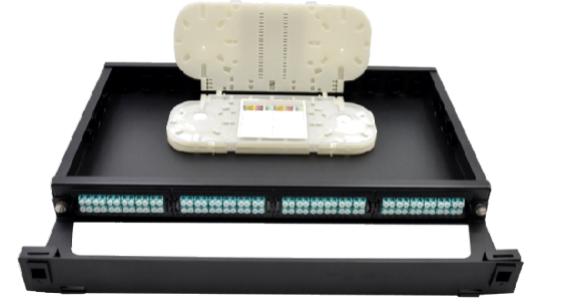

Splice Trays: Flip-up design, compatible with SM/MM fibers.
Rack Compatibility: 19-inch standard rack, depth ≥300mm.
Parameter | ZORA 1U HD Frame | Traditional Frame |
Density | 96 fibers/U | 48 fibers/U |
Splice Tray | Flip-up for easy access | Fixed, difficult access |
Flexibility | Modular adapters | Fixed ports |
Cost | Higher (space-saving) | Lower |
Steps:
Mount the frame to the rack with alignment.
Install splice trays and store slack fibers (bend radius ≥40mm).
Splice fibers to pigtails, secure heat-shrink sleeves.
Insert adapters, connect patch cords, and label ports.
Precautions:
Avoid fiber bends or tension.
Test splice loss with OTDR post-installation.
Cleaning: Clean adapters with fiber pens.
Splice Inspection: Check heat-shrink sleeves for damage.
Fault Finding: Use OTDR to locate breaks and re-splice.
Labeling: Keep port labels consistent with physical links.
