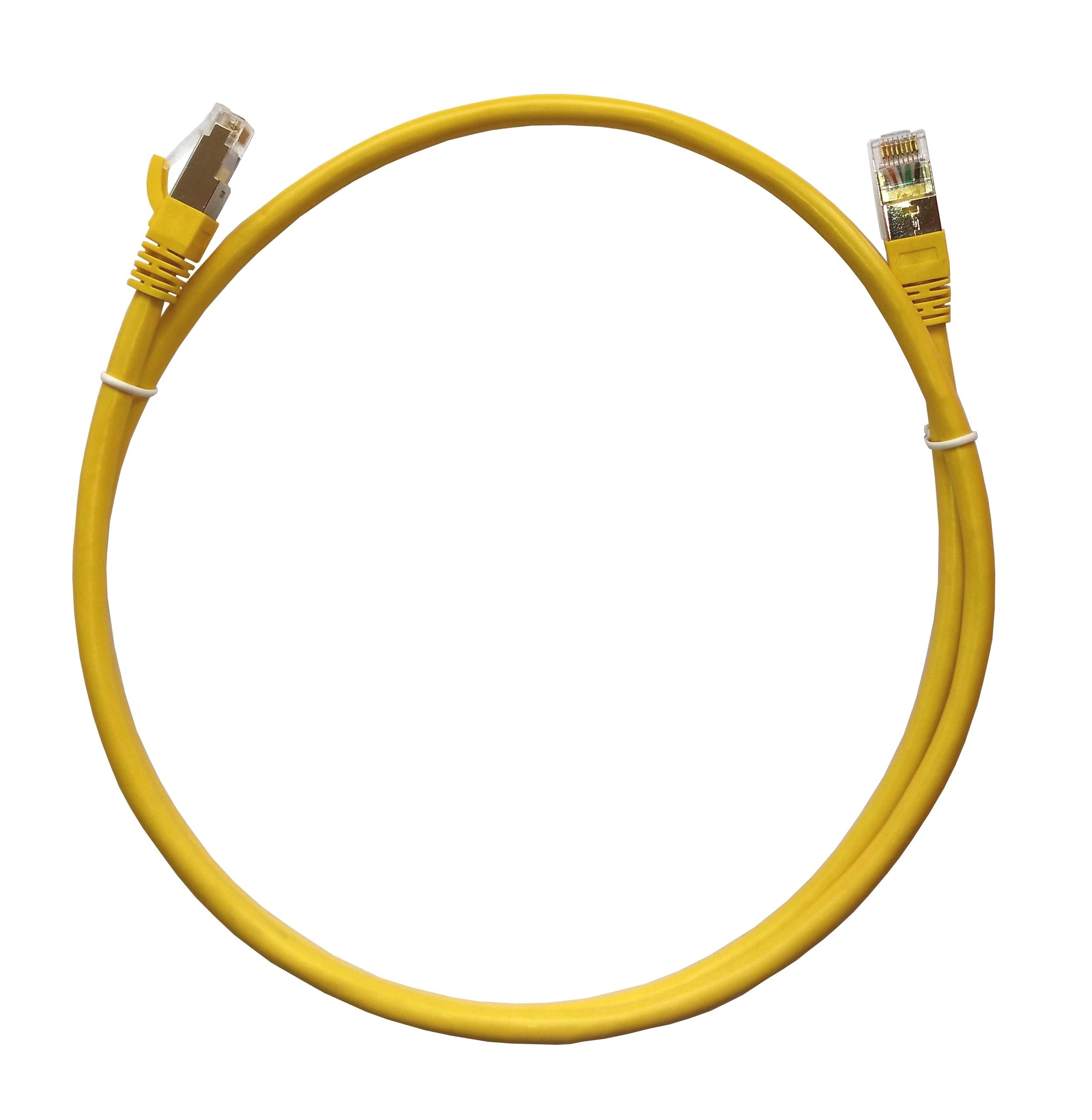

ZORA Cat 6 Shielded Patch Cords Description

ZORA Cat 6 shielded patch cords are suitable for structured cabling systems; they can transmit digital, voice, data and video signals and are suitable for all Class E channels and Category 6 applications including ISDN, 10 Mbps Ethernet, 100 Mbps Fast Ethernet, 1000 Mbps Ethernet, 4/16 Mbit/s Token Ring, TP-PMD/TP-DDI 125Mbit/s, ATM 155Mbit/s, ATM 622Mbit/s.

Standards Compliance

• ANSI/TIA 568.2-D

• ISO/IEC 11801




ZORA Cat 6 Shielded Patch Cords Features

1Sheath: Gradual type force principle of rubberized sheath, anti-slip and anti-stretch, to ensure the bending radius;

2The jumper cable adopts multi-stranded conductor cable, which avoids breakage during repeated plugging and unplugging in the process of use;

3With the help of aluminum foil shielding layer and tinned copper wire to achieve excellent shielding effect;

4Multiple types of patch cables: different colors and lengths of patch cables are available to meet different needs of customers;

5Fully tested to meet ANSI/TIA-568-2.D Cat.6 requirements;

6Various colors meet TIA/EIA-606 standard specification.

Jumper color and length can be customized according to customer requirements

Technical Specifications

1. What is the ZORA Cat6 Shielded Patch Cord?

The ZORA Cat6 Shielded Patch Cord is a network cable with shielded RJ45 connectors, featuring metal shielding (F/UTP or S/FTP) and compliant with Cat6 (ANSI/TIA 568.2-D) standards. It minimizes electromagnetic interference (EMI), supporting Gigabit Ethernet (1Gbps) and 10Gbps transmission up to 55 meters, ideal for industrial facilities and data centers.

2.What are the key applications?

Industrial Automation: Connecting devices near motors and inverters.

Medical Systems: Networking precision instruments in MRI rooms.

Data Centers: Shielded cabling in high-density racks.

Transportation Control: Linking subway signal systems to server rooms.

3.What are the technical specifications?

Shielding: F/UTP (overall foil) or S/FTP (foil per pair + braid).

Bandwidth: 250MHz (supports 10Gbps up to 55 meters).

Wire Gauge: 23AWGor 26AWG.

Grounding: Requires connection to shielded switches or grounded panels.

4.How does it differ from unshielded patch cords?

5.Installation and usage precautions?

Grounding: Connect both ends to shielded devices or ground terminals.

Bend Radius: ≥8x cable diameter (e.g., 48mm for 6mm cable).

Avoid Interference: Keep ≥30cm distance from power cables.

6.Is it compatible with PoE++ (90W)?

Yes! Requirements:

•      Use pure copper Cat6 shielded cables (non-CCA).

•      Ensure end-to-end shield grounding to prevent leakage.

7.How to verify shielding performance?

Visual Check: Ensure shielding layers are intact.

Continuity Test: Use a multimeter to verify shield-ground continuity.

Certification: Validate ANEXT with Fluke DSX testers.
