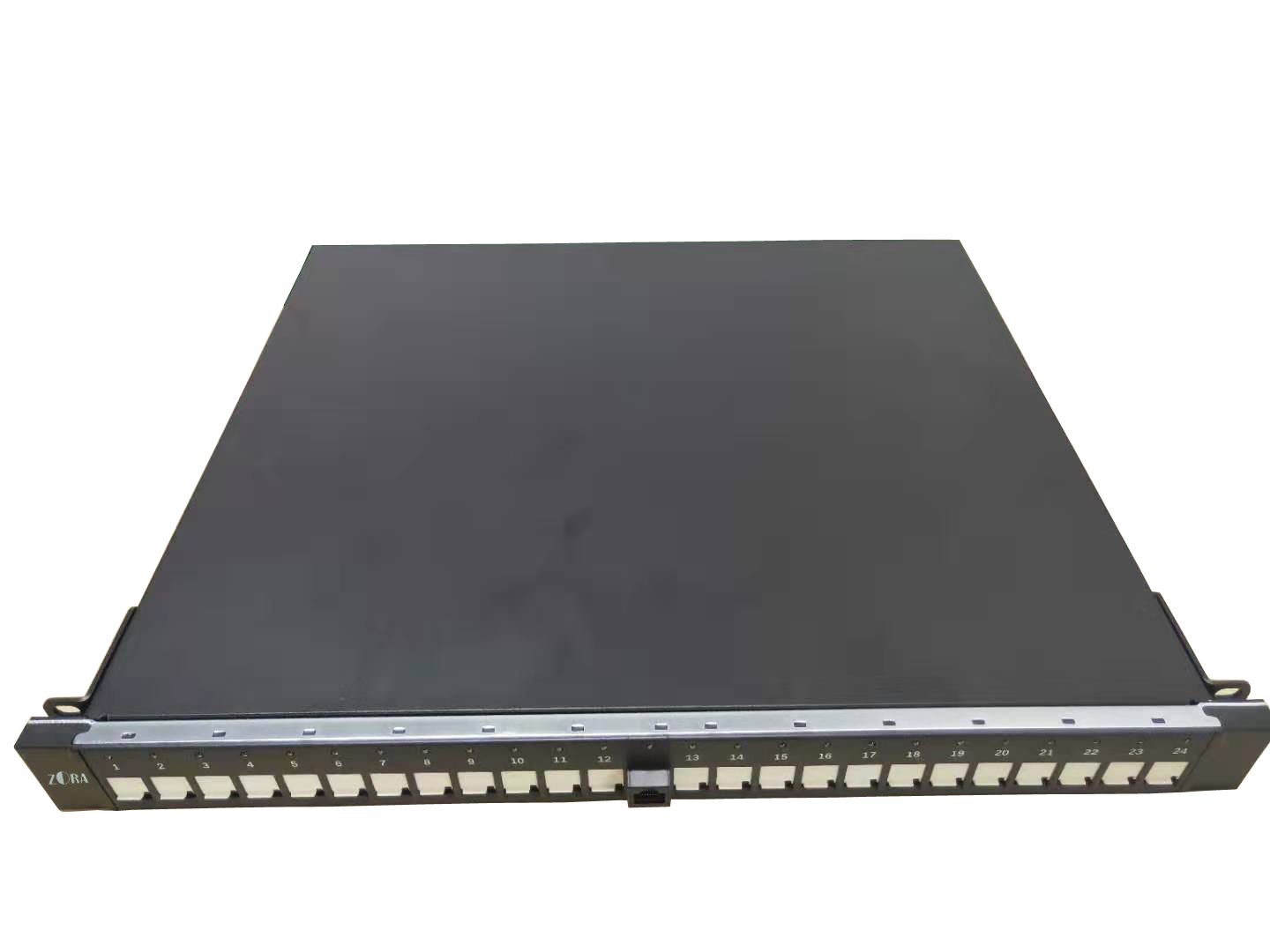

ZORA Fiber Optic Intelligent Distribution Frame

ZORA Intelligent Distribution Frame, also known as Intelligent Cabling Management System, is a system that globally manages the entire comprehensive cabling system with the intelligent distribution frame monitoring port as the entry point. The system can monitor the real-time connection of the jumped links, and analyze, process and archive the monitored data. The system is very suitable for use in data centers with relatively complex network structures, as well as in telecommunication and equipment rooms in various commercial buildings for network system management.

Model:
ZRDD5024
Brand:
ZORA

Availability:



Inquire

Product Description

ZORA Fiber Optic Intelligent Distribution Frame Description

ZORA Intelligent Distribution Frame, also known as Intelligent Cabling Management System, is a system that globally manages the entire comprehensive cabling system with the intelligent distribution frame monitoring port as the entry point. The system can monitor the real-time connection of the jumped links, and analyze, process and archive the monitored data. The system is very suitable for use in data centers with relatively complex network structures, as well as in telecommunication and equipment rooms in various commercial buildings for network system management.

Standards Compliance

ANSI/TIA 568.2-D
ISO/IEC 11801
YD/T778-2011

ZORA Fiber Optic Intelligent Distribution Frame Features

1、High-density, 24-port duplex LC coupler (48 fibers), 1U;

2、Pre-assembled full duplex LC coupler. Singlemode and multimode couplers can be supported;

3、Flip-up cover for cable inlet and outlet can be easily removed, with dustproof design;

4、Combined with electronic sensing system, real-time monitoring and control can be done in the system;

5、Ample operating space makes the installation more convenient;

6、The back panel cable inlet contains Cable inlet protection device;

7、Full fiber optic walking fiber protection design, to ensure that the fiber bending radius ≥ 40mm, to ensure that the performance of the fiber is not affected by the cabling;

8、Products in strict accordance with the requirements of the YD/T778-2011 "Fiber Optic Distribution Frame".

Ordering Information
Product Model	Product Name	Adapter Type	Quantity
ZRDD5024-SC	1U 24-port fiber optic intelligent distribution frame	24* simplex SC	10
ZRDD5024-LC	1U 24-port fiber optic intelligent distribution frame	24* simplex LC	10

Technical Specifications

Structure
Main part
Body Material	Adoption of high-quality SPCC cold-rolled steel plate
Body Surface	The surface has been sprayed with special treatment, which is strong, beautiful and not easy to be scratched.
Leading end
Front	LED indicators and dust caps for each port
Back end
Rear Part	Full steel plate distribution frame structure, to ensure higher mechanical properties of the product

Physical property
Working environment temperature	-40℃～+70℃
Specification	Standard 19-inch rack mount, height：1U
Installation	Modular design for quick installation of ZORA modules

ZORA Fiber Optic Intelligent Distribution Frame FAQ

1: What is the primary function of this fiber optic distribution frame?

Core Function: Centralized management and intelligent monitoring of high-density fiber (SMF/MMF), with real-time link status detection (e.g., optical power, connectivity).
Extended Use: Integrates with management systems to automate patch cord tracking and reduce manual errors.
