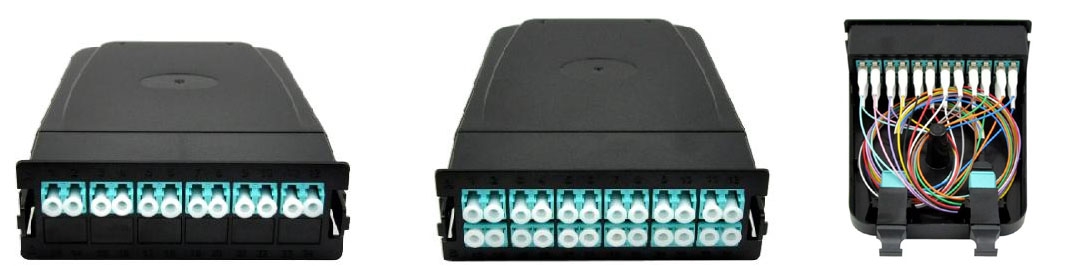

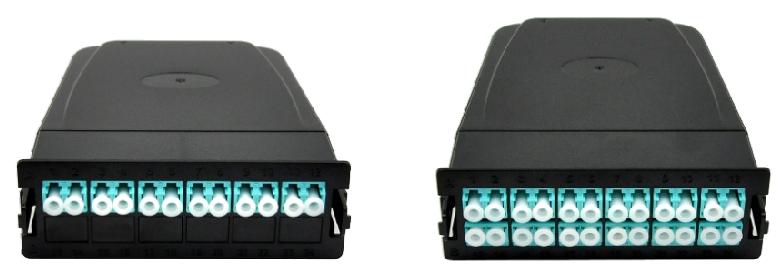

ZRYH-OS ZRYH-OM
ZORA
Product Description
1The box is well sealed and dustproof;
2Snap-in assembly process, all accessories can be assembled with bare hands, realize tool-less and fast assembly;
3The appearance of streamline design, beautiful and generous;

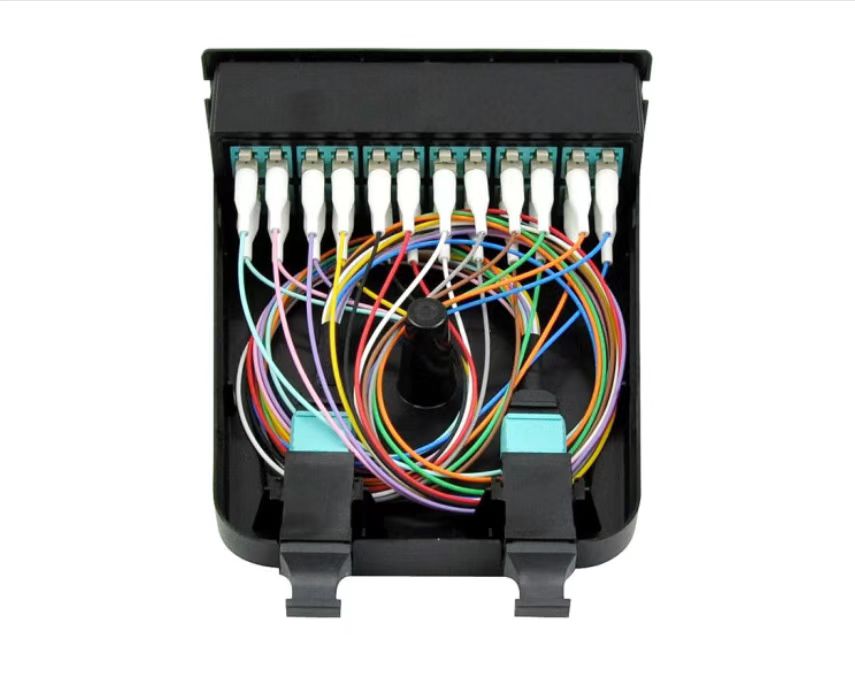

4The top cover of the module box is easy to open and simple to operate;
5Module box internal space is enough, easy to install pre-terminated patch cords.
6Multiple fiber types available: OM3, OM4, OS2 and so on.
| Ordering Information | ||||
|---|---|---|---|---|
Product Number | Product Name | Cover | Mode type | Cores |
| ZRYH-OS212 | MPO Pre-terminated Modular Box | 1 | OS2 | 12 |
| ZRYH-OS224 | MPO Pre-terminated Modular Box | 1 | OS2 | 24 |
| ZRYH-OM212 | MPO Pre-terminated Modular Box | 1 | OM2 | 12 |
| ZRYH-OM224 | MPO Pre-terminated Modular Box | 1 | OM2 | 24 |
| ZRYH-OM312 | MPO Pre-terminated Modular Box | 1 | OM3 | 12 |
| ZRYH-OM324 | MPO Pre-terminated Modular Box | 1 | OM3 | 12 |
| ZRYH-OM412 | MPO Pre-terminated Modular Box | 1 | OM4 | 12 |
| ZRYH-OM424 | MPO Pre-terminated Modular Box | 1 | OM4 | 24 |
Construction | |
Body | |
Body Material | PC+ABS |
PC+ABS Advantages | Toughness and strength stronger than conventional plastics, not easy to break |
| Norm | |
12 pole modular box | Includes 6 LC duplex adapters, 1 MPO adapter, 1 MPO male-LC low-loss patch cable |
24 pole modular box | Includes 12 LC duplex adapters, 2 MPO adapters, 2 MPO male-LC low-loss patch cables |
ZORA MPO Pre-terminated Module Box FAQ
The ZORA MPO Pre-terminated Module Box is a high-density fiber management solution with integrated MPO connectors and pre-terminated fiber patchcords for rapid deployment of multi-core fiber in a data center or enterprise network. Plug-and-play support simplifies backbone connectivity for 40G/100G/400G networks.
Data Center Backbones: MPO links between core and edge switches.
Parallel Optics: Compatible with QSFP28, QSFP-DD transceivers.
5G Fronthaul: Fiber connectivity between base stations and CUs.
Server Clusters: Managing parallel links in high-density racks.
Fiber Count: 12/24 fibers (male/female MPO).
Fiber Type: Single-mode (OS2) or multimode (OM3/OM4/OM5).
Insertion Loss: ≤0.35dB (multimode), ≤0.5dB (single-mode).
