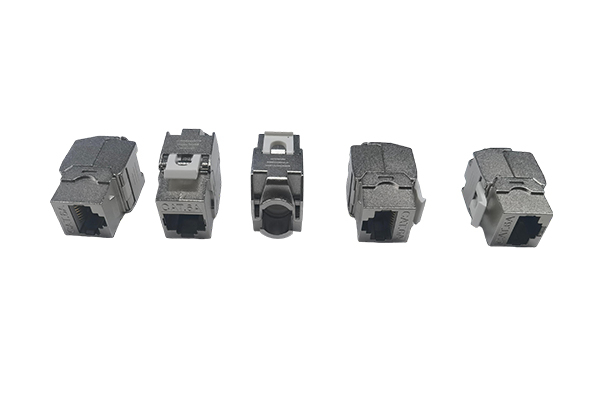

ZORA Cat 6A Shielded Module

ZORA Cat 6A shielded modules are used in data network communications, telecommunication rooms, with information outlet panels or desktop boxes, etc. in the work area.

Model:
ZRMB3012
Brand:
ZORA

Availability:



Inquire

Product Description

ZORA Cat 6A Shielded Module Description

ZORA Cat 6A shielded modules are used in data network communications, telecommunication rooms, with information outlet panels or desktop boxes, etc. in the work area.

Standards Compliance

ANSI/TIA 568.2-D
ISO/IEC 11801

ZORA Cat 6A Shielded Module Features

1、Designed according to international standards ISO/IEC11801, ANSI/TIA-568-2.D, with excellent performance and reliability;

2、The whole surface of 8 gold needles in the module is gold-plated, which ensures to reach the minimum contact resistance and the longest service life;

3、The overall metal die-casting, 360 ° full shielding, to ensure the safety of information transmission and performance;

4、Transmission bandwidth can reach 500MHz;

5、The internal gold needle cross structure makes the elasticity is very good, even if the user frequently connects and plugs, but also can maintain good contact;

6、It is installed in a wire-free way, which is more convenient and quicker.

Ordering Information
Product Number	Product Name	Orientation	Color	Qty / Box	Qty / CTN
ZRMB3012	ZORA lines vertically	Vertical	Silver	100	600

Technical Specifications

Construction
Body
Connector Housing	High-impact, Flame Retardant Plastic
Standard	UL94V-0 rated
Front Connection
Contact Type	Spring Wire
Material	Phosphor Bronze Alloy
Contact Plating	Nickel plated 100μinch, then gold plated 50μinch
Shielding	Integral metal die-casting molding
Rear Terminals
Terminal Type	IDC
Material	Phosphor Bronze Alloy with 100 micro-inch 100% Sn Alloy

Physical Ranges
Temperature Range	Storage -40℃～+70℃, working -10℃～+60℃.
Relative Humidity	Operational : Max. non-condensing 93%
Insertion/Extraction Life	≥750
No. of IDC Terminations	≥200
Insertion/Extraction Strength	≥800grams
Retention	50N (11 Ibs) for 60s ± 5s

Electrical
Insulation Resistance	500 MΩ min.@ 100V d.c
Dielectric strength (core-to-core, 1 min DC)	1kV
Spring Wire Contact Resistance	20 mΩ max.
Rated voltage/current	150VAC/1.5A
IDC Contact Resistance	2.5 mΩ max.

ZORA Cat 6A Shielded Module FAQ

1: What is the ZORA Cat 6A Shielded Module?

This is a Category 6A shielded network module designed for high EMI environments, supporting 10Gbps Ethernet. Its metal shielding (foil/braid) suppresses interference, ideal for industrial networks, data center cores, and medical facilities.

2: What are the maximum speed and distance supported?

With Cat 6A shielded cables, it supports 10GBASE-T (10Gbps) up to 100 meters, compliant with ISO/IEC 11801-1 (500MHz bandwidth). Shorter runs (≤50m) enhance alien crosstalk resistance.

3: Are special installation steps required?

Grounding: End-to-end grounding is mandatory! Connect the patch panel’s grounding terminal to the rack’s grounding system.
Cable handling: Ensure shield contact with the module’s metal housing; untwist pairs ≤13mm.
Tools: Use shielded termination tools (e.g., KRONE tools) to preserve shield integrity.

4: Can it work with unshielded cables/devices?

Physically compatible, but mixing components negates shielding benefits and may cause ground loops. Use end-to-end shielded systems (cables, panels, patch cords).

5: What are the advantages of its shielding and materials?

Full-metal shield: 360° coverage against EMI/RFI.
Gold-plated contacts: 50μ-inch gold layer for oxidation resistance.
Flame-retardant housing: UL 94V-0 certified for harsh environments.

6: How to verify shielding effectiveness?

Basic test: Use a multimeter to check shield-to-ground continuity (resistance ≤1Ω).
Advanced test: Validate ANEXT, TCL with Fluke DSX-5000 per Cat 6A shielded specifications.
