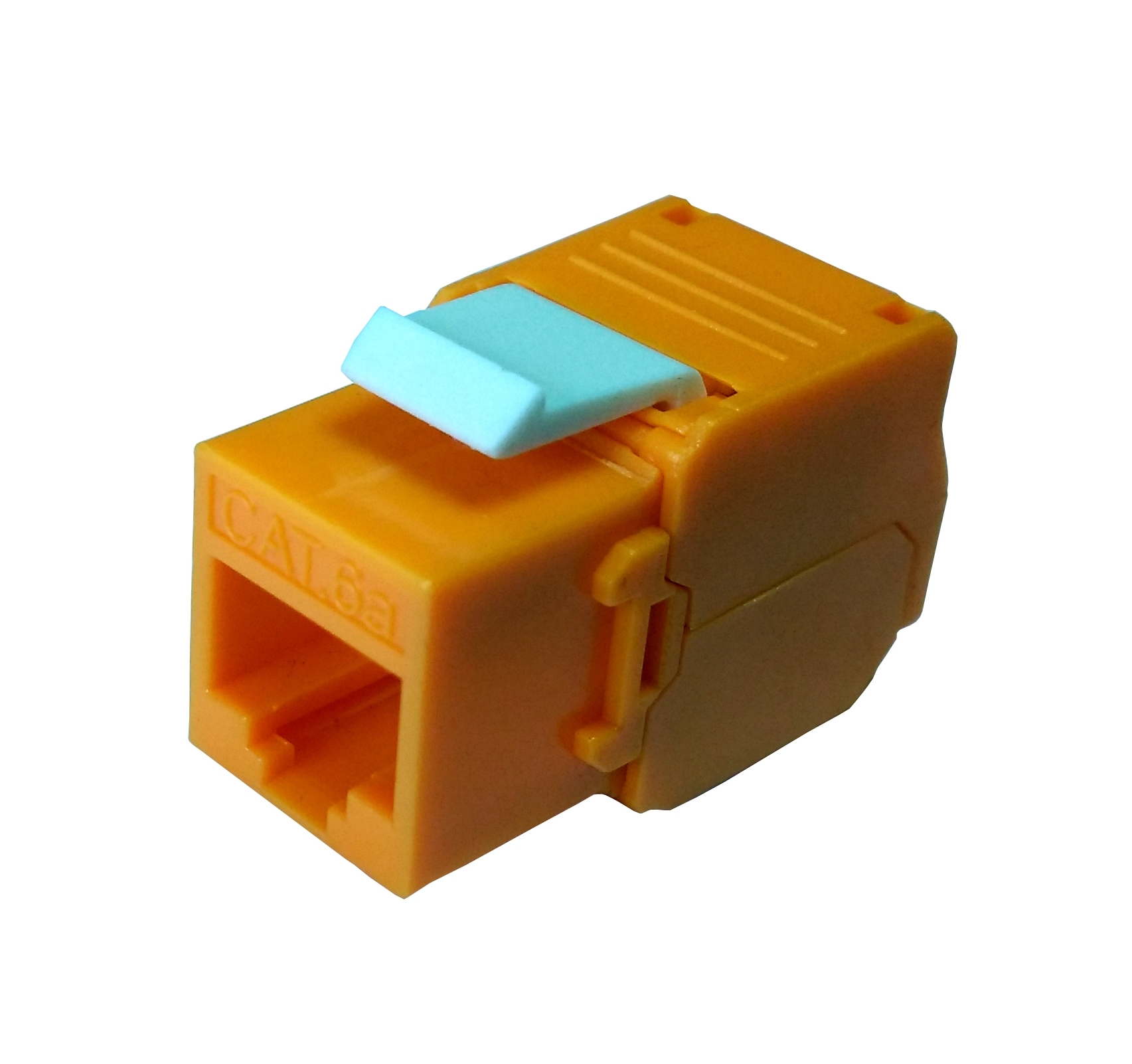

ZORA Cat 6A Unshielded Module

ZORA Cat 6A unshielded modules are used in data network communication, telecommunication room, with information outlet panel or desktop box, etc. in the work area.

Model:
ZRM3012
Brand:
ZORA

Availability:



Inquire

Product Description

ZORA Cat 6A Unshielded Module Description

ZORA Cat 6A unshielded modules are used in data network communication, telecommunication room, with information outlet panel or desktop box, etc. in the work area.

Standards Compliance

ANSI/TIA 568.2-D
ISO/IEC 11801

ZORA Cat 6A unshielded module Features

1Designed according to international standards ISO/IEC11801, ANSI/TIA-568-2.D, with excellent performance and reliability;

2The surface of 8 gold needles in the module is gold-plated as a whole, which ensures to reach the minimum contact resistance and the longest service life;

3Transmission bandwidth can reach 500MHz;

4Special internal and external design, internal gold needle cross structure makes good flexibility, even if the user is frequently connected and plugged in, but also to maintain good contact;

5It is more convenient and quicker to install it by wire-free way.

Ordering Information
Product Number	Product Name	Color	Qty / Box	Qty / CTN
ZRM3012	Cat 6A unshielded modules	yellow	100	600

Module colors can be customized according to customer requirements

Technical Specifications

Construction
Body
Connector Housing	High-impact, Flame Retardant Plastic
Standard	UL94V-0 rated
Front Connection
Contact Type	Spring Wire
Material	Phosphor Bronze Alloy
Contact Plating	Nickel plated 100μinch, then gold plated 50μinch
Rear Terminals
Terminal Type	IDC
Material	Phosphor Bronze Alloy with 100 micro-inch 100% Sn Alloy

Physical Ranges
Temperature Range	Storage -40℃～+70℃, working -10℃～+60℃.
Relative Humidity	Operational : Max. non-condensing 93%
Insertion/Extraction Life	≥750
No. of IDC Terminations保存	≥200
Insertion/Extraction Strength	≥800grams
Retention	50N (11 Ibs) for 60s ± 5s

Electrical
Insulation Resistance	500 MΩ min.@ 100V d.c
Dielectric strength (core-to-core, 1 min DC)	1kV
Spring Wire Contact Resistance	20 mΩ max.
Rated voltage/current	150VAC/1.5A
IDC Contact Resistance	2.5 mΩ max.

ZORA Cat 6A unshielded module FAQ

1: What is the ZORA Cat 6A Unshielded Module?

This is a Category 6A Unshielded (UTP) network module supporting 10Gbps Ethernet, designed for patch panels or wall outlets. Its precision-twisted pair structure minimizes crosstalk, ideal for offices, homes, and low-EMI server rooms.

2: What are the maximum speed and distance supported?

With Cat 6A cables, it supports 10GBASE-T (10Gbps) up to 100 meters, compliant with TIA-568.2-D standards (500MHz bandwidth). Shorter runs (≤50m) ensure higher stability.

3: What are the installation tips?

Limit untwisting of pairs to ≤13mm.
Terminate wires following T568A/B standards.
Use professional punch-down tools (e.g., KRONE) for secure contacts.

4: Is it compatible with Cat 5e or Cat 6 cables?

Physically compatible, but link performance depends on the lowest-rated component. For example, Cat 6 cables limit the link to 250MHz (10Gbps up to 55m).

5: How does material affect performance?

Gold-plated contacts: Anti-corrosion for long-term reliability.
Oxygen-free copper (OFC): Low signal loss vs. copper-clad aluminum.
Flame-retardant housing: UL 94V-0 certified for high-density racks.

6: Does it require grounding?

No grounding needed for unshielded modules. Avoid mixing with shielded components to prevent grounding conflicts.

7: How to verify performance compliance?

Basic test: Use a continuity tester to check all 8 conductors.
Advanced test: Validate insertion loss, RL, and NEXT with tools like Fluke DSX-8000 per Cat 6A specs.

8: Why choose unshielded over shielded modules?

Unshielded modules are cost-effective and easier to install in low-EMI environments. Shielded versions are recommended only for industrial/high-interference areas.
