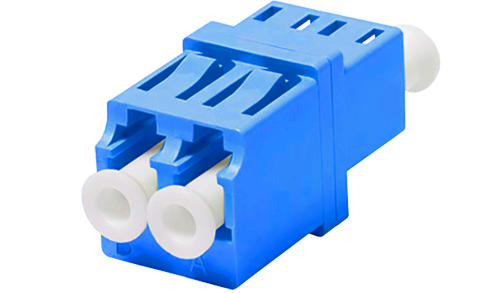

ZORA OS2 Single Mode Dual Core Coupler LC-LC

The ZORA OS2 Single Mode Dual Core Coupler LC-LC (also known as an adapter) is designed to provide a system of precise alignment of optical fibers for two paired fiber connectors. It is the precision alignment of the two end faces of an optical fiber to maximize the coupling of the light energy output from the transmitting fiber to the receiving fiber.

Model:
ZRQ5201-LC
Brand:
ZORA

Availability:



Inquire

Product Description

ZORA OS2 Single Mode Dual Core Coupler LC-LC Description

The ZORA OS2 Single Mode Dual Core Coupler LC-LC (also known as an adapter) is designed to provide a system of precise alignment of optical fibers for two paired fiber connectors. It is the precision alignment of the two end faces of an optical fiber to maximize the coupling of the light energy output from the transmitting fiber to the receiving fiber.

ZORA's fiber optic couplers allow transmission of a light source between the fibers with minimal insertion loss while maintaining excellent interactivity and insertion and removal life (times).

Standards Compliance

ANSI/TIA 568 D.3
ISO/IEC 11801

ZORA OS2 Single Mode Dual Core coupler LC-LC Features

adopts high precision zirconia to ensure good physical bearing capacity and plugging performance;
good compatibility, small fiber concentricity error;
excellent plugging life (times);
low insertion loss, high reliability and stability;
offers a wide range of model classifications: FC, SC, ST, LC, MTRJ, MU, and so on.

Product Applications

Fiber Optic Communications;
Regional, Wide Area & Global Networks;
High Electromagnetic Interference (EMI / RFI) environments;

Ordering Information
Product Number	Product Name	Shuttering	Mode Type	Adapter Color
ZRQ5201	Single Mode Dual Core Coupler LC-LC	Unshuttered	OS2	Blue
ZRG5202	Single Mode Dual Core Coupler LC-LC	Unshuttered	OM2	Beige
ZRG5203	Single Mode Dual Core Coupler LC-LC	Unshuttered	OM3	Wathet
ZRG5204	Single Mode Dual Core Coupler LC-LC	Unshuttered	OM4	Purple

Technical specification

Mode Type	OS2
Ferrule Diameter	1.25mm
Number of Insertions	≥ 500
Connection Type	LC female
Protection Rating	IP20
Ambient Temperature (Operating)	-40°C ~ +80°C
Ambient Temperature (Storage)	-40°C ~ +85°C
Number of Fiber Optics	2Fiber
Shell Material	Plastics
Ferrule Material	Zirconia Ceramics
Insertion Loss	≤0.2dB
Return Loss (dB) Singlemode	≥ 30dB
Return Loss (dB) Multimode	≥ 45 dB

ZORA OS2 Single Mode Dual Core Coupler LC-LC FAQ

1. What is the ZORA OS2 Single Mode Dual Core Coupler LC-LC?

The ZORA OS2 Single Mode Dual Core Coupler LC-LC is a fiber optic coupler designed for single mode fibers, featuring LC-LC connectors. It is used to transfer optical signals from one fiber to another, enabling signal splitting or combining.

2. What is the directivity of this coupler?

The directivity of this coupler is typically ≥55 dB, ensuring that the signal does not leak back during the coupling process.

3. How durable is this coupler?

This coupler has undergone rigorous mechanical and environmental testing and can operate in a temperature range of -40°C to +85°C. It is also resistant to shock and vibration.

4. What is the lifespan of this coupler?

Under normal usage conditions, the lifespan of this coupler can be over 20 years.

5. How to install and maintain this coupler?

During installation, ensure that the fiber end faces are clean and free of dust and dirt to avoid affecting signal transmission. After installation, regularly check that the connectors are not loose to ensure the coupler operates properly. During maintenance, use professional cleaning tools and testing equipment.
