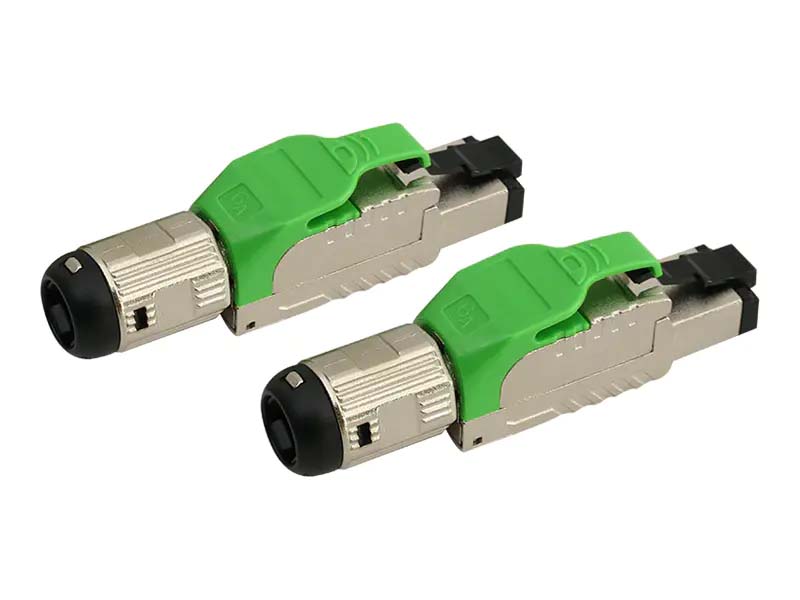

ZORA Cat 6A Shield RJ45 Plugs

With more and more industrial equipment and devices using IT network connections for control, there is a need for a more anti-interference and structurally robust modular connector compared to ordinary office area network plugs. ZORA Cat 6A Shield RJ45 Plugs are designed as pressure free field terminated shielded RJ45 Plugs, making on-site connections simple and fast, and capable of working in extreme environments.

Model:
ZRQ3101
Brand:
ZORA

Availability:



Inquire

Product Description

ZORA Cat 6A Shield RJ45 Plugs Description

With more and more industrial equipment and devices using IT network connections for control, there is a need for a more anti-interference and structurally robust modular connector compared to ordinary office area network plugs. ZORA Cat 6A Shield RJ45 Plugs are designed as pressure free field terminated shielded RJ45 Plugs, making on-site connections simple and fast, and capable of working in extreme environments.

Standards Compliance

ANSI/TIA 568.2-D
ISO/IEC 11801

ZORA Cat 6A Shield RJ45 Plugs Features

1. Performance complies with ANSI/TIA.568B-2-D and ISO/IEC-11801;

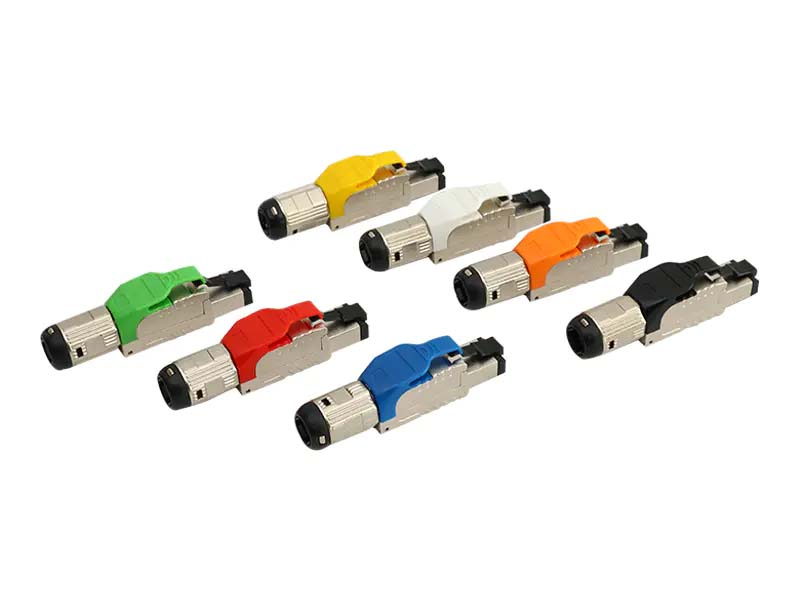

2. Multiple colors to choose from;

3. Having DELTA/UL/CE certification;

4. Wire diameter: 23-26AWG, outer diameter: 6.0-7.5MM;

5. Crystal head 50 μ "gold plating layer;

6. Plug and unplug usage times: ≥ 1200 times;

7. Support 4PoE (IEEE802.3bt/IEC60512-99-002 applications);

8. Working temperature: -10~60 ℃;

9. Compliant with RoHS and REACH

Ordering Information
Product Number	Product Name	Orientation	Color	Qty / Box	Qty / CTN
ZRQ3101	ZORA Cat 6A Shield RJ45 Plugs	Vertical	Silver	100	1000

Technical Specifications

Construction
Connector Housing	Zinc die-Casting with nickel plated
RJ45 plug
Housing	PC，UL 94V-2
Contact material	Phosphor bronze with 100 micro-inch nickel plated
Contact finish	Min.50 micro-inch gold plated on surface contact area
IDC
Housing	PC,white color,UL 94-V2
Terminal	Titanium copper withtin plated
Accepted IDC Wire Gauges	23-26AWG

Physical Ranges
Temperature Range	Storage -40℃～+70℃, working -10℃～+60℃.
Relative Humidity	Operational : Max. non-condensing 93%
Retention strength	7.7kg between jack and plug.
Insertion/Extraction Life	≥1200
No. of IDC Terminations	≥200

Electrical

Insulation Resistance

500 MΩ min.@ 100V d.c

Dielectric strength (core-to-core, 1 min DC)

1kV

ZORA Cat 6A Shield RJ45 Plugs FAQ

Q1: What is ZORA CAT6A Tool-Free Shielded RJ45 Connector?

This connector is designed for CAT6A shielded cables, featuring a tool-free termination mechanism for rapid installation without crimping tools. With 360° metal shielding, it supports 10Gbps transmission and suppresses EMI interference.
