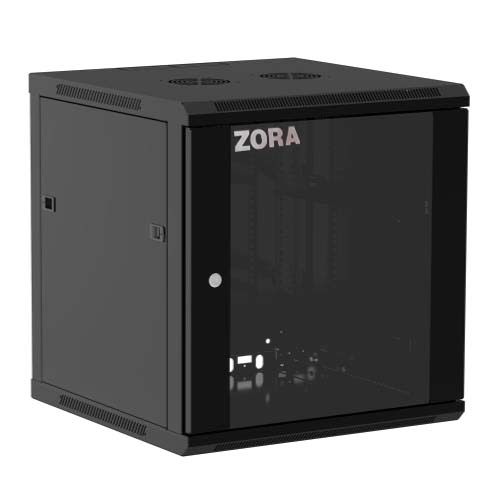

ZORA Wall Mounted Cabinet

ZORA wall-mounted cabinets are used to install 19-inch rack-mounted hardware and store the customer's required IT equipment (such as switches, routers, communications equipment and other lightweight equipment) floor to wall cabinets, can support hanging walls, can also be placed on the ground, with good network cable and communications cable management management management capabilities.

Model:
ZRB1464-/6U/9U/12U
Brand:
ZORA

Availability:



Inquire

Product Description

ZORA Wall Mounted Cabinet Description

ZORA wall-mounted cabinets are used to install 19-inch rack-mounted hardware and store the customer's required IT equipment (such as switches, routers, communications equipment and other lightweight equipment) floor to wall cabinets, can support hanging walls, can also be placed on the ground, with good network cable and communications cable management management management capabilities.

Standards Compliance

GB/T 19520.16-2015
ANSI/EIA RS-310-D
EC60297-2

ZORA Wall Mounted Cabinet Features

119-inch standard cabinet construction design;

2Top and bottom knock-down cable routing holes for easy cable management；

3Front door opening direction can be changed as needed, quick-opening side door, convenient for two installation methods；

4Load capacity up to 60KG, protection class up to IP20；

5Pre-assembled pegboard for wall mounting and internal screw locking to prevent theft or accidental dropping;

6Pre-assembled bays to hold required equipment.

Ordering Information
Product Number	Product Name	Cabinet size	Colour	Qry/CTN
ZRB1464-6U	wall mounted cabinet	600×450×350mm	Black	1
ZRB1464-9U	wall mounted cabinet	600×450×500mm	Black	1
ZRB1464-12U	wall mounted cabinet	600×450×650mm	Black	1

Technical Specification

Structure
Main Part
Makings	Made of high quality SPCC cold rolled steel plate
Surface	Degreased, pickled, phosphated, electrostatically sprayed
Color	Black
Front Door
Makings	Single opening tempered glass door with adjustable left and right opening directions.
Left and right side doors
Side Pane	Quick release side panels with plastic clasps
Internal Composition
Frame	Integral welded frame, stable and reliable structure
Angle Gauge	4 mounting angle gauges
Top Plate	Rear knock-down holes for cable routing, 2-position fan ventilation holes reserved
Bottom Plate	Rear cable routing
Hanging Plate	Auxiliary wall mounts for easy positioning
Back Plate	Enclosed space with cabinet
Bracket	2pcs/4pcs pre-installed brackets for equipment
Kit	M6*12 plum groove screws + M6 jam nut + plum wrench
Tray (optional)	19-inch standard mounting, equipment can be placed
Fan (optional)	220V AC fan for ventilation and heat dissipation Rackmount Power Distribution Units
PDU (optional)	Integral welded frame, stable and reliable structure

Physical Property
Static load	60KG
Protection rating	IP20
Cabinet width (mm)	600
Cabinet depth (mm)	450
Cabinet height (mm)	281	370	635	768	902	1079
U Position	4U	6U	12U	15U	18U	22U

ZORA Wall Mounted Cabinet FAQ

1.What is the ZORA Wall Mounted Cabinet?

The ZORA wall mounted cabinet is a lightweight metal enclosure designed to save floor space, fixed on walls or columns for installing small-to-medium network equipment (e.g., switches, routers, patch panels).
