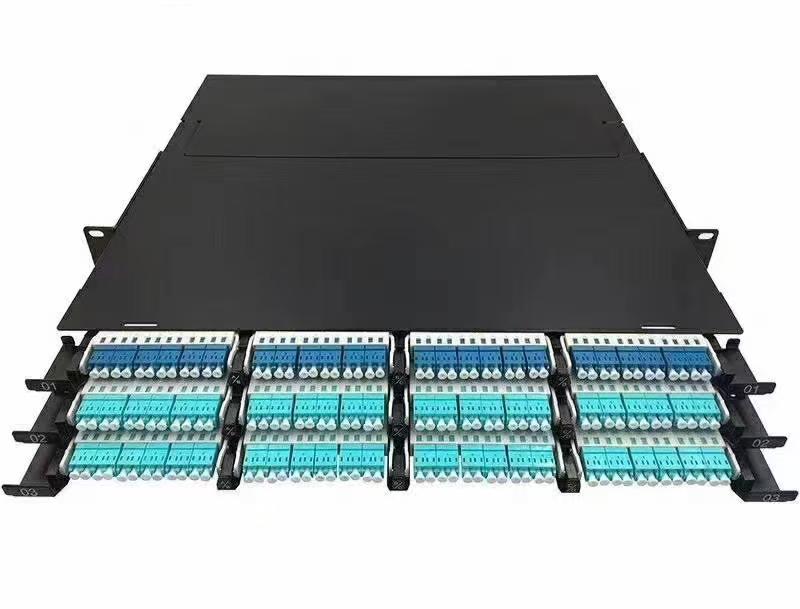

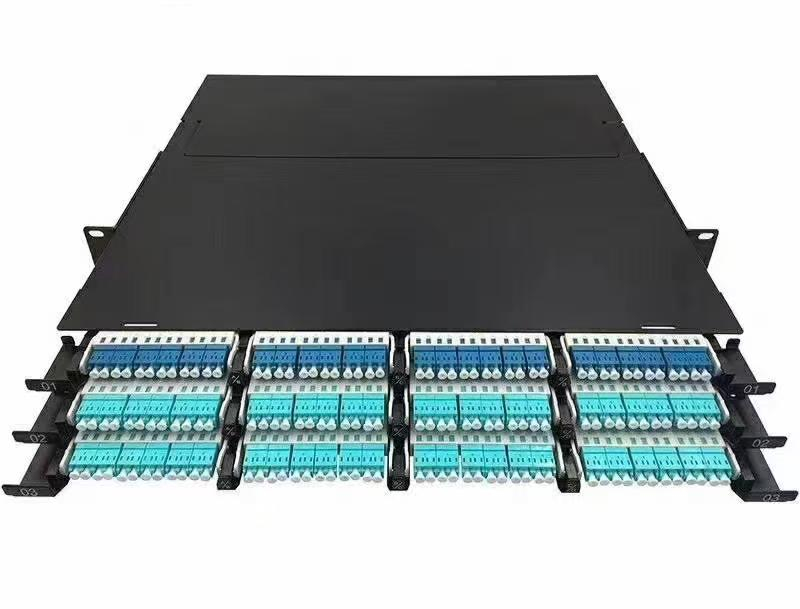

ZORA 1U 144 Cores MPO Pre-Terminated Fiber Optic Patch Panel Features

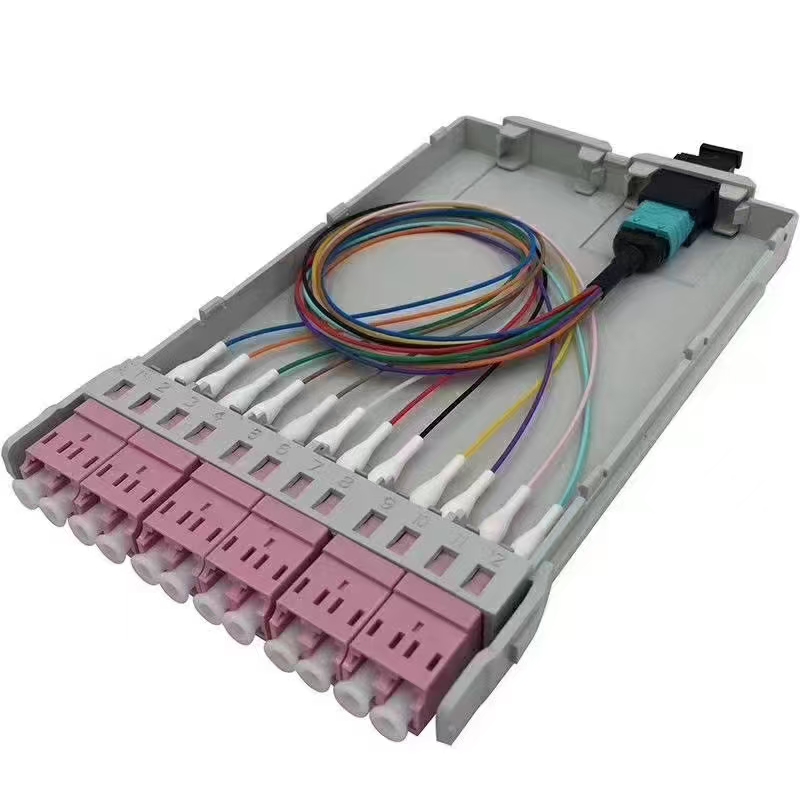

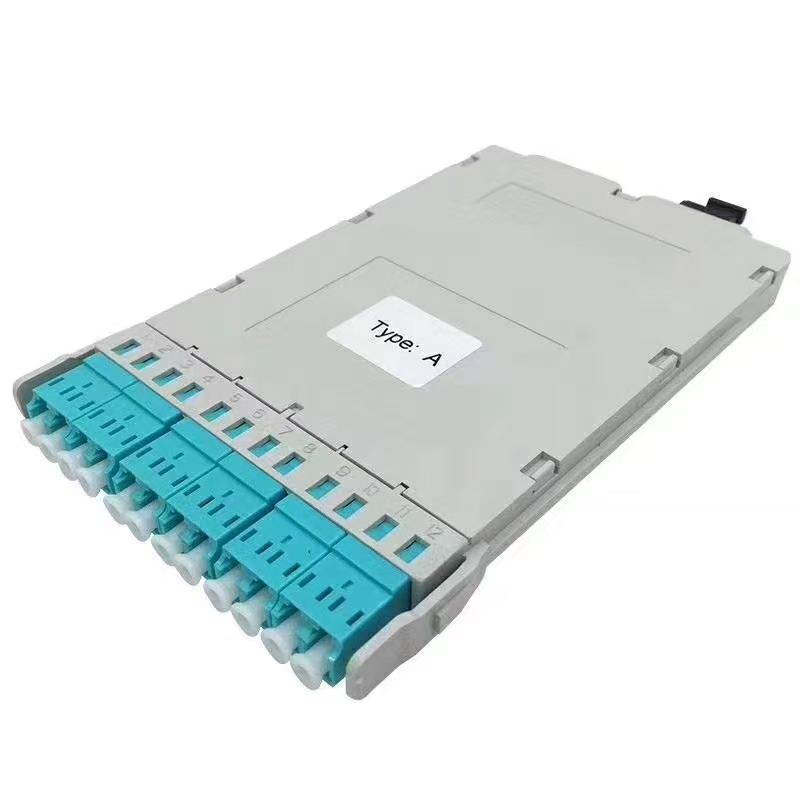

11U can be fitted with twelve 12-core MPO pre-terminated modular boxes, managing up to 144 fiber cores;

21U can install 12 MPO adapter panels, which can manage fiber cores up to 576 cores;

3Made of cold-rolled steel plate, three-drawer structure, surface baking paint process;

4Comes with 1U cable management rack, beautiful and convenient;

5No burrs, no bubbles, no screw fixing, tool-free opening;

6Lightweight, easy to operate, quick wiring.

Technical Specifications

1. What is the ZORA 1U 144 Cores MPO Pre-Terminated Fiber Patch Panel?

The ZORA 1U 144 Cores MPO Pre-Terminated Fiber Patch Panel is a high-density fiber management solution for data centers and high-speed networks. It supports MPO/MTP connectors (e.g., 12 fibers×12) with factory-terminated ends, enabling rapid deployment and scalability.

2.What are the key applications?

Data Centers: Backbone links for 40G/100G/400G Ethernet.

Cloud Computing: Optical interconnects between servers and core switches.

Enterprise Networks: High-density fiber-to-the-desk (FTTD) systems.

5G Base Stations: Centralized cabling for fronthaul/backhaul networks.

3.What are the technical specifications?

Ports: MPO-12 (male/female options).

Compatibility: APC/UPC polish, single-mode (OS2) or multimode (OM3/OM4/OM5).

Insertion Loss: ≤0.35dB (multimode), ≤0.5dB (single-mode).

Rack Mount: 19-inch standard rack (1U height).

4.How does it differ from LC patch panels?

5.Installation steps and precautions?

Steps:

•    Mount the panel to a 1U rack space.

•    Insert and lock pre-terminated MPO modules.

•    Connect trunk fibers to breakout cables with correct polarity (Type A/B/C).

•    Manage slack fibers with cable managers (bend radius ≥30mm).

Precautions:

•    Clean MPO end faces before installation.

•    Avoid pulling or twisting fibers to prevent damage.

6.Can it be customized?

Yes! Options include:

•    Modules: Single-mode/multimode, APC/UPC.

•    Port Mix: Combine 12-fiber modules.

•    Length: Custom trunk lengths (5-50 meters).

7.Maintenance and troubleshooting?

Maintenance: Clean ports with MPO-specific tools.

Attenuation: Use OTDR to locate losses; replace faulty modules.

Polarity Issues: Verify polarity via color codes or testers.
