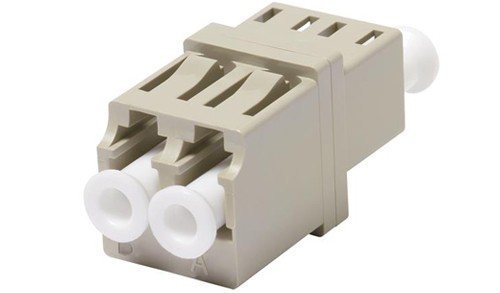

ZORA OM2 Multimode Dual Core Coupler LC-LC

The ZORA OM2 Multimode Dual Core Coupler LC-LC (also known as an adapter) is designed to provide a system of precise alignment of optical fibers for two paired fiber connectors. It is the precision alignment of the two end faces of an optical fiber to maximize the coupling of the light energy output from the transmitting fiber to the receiving fiber.

Model:
ZRG5202-LC
Brand:
ZORA

Availability:



Inquire

Product Description

ZORA OM2 Multimode Dual Core Coupler LC-LC Description

The ZORA OM2 Multimode Dual Core Coupler LC-LC (also known as an adapter) is designed to provide a system of precise alignment of optical fibers for two paired fiber connectors. It is the precision alignment of the two end faces of an optical fiber to maximize the coupling of the light energy output from the transmitting fiber to the receiving fiber.

ZORA's fiber optic couplers allow transmission of a light source between the fibers with minimal insertion loss while maintaining excellent interactivity and insertion and removal life (times).

Standards Compliance

ANSI/TIA 568 D.3
ISO/IEC 11801

ZORA OM2 Multimode Dual Core coupler LC-LC Features

adopts high precision zirconia to ensure good physical bearing capacity and plugging performance;
good compatibility, small fiber concentricity error;
excellent plugging life (times);
low insertion loss, high reliability and stability;
offers a wide range of model classifications: FC, SC, ST, LC, MTRJ, MU, and so on.

Product Applications

Fiber Optic Communications;
Regional, Wide Area & Global Networks;
High Electromagnetic Interference (EMI / RFI) environments;

Ordering Information
Product Number	Product Name	Shuttering	Mode Type	Adapter Color
ZRG5202	Multimode Dual Core Coupler LC-LC	Unshuttered	OM2	Beige
ZRG5203	Multimode Dual Core Coupler LC-LC	Unshuttered	OM3	Wathet
ZRG5204	Multimode Dual Core Coupler LC-LC	Unshuttered	OM4	Purple
ZRQ5201	Multimode Dual Core Coupler LC-LC	Unshuttered	OS2	Blue

Technical specification

Mode Type	OM2
Ferrule Diameter	1.25mm
Number of Insertions	≥ 500
Connection Type	LC female
Protection Rating	IP20
Ambient Temperature (Operating)	-40°C ~ +80°C
Ambient Temperature (Storage)	-40°C ~ +85°C
Number of Fiber Optics	2Fiber
Shell Material	Plastics
Ferrule Material	Zirconia Ceramics
Insertion Loss	≤0.2dB
Return Loss (dB) Singlemode	≥ 30dB
Return Loss (dB) Multimode	≥ 45 dB

ZORA OM2 Multimode Dual Core Coupler LC-LC FAQ

1.What is an OM2 Multimode Duplex LC-LC Coupler?

It‘s a fiber optic connector designed for OM2 multimode fiber, featuring duplex (dual-core) LC interfaces to join two fibers for efficient signal transmission.
