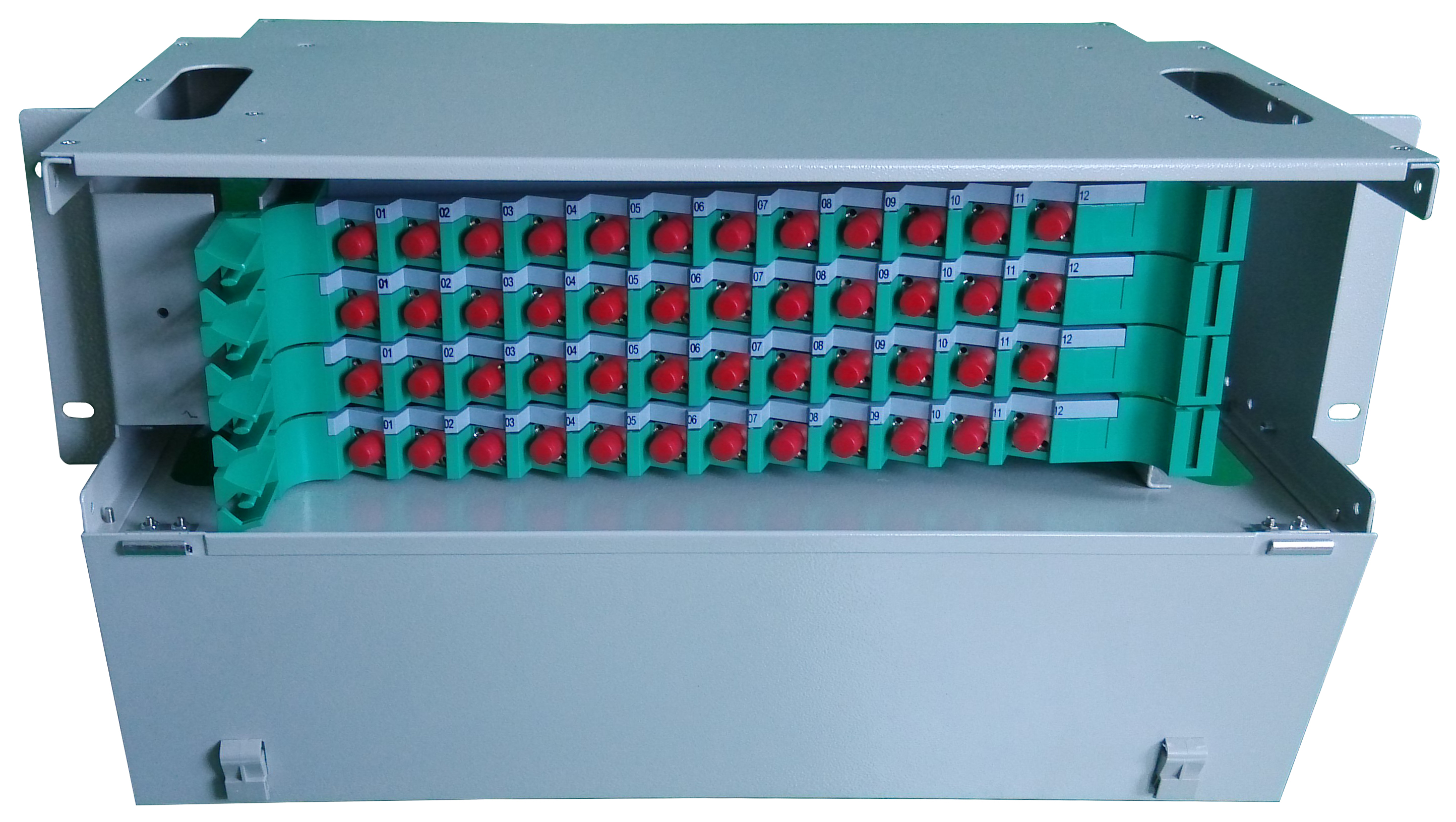

ZRD6072-SC
ZORA
Product Description
1、The use of high-quality thickened cold-rolled steel plate, no light delicate, frosted texture, uniform electrostatic surface spraying process;
2、It is suitable for cabinet installation, the distribution frame ear stalls are flexible, convenient for the installation of non-standard dimensions, strong applicability;

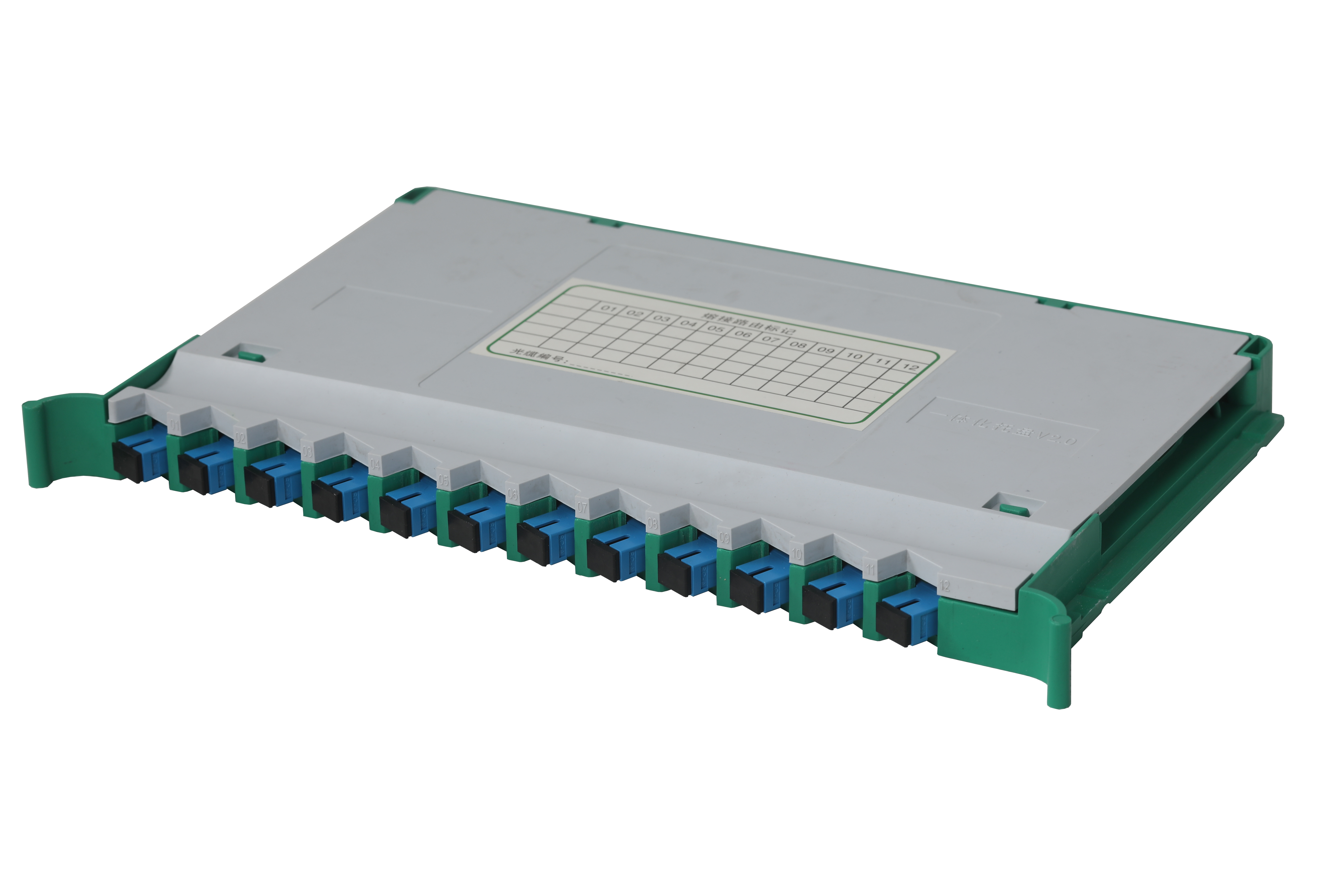

3、Configuration of thickened fusion fiber tray, size specification, the use of new ABS material production, high temperature resistance;
4、Latch widening, fingers can completely buckle the lock eye, easy to open without effort;
5、The guide rail upgrade and backplane completely match, effectively avoid breakage during transportation;
6、Into the cable hole redesign, support multi-cable into.
Suitable for 19-inch standard cabinet installation;
Telecommunications, Fiber-to-the-Home (FTTH), Local Area Network (LAN), Wide Area Network (WAN), Cable Television (CATV).
Ordering Information | ||||
Product Model | Product Name | Adapter Type | Adapter Mode | Quantity |
ZRD6012-SC | 12-port SC ODF Fiber Optic Patch Panel | 12* simplex SC | OS2 | 10 |
ZRD6024-SC | 24-port SC ODF Fiber Optic Patch Panel | 24* simplex SC | OM2 | 10 |
ZRD6048-SC | 48-port SC ODF Fiber Optic Patch Panel | 48* simplex SC | OM3 | 10 |
ZRD6072-SC | 72-port SC ODF Fiber Optic Patch Panel | 72* simplex SC | OM4 | 10 |
Composition | |
Body | |
Material | Adopting high-quality thickened cold-rolled steel plate |
Face | Off-white (baked enamel); frosted; |
Thicknesses | Front bezel 1.9mm Ears 1.59mm Chassis 1.34mm |
Fiber Optic Discs and Accessories | |
fusion fiber tray | Using new ABS material to produce fusion fiber tray 1pcs-8pcs |
Parts | 1 pigtail protection tube; mounting screws; 2 sets of fiber optic cable fasteners |
Port | Sizes | Weights | Includes accessories |
12 ports | 430*250*50mm | 3.45KG | Fusion Fiber Tray 1pc; Pigtail Protection Tube 1pc; Mounting Screws; Fiber Fixing Buckle 1set |
24 ports | 430*250*80mm | 4.74KG | Fusion Fiber Tray 2pcs; Pigtail Protection Tube 1pc; Mounting Screws; Fiber Fixing Buckle 1set |
48 ports | 430*250*132mm | 6.09KG | Fusion Fiber Tray 4pcs; Pigtail Protection Tube 1pc; Mounting Screws; Fiber Fixing Buckle 2set |
72 ports | 430*250*188mm | 7.62KG | Fusion Fiber Tray 6pcs; Pigtail Protection Tube 1pc; Mounting Screws; Fiber Fixing Buckle 2set |
96 ports | 430*250*244mm | 9.95KG | Fusion Fiber Tray 8pcs; Pigtail Protection Tube 1pc; Mounting Screws; Fiber Fixing Buckle 2set |
ZORA ODF Fiber Optic Patch Panel FAQ
The ZORA ODF Fiber Optic Patch Panel is a standardized fiber management unit for connecting, distributing, and organizing fiber links. It supports LC, SC, and MPO interfaces, compatible with single-mode (OS2) and multimode (OM3/OM4/OM5) fibers, ideal for high-density cabling in data centers, telecom rooms, and enterprise networks.
Data Centers: Fiber links between core and edge switches.
Telecom Networks: Distribution of backbone cables to end-users.
Enterprise Networks: Inter-building or cross-floor fiber backbones.
5G Systems: Managing fronthaul and backhaul optical links.
Ports: LC, SC, ST, FC, etc.
Insertion Loss: ≤0.2dB (LC/SC), ≤0.35dB (MPO).
Rack Mount: 19-inch standard rack.
Steps:
Mount the panel to the rack with level alignment.
Install adapter modules.
Terminate fibers to adapters, leave slack loops.
Route cables through guides and label ports.
Precautions:
Maintain bend radius ≥30mm; avoid sharp bends.
APC adapters require APC patch cords (green connectors).
Cleaning: Clean adapters with fiber pens or alcohol swabs.
Testing: Check loss with OTDR or optical power meters.
Labeling: Update labels for accurate port mapping.
Repairs: Replace damaged adapters or splice faulty fibers.
