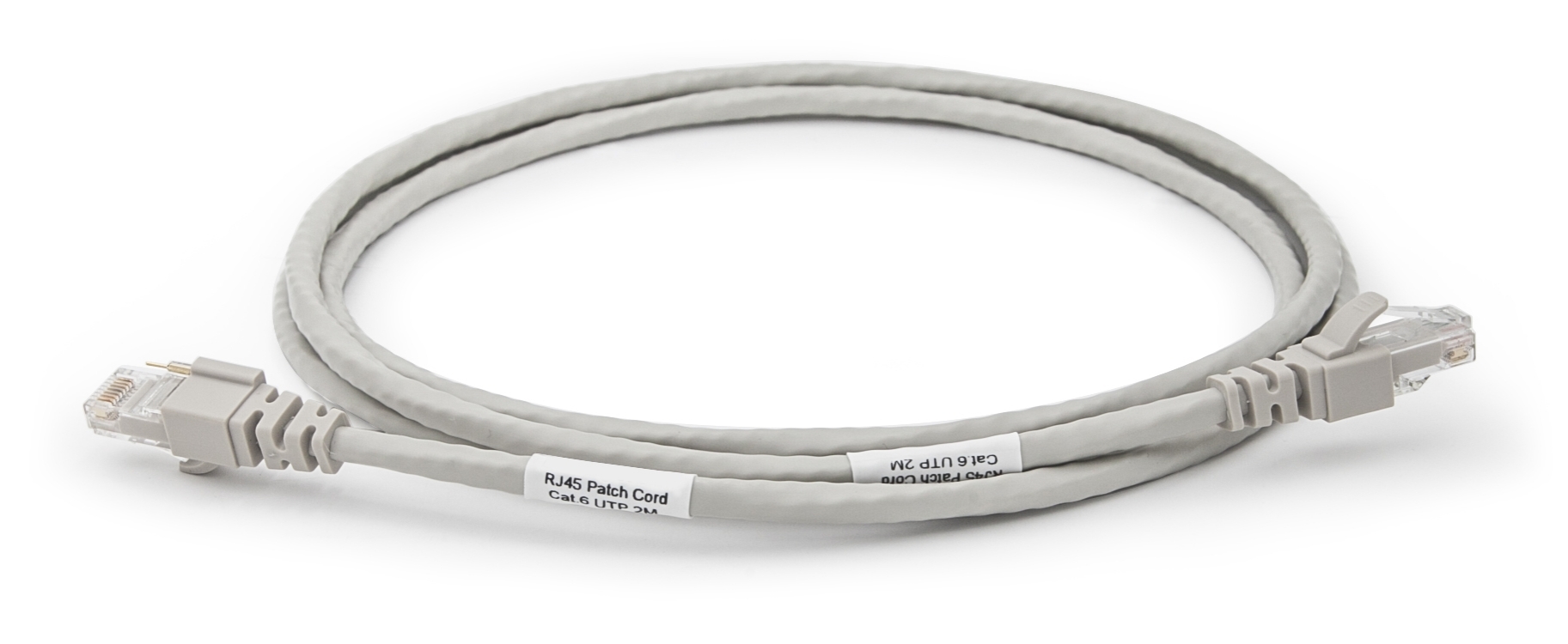

ZORA Copper Intelligent Patch Cord

ZORA copper intelligent patch cords, used in data centers and computer room management system products, its main role is to connect the signal transmission between the intelligent distribution frame and other equipment, intelligent patch cords with automatic tracking and management functions. Application Scenario: Data center and building wiring system link management and port management, to improve network maintenance and management efficiency.

Model:
ZRJ2001
Brand:
ZORA

Availability:



Inquire

Product Description

ZORA Copper Intelligent Patch Cord Description

ZORA copper intelligent patch cords, used in data centers and computer room management system products, its main role is to connect the signal transmission between the intelligent distribution frame and other equipment, intelligent patch cords with automatic tracking and management functions. Application Scenario: Data center and building wiring system link management and port management, to improve network maintenance and management efficiency.

Standards Compliance

ANSI/TIA 568.2-D
ISO/IEC 11801

ZORA Copper Intelligent Patch Cord Features

1Copper smart patch cable with conventional RJ-45 connectors at both ends, in addition to the addition of an inductive probe pin inside the connector, i.e. 9-core patch cable；

2Intelligent patch cords all meet and fulfill the requirements of Ultra Category 5/Category 6/Ultra Category 6 performance；

3100% tested at the factory and easily identifiable by color for data signals；

4Transmission of information over 4 pairs of twisted pair cable, additional pin 9 for scanning signals.

Ordering Information
Product Number	Product Name	outer sheath	Color	Length	Connection Type
ZRJ2001	ZORA copper intelligent patch cord	PVC	yellow	1.0m	T568B
ZRJ2002	ZORA copper intelligent patch cord	PVC	yellow	2.0m	T568B
ZRJ2003	ZORA copper intelligent patch cord	PVC	yellow	3.0m	T568B
Jumper length and color can be customized according to customer requirements

Technical Specifications

Structure
Optoelectronics
Making	Pure copper (multi-strand)
Wire gauge	24AWG
Isolate
Makings	High Density Polyethylene
Thickness	Not less than0.59mm
Diameter	1.00 ± 0.03mm
Color	White-blue-blue / White-orange-orange / White-green-green / White-brown-brown
Sleeve
Makings	PVCorLSZH
Thickness	0.59mm
Diameter	6.0±0.2mm
Color	Available in a variety of colors and can be customized
Fire rating	CM Rating
Maximum tensile strength	1.05 kg/mm2

ZORA Copper Intelligent Patch Cord FAQ

1.What is ZORA Copper Intelligent Patch Cord?

ZORA Copper Intelligent Patch Cord is an Ethernet connection cable with an integrated one-core inductive probe pin, supporting Cat6/Cat6a/Cat7 standards, which allows real-time monitoring of ports and feedback of status via LED indicators or management platforms, suitable for intelligent cabling scenarios.

2.What is the core difference between ZORA Copper Intelligent Patch Cord and regular patch cords?

ZORA Copper Intelligent Patch Cord and regular patch cord can automatically identify the port connection status through the ninth core scanning signal, realizing real-time link monitoring and management; whereas regular patch cords only provide physical connection, requiring manual recording and troubleshooting.

3.What scenarios is this jumper cable suitable for?

It is suitable for high-density cabling in data centers, enterprise network operation and maintenance, financial securities and other high-reliability requirements of the scene, especially suitable for the need to quickly locate faults, automated management of intelligent network environments.

4.Do I need special tools or skills for installation?

The basic installation is similar to ordinary patch cords, but the intelligent function needs to be used with special management software and intelligent distribution frame, and the first deployment is recommended to be debugged by professional technicians.
