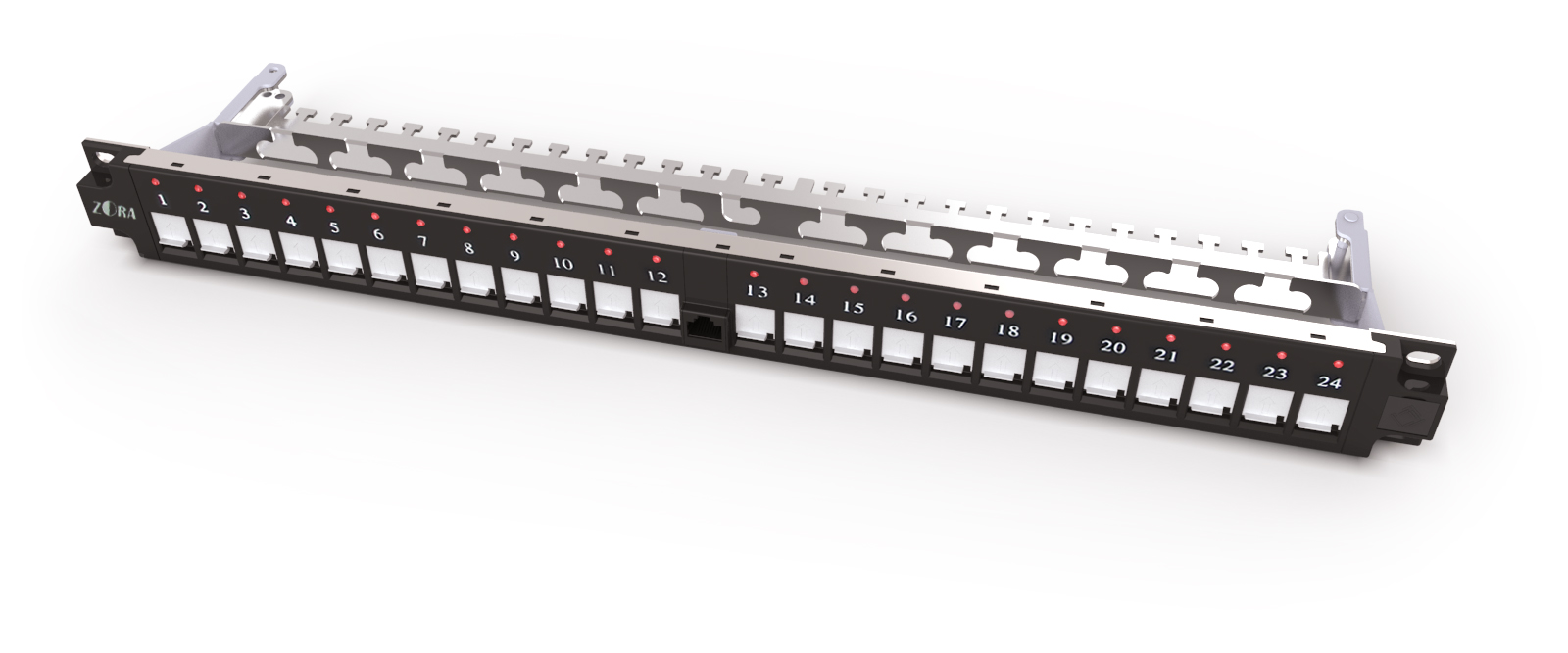

ZORA Copper Intelligent Distribution Frame

ZORA Intelligent Distribution Frame, also known as Intelligent Cabling Management System, is a system that globally manages the entire comprehensive cabling system with the intelligent distribution frame monitoring port as the entry point. The system can monitor the real-time connection of the jumped links, and analyze, process and archive the monitored data. The system is very suitable for use in data centers with relatively complex network structures, as well as in telecommunication and equipment rooms in various commercial buildings for network system management.

Model:
ZRDD2124
Brand:
ZORA

Availability:



Inquire

Product Description

ZORA Copper Intelligent Distribution Frame Description

ZORA Intelligent Distribution Frame, also known as Intelligent Cabling Management System, is a system that globally manages the entire comprehensive cabling system with the intelligent distribution frame monitoring port as the entry point. The system can monitor the real-time connection of the jumped links, and analyze, process and archive the monitored data. The system is very suitable for use in data centers with relatively complex network structures, as well as in telecommunication and equipment rooms in various commercial buildings for network system management.

Standards Compliance

ANSI/TIA 568.2-D
ISO/IEC 11801

ZORA Copper Intelligent Distribution Frame Features

1、In the traditional distribution frame integrated electronic sensor system and LED indication system, electronic sensor system through the network scanner to receive instructions from the management software, and LED light form display, at the same time, the instructions required port information feedback to the management software;

2、Each port with LED indicator, can indicate the increase, movement, change, illegal access, jumper off, etc. of the port through the LED indicator;

3、Front dust door design, rear with cable management support frame;

4、With port sensor, can sense the insertion and removal of jumper cables (port type, link type);

5、With link sensor, can sense the interruption of the link and the change of jumpers during power failure (link type);

6、Front dust door design, rear with cable management support frame;

7、Modular design, according to the actual needs of the configuration of the appropriate module.

Ordering Information
Product Number	Product Name	Color	Ports	Qty / Box	Qty / CTN
ZRDD2124	ZORA Copper Intelligent Distribution Frame	Black	24	1	12

Technical Specifications

Structure
Main part
Body Material	Adoption of high-quality SPCC cold-rolled steel plate
Body Surface	The surface has been sprayed with special treatment, which is strong, beautiful and not easy to be scratched.
Leading end
Front	LED indicators and dust caps for each port
Back end
Rear Part	Straight cable management bracket on the back for bundling and cable management, effectively reducing cable tension

Physical property
Working environment temperature	-40℃～+70℃
Specification	Standard 19-inch rack mount, height：1U
Installation	Modular design for quick installation of ZORA modules

ZORA Copper Intelligent Distribution Frame FAQ

1: What is the core function of this copper intelligent distribution frame?

Intelligent Management: Real-time port monitoring (connectivity, link quality) with automated cabling logs.
Remote Control: Enable/disable ports via web/API; alerts via email/SMS.
Resource Optimization: Analyzes port utilization and faults for capacity planning.
