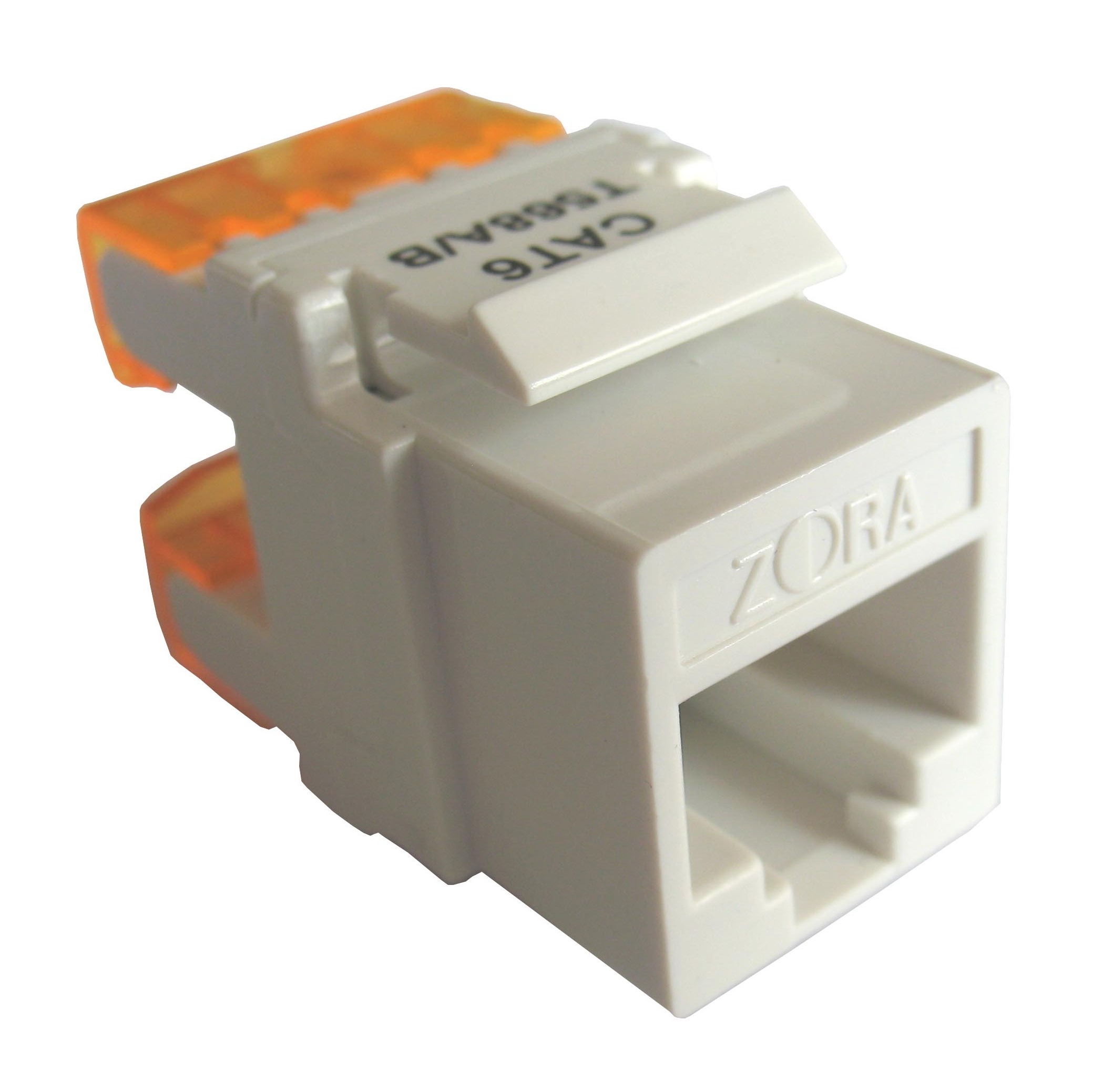

ZORA Cat 6 Unshielded Module

ZORA Cat 6 unshielded modules are used in data network communication, telecommunication room, with information outlet panel or desktop box, etc. in the work area.

Model:
ZRM2012
Brand:
ZORA

Availability:



Inquire

Product Description

ZORA Cat 6 Unshielded Module Description

ZORA Cat 6 unshielded modules are used in data network communication, telecommunication room, with information outlet panel or desktop box, etc. in the work area.

Standards Compliance

ANSI/TIA 568.2-D
ISO/IEC 11801

ZORA Cat 6 unshielded module Features

1Designed according to international standards ISO/IEC11801, ANSI/TIA-568-2.D, with excellent performance and reliability;

2The surface of 8 gold needles in the module is gold-plated as a whole, which ensures to reach the minimum contact resistance and the longest service life;

3The transmission bandwidth can reach 250MHz, support Gigabit Ethernet data transmission;

4Special internal and external design, the internal gold needle cross structure makes the elasticity is very good, even if the user frequently connects and plugs, but also can maintain good contact;

5External blue-white, orange-white inlay design, has a good visual effec

Ordering Information
Product Number	Product Name	Orientation	Color	Qty / Box	Qty / CTN
ZRM2012-1	Cat.6 180 Cat 6 unshielded module	Vertical	Orange	100	600
ZRM2012-2	Cat.6 180 Cat 6 unshielded module	Vertical	wathet	100	600
ZRM2012-3	Cat.6 180 Cat 6 unshielded module	Vertical	white	100	600

Technical Specifications

Construction
Body
Connector Housing	High-impact, Flame Retardant Plastic
Standard	UL94V-0 rated
Front Connection
Contact Type	Spring Wire
Material	Phosphor Bronze Alloy
Contact Plating	Nickel plated 100μinch, then gold plated 50μinch
Rear Terminals
Terminal Type	IDC
Material	Phosphor Bronze Alloy with 100 micro-inch 100% Sn Alloy

Physical Ranges
Temperature Range	Storage -40℃～+70℃, working -10℃～+60℃.
Relative Humidity	Operational : Max. non-condensing 93%
Insertion/Extraction Life	≥750
No. of IDC Terminations	≥200
Insertion/Extraction Strength	≥800grams
Retention	50N (11 Ibs) for 60s ± 5s

Electrical
Insulation Resistance	500 MΩ min.@ 100V d.c
Dielectric strength (core-to-core, 1 min DC)	1kV
Flexible wire contact resistance	20 mΩ max.
Rated voltage/current	150VAC/1.5A
IDC Contact Resistance	2.5 mΩ max.

Cat 6 Unshielded Module FAQ

1.What is the ZORA Cat6 Unshielded Module?

The ZORA Cat6 Unshielded Module is an RJ45 interface module designed for unshielded twisted-pair (UTP) cabling. Compliant with Cat6 (TIA/EIA-568-C.2) standards, it supports Gigabit Ethernet (1Gbps) and short-range 10Gbps transmission. Its modular design fits standard patch panels or outlets for flexible networking.

2.What are the key applications?

Office Networks: Workstation outlets or patch panel terminations.

Home Wiring: Smart TVs, NAS device connectivity.

Surveillance Systems: IP camera and NVR terminations.

Education: Classroom multimedia device networking.

3. What are the technical specifications?

Standards: ANSI/TIA 568.2-D, ISO/IEC 11801.

Bandwidth: 250MHz (supports 10Gbps up to 55 meters).

Port Type: RJ45 (8P8C).

Cable Support: Cat6 UTP (23AWG or 24AWG).

Installation: Punch-down or tool-less push-in.

4.How does it differ from Cat5e modules?

Parameter	ZORA Cat6 Module	Cat5e Module
Bandwidth	250MHz	100MHz
10Gbps Support	Up to 55 meters	Not supported
Wire Gauge	23AWG or 24AWG	24AWG only
Cost	20-30% higher	Low
