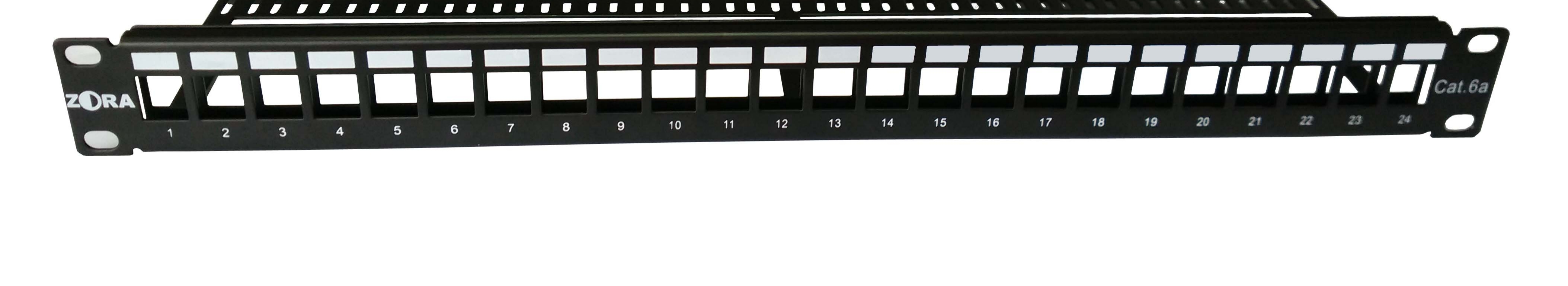

ZORA 24-port Cat 6A Unshielded Modular Patch Panel Description

ZORA 24-port Cat 6A unshielded modular patch panel is used for data network communication, patch cord connection of wiring devices, the main distribution room and each distribution room applications.

Standards Compliance

• ANSI/TIA 568.2-D

• ISO/IEC 11801




ZORA 24-port Cat 6A Unshielded Modular Patch Panel Features

1Made of cold rolled steel plate, with plastic spraying surface treatment, beautiful and generous;

2Modularized design, suitable for quick installation of modules;

3Piano key type cable management bracket, for bundling cable management, effectively reduce cable tension;

4Front intuitive grouping labeling, to the network management, maintenance provides convenience;

5It can be directly installed in 19″ standard cabinet, wall-mounted cabinet, etc..

Technical Specifications

1: What is the ZORA 24-port Cat 6A Unshielded Modular Patch Panel?

This is a high-density unshielded modular patch panel designed for Cat 6A UTP cables, supporting 10Gbps networks. Its modular design allows flexible module replacement, ideal for data centers and enterprise cabling.

2: What are the maximum speed and distance supported?

 With Cat 6A cables, it supports 10Gbps Ethernet up to 100 meters, compliant with TIA/EIA-568-C.2 standards (500MHz bandwidth).

3: Does it require grounding? Any installation tips?

 No grounding needed. Maintain cable twists (untwist ≤13mm) and install in a standard 19-inch rack with proper ventilation.

4: Is it compatible with Cat 5e or Cat 6 cables?

 Yes, but performance depends on installed modules. For example, Cat 6 modules limit the link to Cat 6 specs (10Gbps up to 55m).

5: What are the benefits of modular design?

Modules can be replaced individually, reducing maintenance costs. Label slots and front/rear cable routing options enhance organization.

6: How to verify performance compliance?

Use professional testers (e.g., Fluke DSX-8000) to check insertion loss and NEXT. Basic continuity testers can troubleshoot connectivity issues.

7: Does it support PoE?

 Yes. Gold-plated contacts support PoE++ (60W), suitable for IP cameras, Wi-Fi APs, and other powered devices
