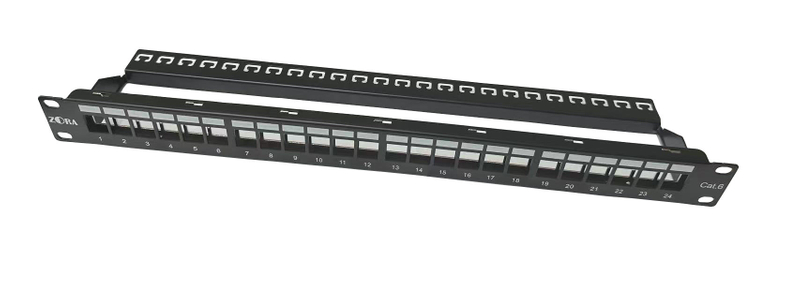

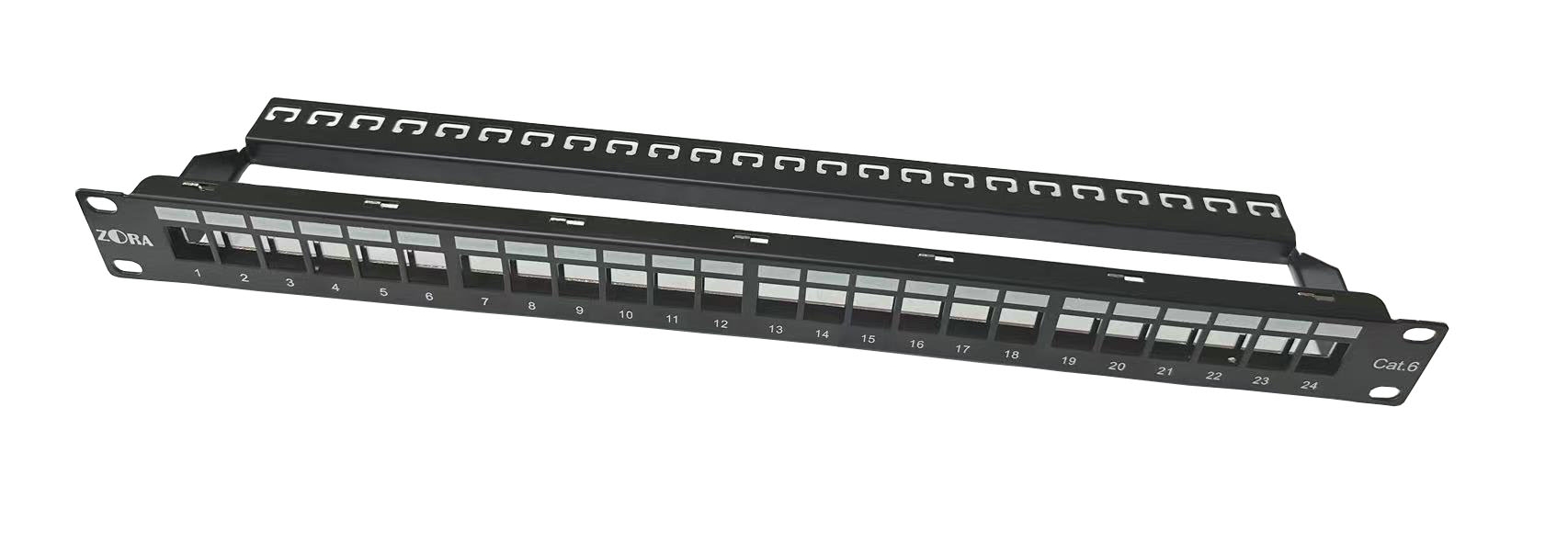

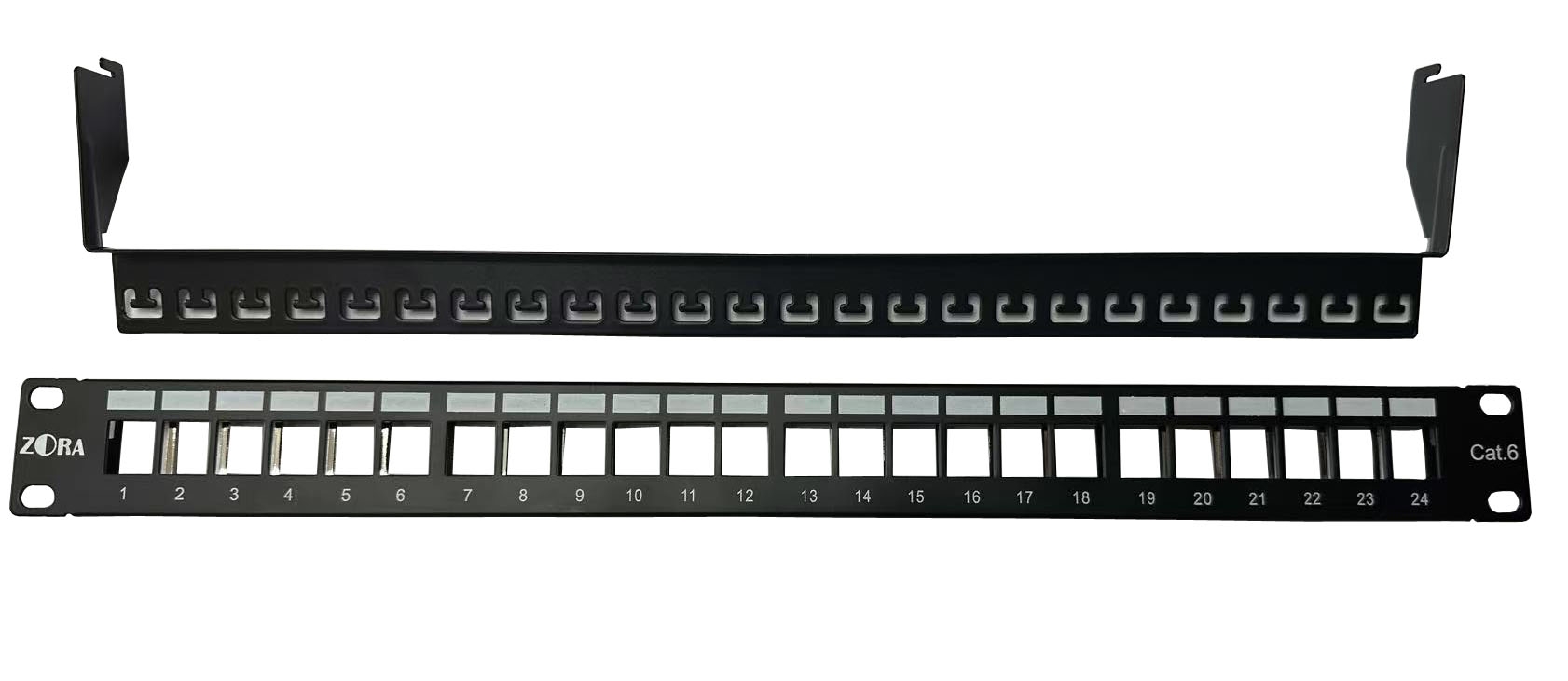

ZORA 24-port Cat 6 Unshielded Modular Distribution Frame Description

ZORA 24-port Cat 6 Unshielded Modular Distribution Frame applied to data network communications, modular patch cords connecting device device, the main wiring room and the distribution of each application. 19-inch rack-mountable, using all-steel plate overall structure, to ensure that the product higher mechanical strength. Modular design, easy to install and maintain, each module can be individually removed and replaced, easy to terminate and maintain.

Standards Compliance

• ANSI/TIA 568.2-D

• ISO/IEC 11801

ZORA 24-port Cat 6 Unshielded Modular Distribution Frame Features

1Made of cold rolled steel plate, with plastic spraying surface treatment, beautiful and generous;

2Modularized design, suitable for quick installation of modules;

3Piano key type cable management bracket, for bundling cable management, effectively reduce cable tension;

4Front intuitive grouping labeling, to the network management, maintenance provides convenience;

5It can be directly installed in 19″ standard cabinet, wall-mounted cabinet, etc..

Technical Specifications

1.What is the ZORA 24-Port Cat6 Unshielded Modular Distribution Frame?

The ZORA 24-Port Cat6 Unshielded Modular Distribution Frame is a rack-mounted device for structured cabling, supporting 24 RJ45 ports and Cat6 UTP cables. Its modular design enables flexible network configuration, ideal for data centers, enterprise server rooms, and office networks.

2.What are the key applications?

Data Centers: Patch cable management between switches and endpoints.

Enterprise Networks: Centralized connectivity for office workstations.

Security Systems: Standardized cabling for IP cameras and NVRs.

Education: Network integration for classroom multimedia devices.

3.What are the technical specifications?

Standards: TIA/EIA-568-C.2, ISO/IEC 11801.

Bandwidth: 250MHz (supports 10Gbps up to 55 meters).

Ports: RJ45 (compatible with Cat5e/Cat6 modules).

Mounting: 19-inch rack (1U height).

Cable Management: Built-in cable guides and label strips.

4. How does it differ from shielded distribution frames?

5.Installation and configuration steps?

Rack Mounting: Install the frame into a 19-inch rack (1U space).

Module Installation: Insert and lock Cat6 RJ45 modules.

Cable Termination: Punch down cables per T568A/B standards.

Cable Management: Organize patch cables with guides and labels.

6.Maintenance and upgrade options?

Maintenance: Clean ports periodically and check cable connections.

Upgrades: Replace modules with Cat6A or fiber modules (if compatible).

Scalability: Cascade multiple frames for port expansion.
