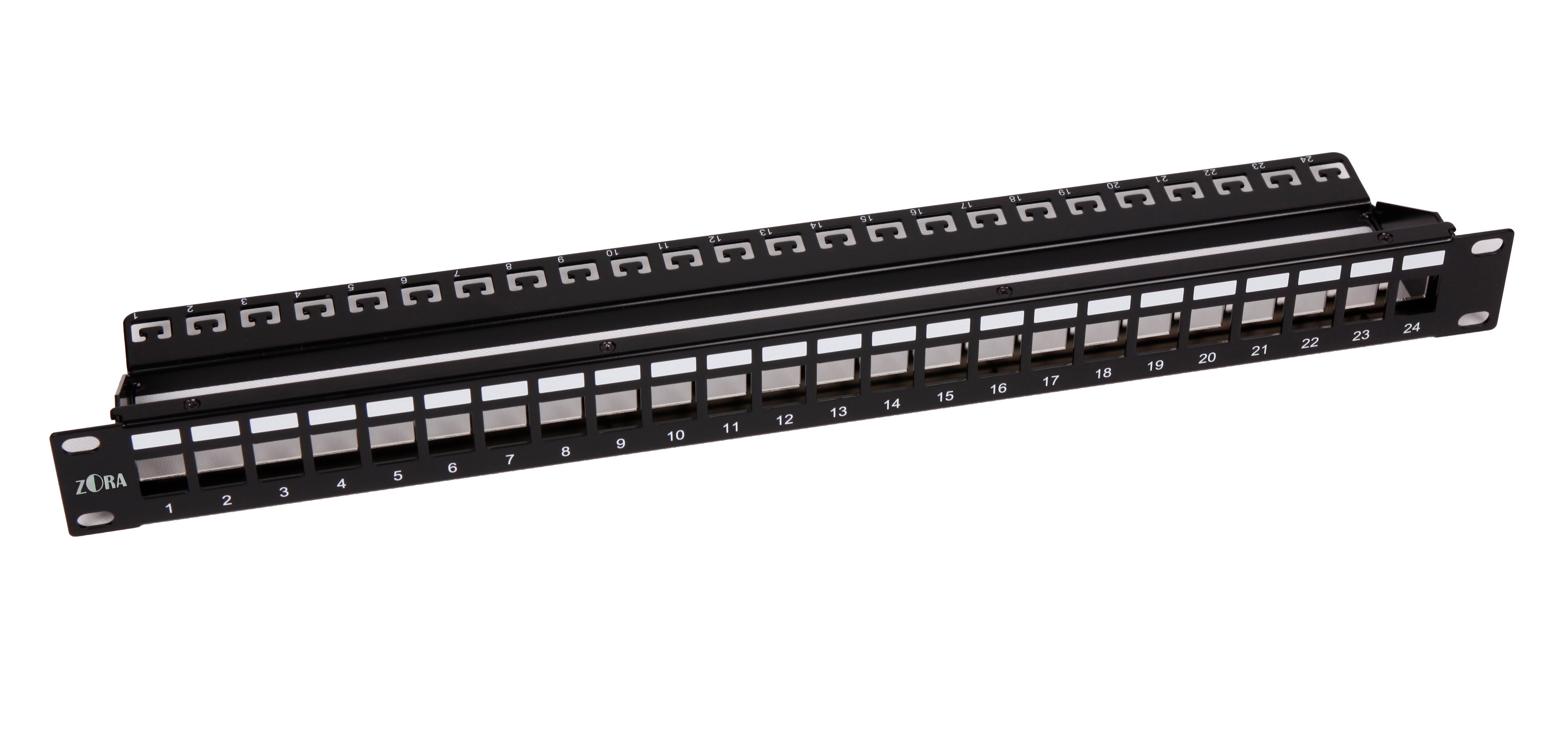

ZORA 24-port Cat 6 Shielded Modular Patch Panel

ZORA 24-port Cat 6 Shielded Modular Patch Panel applied to data network communications, modular patch cords connecting device device, the main wiring room and the distribution of each application.

Model:
ZRDB2224
Brand:
ZORA

Availability:



Inquire

Product Description

ZORA 24-port Cat 6 Shielded Modular Patch Panel Description

ZORA 24-port Cat 6 Shielded Modular Patch Panel applied to data network communications, modular patch cords connecting device device, the main wiring room and the distribution of each application. 19-inch rack-mountable, using all-steel plate overall structure, to ensure that the product higher mechanical strength. Modular design, easy to install and maintain, each module can be individually removed and replaced, easy to terminate and maintain.

Standards Compliance

ANSI/TIA 568.2-D
ISO/IEC 11801

ZORA 24-port Cat 6 Shielded Modular Patch Panel Features

1The back of the SPCC metal cable management tray, for bundling, cable management, to avoid cable and module termination force caused by loose connections;

2Bracket with grounding terminals for shielding good grounding, ground resistance is less than 1Ω;

3Front intuitive grouping labeling area, for writing labels to provide easy management;

4Directly used in 19-inch standard cabinets, racks, wall cabinets and so on;

5The use of high-quality cold-rolled steel plate, the surface of the plastic spraying special treatment, strong, beautiful, not easy to scratch.

6Operating temperature: -10℃～60℃.

Ordering Information
Product Number	Product Name	Color	Ports	Qty / Box	Qty / CTN
ZRDB2224	1U 24-port Cat 6 Shielded Modular Patch Panel	Black	24	1	12

Technical Specifications

Construction
Body
Body Material	Adoption of high-quality SPCC cold-rolled steel plate
Body Surface	The surface has undergone special spray coating treatment, which is sturdy, beautiful, and not easily scratched
Front
Front Label	Positive and intuitive grouped labeling area provides easy management of written labels
Rear
Rear Tray	Straight cable management bracket on the back for bundling and cable management, effectively reducing cable tension

Physical Ranges
Operating Temperature	-20℃～+70℃ to meet the requirements of 48 hours of salt spray test
Norm	Standard 19” rack mount, height: 1U
Mounting	Modular design for quick installation of ZORA modules
Earth Resistance	Bracket with ground terminal, good grounding for shielding, ground resistance less than 1Ω

ZORA 24-port Cat 6 Shielded Modular Patch Panel FAQ

1. What is the ZORA 24-Port Cat6 Shielded Modular Patch Panel?

The ZORA 24-Port Cat6 Shielded Modular Patch Panel is a rack-mounted device designed for high EMI environments. It features 24 shielded RJ45 ports with metal shielding (F/UTP or S/FTP), compliant with Cat6 standards. Ideal for data centers, industrial facilities, and networks requiring high signal integrity.

2.What are the key applications?

Industrial Automation: Wiring near motors and inverters in factories.

Medical Systems: Data transmission in MRI rooms and operating theaters.

Data Center Core: Shielded cabling in high-density racks.

Transportation Control: Subway signal rooms and airport communication hubs.

3.What are the technical specifications?

Standards: TIA/EIA-568-C.2, ISO/IEC 11801.

Shielding: F/UTP (overall foil) or S/FTP (foil per pair + braid).

Bandwidth: 250MHz (supports 10Gbps up to 55 meters).

Mounting: 19-inch rack (1U height), front/rear access.

Grounding: Requires grounding wire to rack terminal.

4. How does it differ from unshielded patch panels?

Parameter	ZORA Cat6 Shielded	Unshielded Panel
EMI Resistance	High (30-50dB reduction)	Low (relies on twisting)
Environment	Factories, medical, data centers	Offices, general server rooms
Installation	Complex (grounding required)	Simple
Cost	40-60% higher	Moderate
